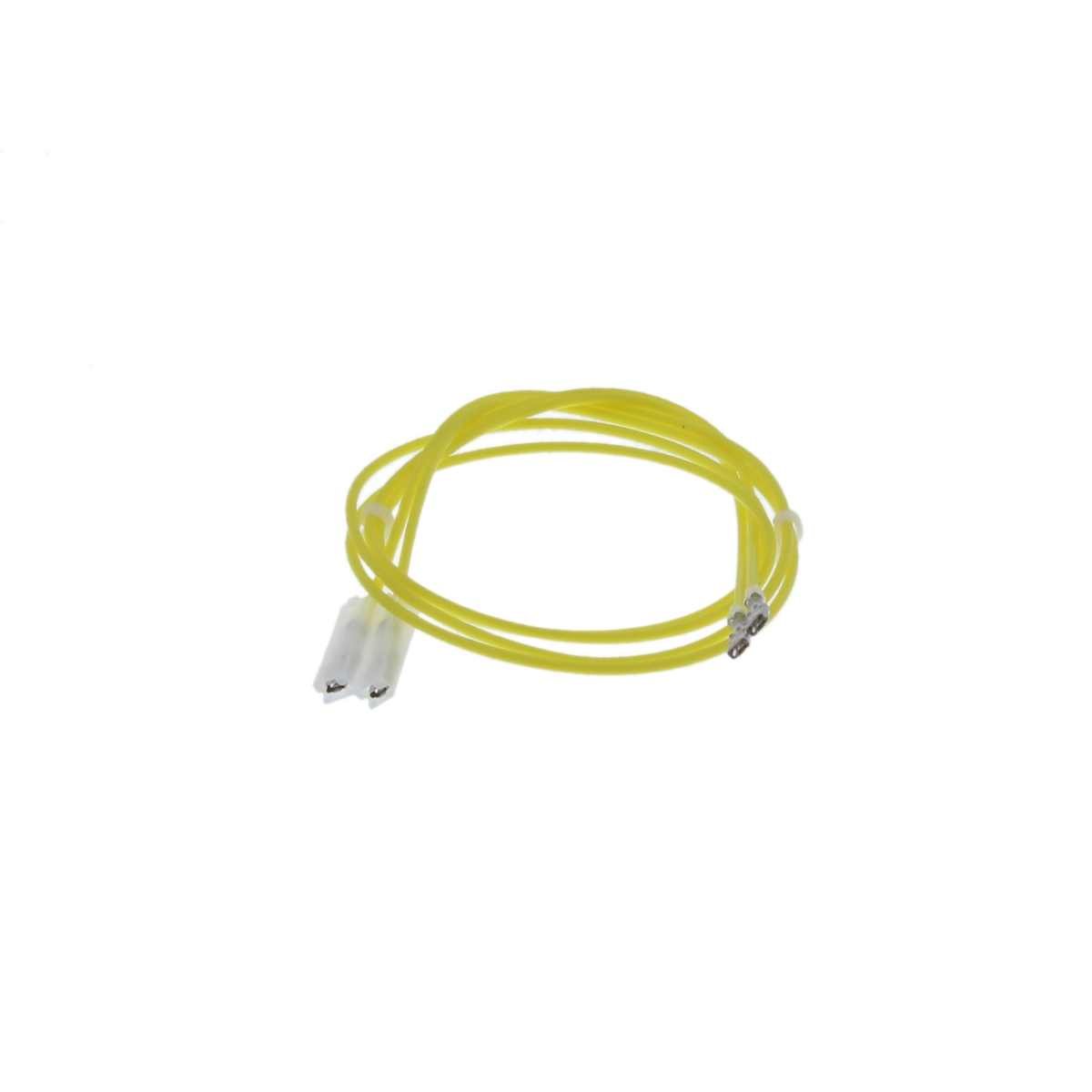

Worcester Bosch Wiring Harness Ignition Assembly 87161202360
At a glance
- Part type: Wiring harness / ignition assembly
- Appliance family: Worcester Bosch SBI and RSF
- Also known as WB87161202360, 1015865
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
AvailabilityCall for price
Availability: no longer made. Call us and we'll check for stock.
No longer made: call us
The manufacturer has discontinued this part. Our team will check for remaining stock or a suitable replacement.
01302 279234Opening hours
- Mon–Fri
- 7:30am–5pm
- Sat
- 9am–12pm
- Sun
- Closed
Or request a price online
Tell us what you need and we will come back to you. No payment is taken.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161202360 is a wiring harness and ignition assembly used across a number of Worcester Bosch SBI and RSF appliances. It carries the electrical connections between the boiler's control components and the ignition electrode, delivering the spark that lights the burner. The assembly is supplied as a complete harness with its ignition lead and connectors.
Signs this part needs replacing
- The boiler fails to light, or lights only intermittently, with no spark at the ignition electrode
- Repeated ignition lockouts or fault codes linked to ignition or flame detection
- Visible damage to the harness, such as cracked insulation or scorched, brittle wiring near the electrode
- Loose, corroded or heat-damaged connectors at the electrode or control board
- The harness is found to be heat-damaged when the appliance is serviced
Before you order
- Check the appliance GC number and model against the compatibility list, as this harness is used across several SBI and RSF variants.
- Confirm the part number 87161202360 on the existing harness or in the appliance documentation before ordering.
- This part has been discontinued by the supplier with no alternative product listed.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Wiring harness / ignition assembly |
|---|
Compliance
| Manufacturer part number (MPN) | 87161202360 |
|---|---|
| GC number | E01-598 |
| Barcode / EAN | 4010009760672 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87161202360, 1015865 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 15 SBI NG | 41-311-43 | 41-311-43 | — | — |
| WORCESTER 24 SBI RSF NG | 41-311-44 | 41-311-44 | — | — |
| WORCESTER 24i RSF COMBI NG (NOV 2004) | 47-311-37 | 47-311-37 | — | — |
| WORCESTER 24i RSF COMBI NG (SEP 2001) | 47-311-37 | 47-311-37 | — | — |
| WORCESTER 28i RSF NG | 47-311-54 | 47-311-54 | — | — |
