Worcester Bosch Wiring Harness High Voltage 8716117074

Worcester Bosch

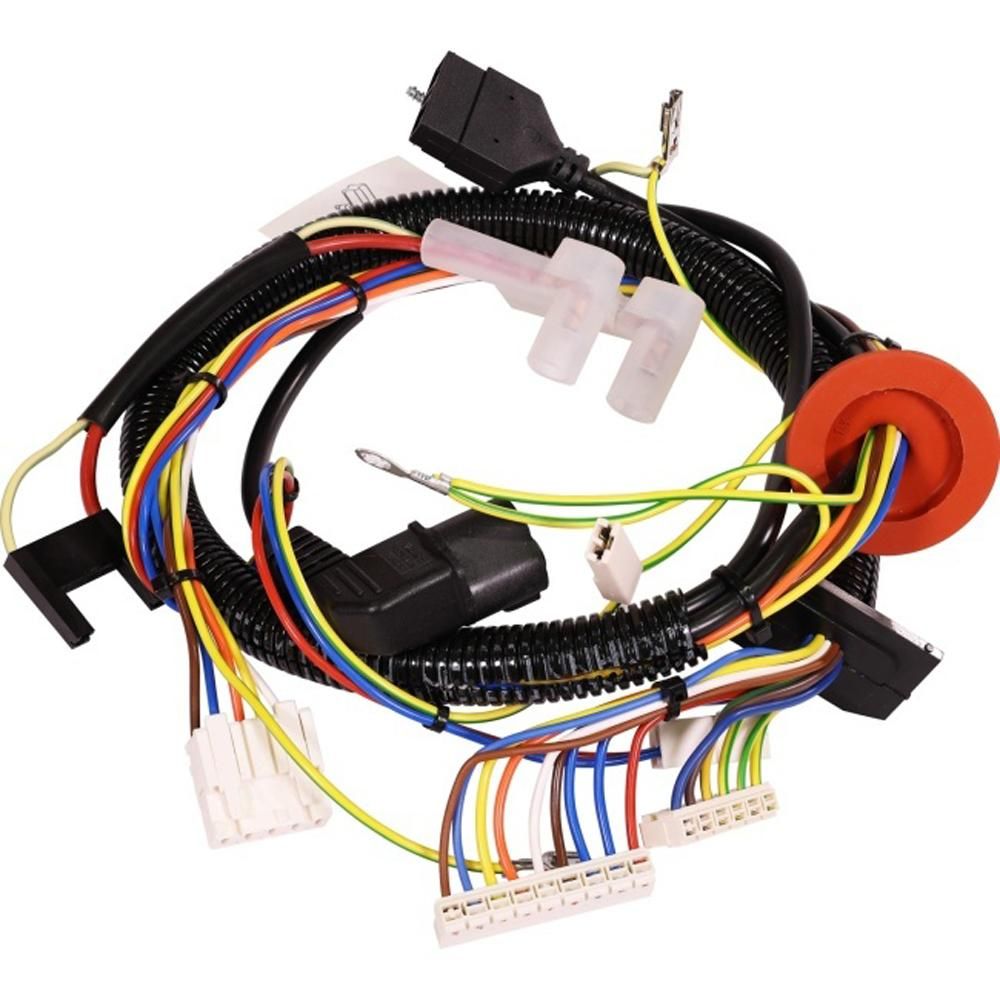

Worcester Bosch Wiring Harness High Voltage 8716117074

Worcester Bosch 8716117074 high voltage wiring harness for Greenstar i ErP System boilers, carrying mains-side connections within the appliance.

At a glance

  • Part type: Wiring
  • Also known as 1031089
  • This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Manufacturer part no.
8716117074
GC number
J25-261
Showing prices

£58.99

£49.16 ex. VAT · VAT at 20%

Available to order · 3 working days (HRP Trade)
Available to order · 3 working days (HRP Trade)
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.

Same-day dispatch

Ordered by 4pm Mon–Fri, 10:30am Sat.

30-day returns

Unused, in original packaging.

What it is

The Worcester Bosch 8716117074 is a high voltage wiring harness used inside Worcester Bosch Greenstar i ErP System gas boilers. It carries the mains-side electrical connections between the boiler's control components, so the appliance's ignition, fan and pump circuits receive power and switching signals as intended. As a factory-specified loom, it plugs into the existing connector points on the boiler without modification.

Signs this part needs replacing

  • The boiler fails to fire or cuts out intermittently with no obvious mechanical cause
  • Fault codes relating to power supply, fan or ignition appear and clear at random
  • Visible heat damage, brittle or cracked insulation on the loom
  • Loose, corroded or discoloured spade and plug connectors
  • Continuity testing shows an open circuit or intermittent break in a conductor

Before you order

  • Check the GC number and appliance serial plate to confirm the harness matches your boiler variant
  • Confirm the existing harness carries the number 8716117074 or the alternative number 1031089 before ordering
  • Inspect the connector housings and any seals disturbed during removal, and renew them if damaged
  • This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
