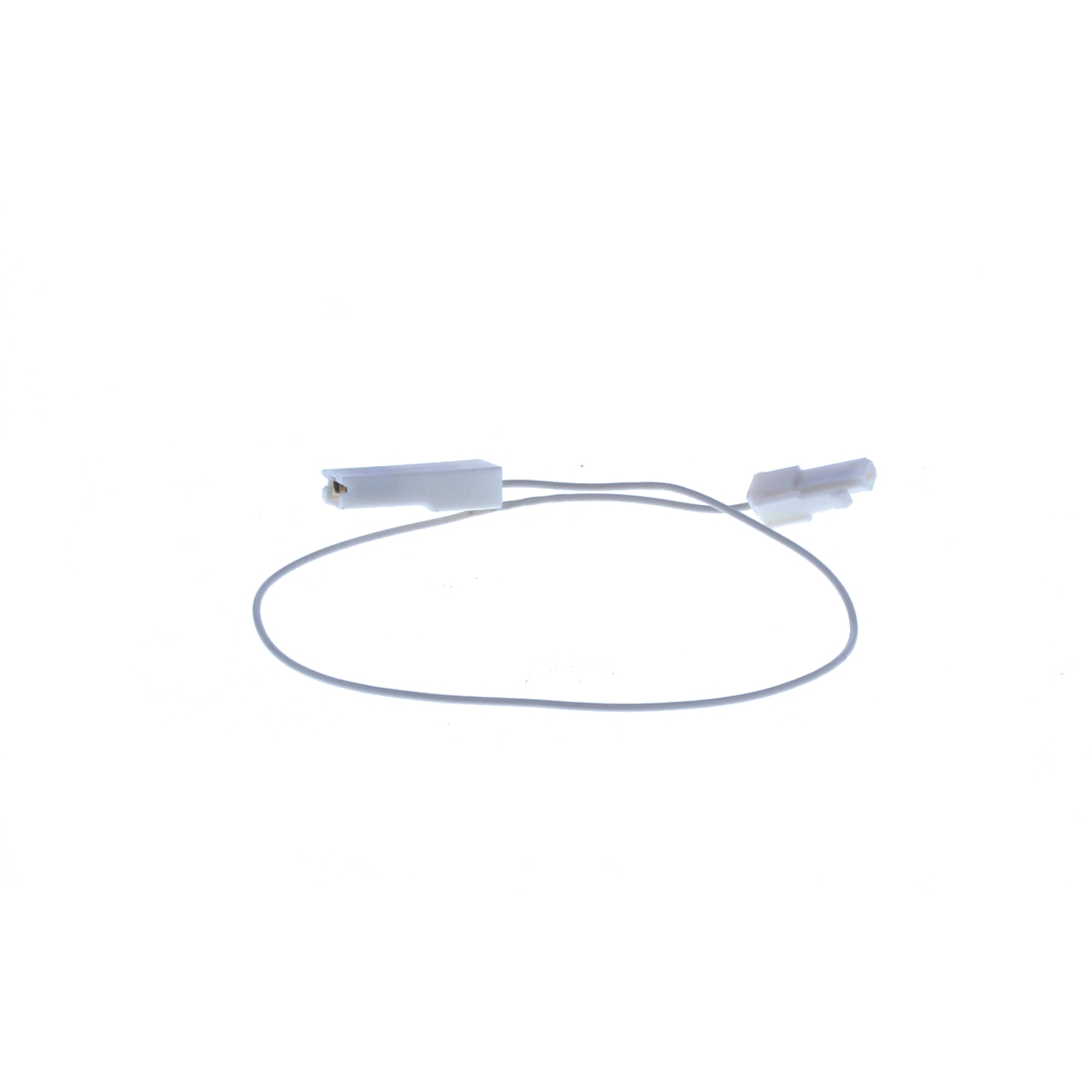

Worcester Bosch Wiring Harness Flamesense To PCB 87161201260
At a glance
- Part type: Wiring
- Also known as WB87161201260, 1015783
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£8.00
£6.67 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161201260 is a wiring harness that carries the flame sense signal from the electrode to the printed circuit board. It forms part of the flame monitoring circuit, allowing the PCB to confirm that a flame is present and to shut the burner down safely when it is not. The harness is built for the Worcester Bosch SBI and RSF combi appliance family.
Signs this part needs replacing
- Boiler locks out or fails to establish flame despite a healthy burner flame
- Intermittent flame failure or flame loss faults logged by the PCB
- Brittle, cracked or heat-damaged insulation along the harness
- Corroded, loose or discoloured terminals at the electrode or PCB plug
- Continuity faults traced through the flame sense circuit during service
Before you order
- Check the GC number and model on the appliance data badge against the compatibility list.
- Confirm the part number on the existing harness matches 87161201260 before ordering.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Wiring |
|---|
Compliance
| Manufacturer part number (MPN) | 87161201260 |
|---|---|
| GC number | E01-930 |
| Barcode / EAN | 4010009760207 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 4010009760207, WB87161201260, WB87161201260, 265075904244, 1015783 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 15 SBI NG | 41-311-43 | 41-311-43 | — | — |
| WORCESTER 24 SBI RSF NG | 41-311-44 | 41-311-44 | — | — |
| WORCESTER 24i RSF COMBI NG (NOV 2004) | 47-311-37 | 47-311-37 | — | — |
| WORCESTER 24i RSF COMBI NG (SEP 2001) | 47-311-37 | 47-311-37 | — | — |
| WORCESTER 28i RSF NG | 47-311-54 | 47-311-54 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
