Worcester Bosch
Worcester Bosch Fan Resistor Harness 87161208640
At a glance
- Part type: Wiring — fan resistor harness
- Also known as WB87161208640, 1016489
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
AvailabilityCall for price
Availability: no longer made. Call us and we'll check for stock.
No longer made: call us
The manufacturer has discontinued this part. Our team will check for remaining stock or a suitable replacement.
01302 279234Opening hours
- Mon–Fri
- 7:30am–5pm
- Sat
- 9am–12pm
- Sun
- Closed
Or request a price online
Tell us what you need and we will come back to you. No payment is taken.
30-day returns
Unused, in original packaging.
What it is

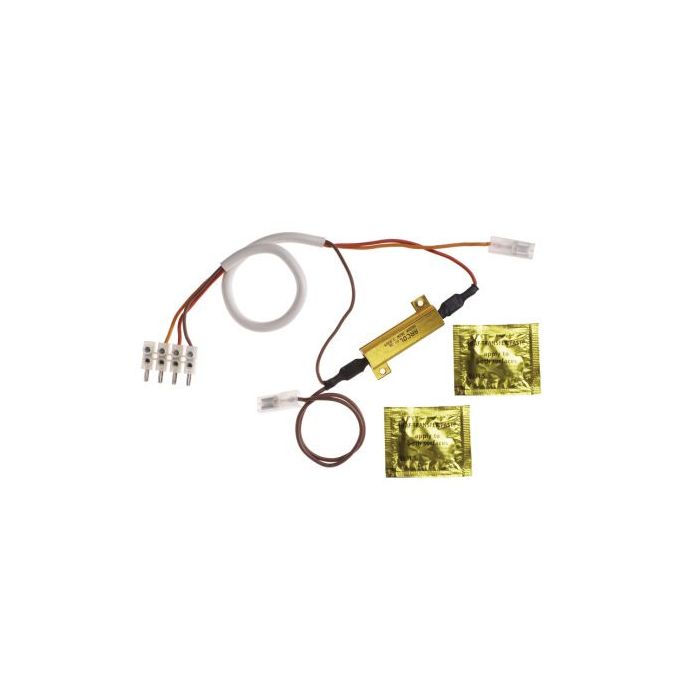

The Worcester Bosch 87161208640 is a fan resistor harness — a wiring assembly with an integrated resistor that forms part of the fan circuit on Worcester 350 RSF appliances. It sits between the fan and the boiler control, carrying the supply to the fan motor and dropping the voltage across the resistor so the fan runs at the correct speed. It is a direct replacement for the harness originally fitted to these models.
Signs this part needs replacing
- The fan does not start when the boiler is called for heat, or starts only intermittently.
- The boiler locks out or shuts down shortly after ignition.
- Fan speed is erratic, or the fan runs at a fixed speed regardless of demand.
- A burning or hot electrical smell around the fan housing or control area.
- Visible scorching, discolouration or brittleness on the resistor or harness wiring.
Before you order
- Check the GC number and the appliance data badge to confirm the model before ordering.
- If you are working from older documentation, the previous number SPK0108 identifies the same harness.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Wiring |
|---|
Compliance
| Manufacturer part number (MPN) | 87161208640 |
|---|---|
| GC number | 299-340 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | WB87161208640, SPK0108, 1016489 |
| Previous numbers | SPK0108 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER 350 RSF LPG (FUR) | — | — | — | |
| WORCESTER 350 RSF NG (FUR) | 47-311-13 | 47-311-13 | — | — |
