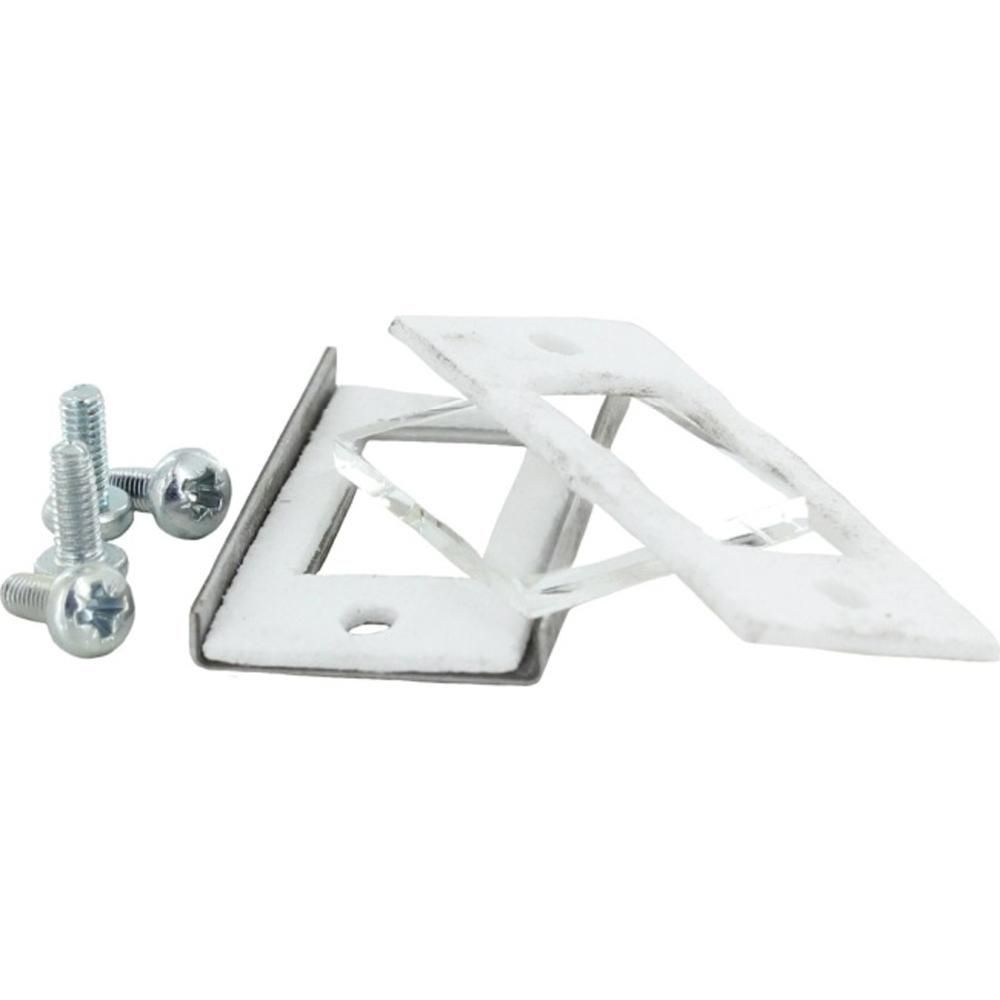

Ideal Sightglass Assembly Sup 3 078881
Ideal 078881 Sightglass Assembly Sup 3 for Concord Super Series 3 and 4 commercial boilers, supplied as a single assembly.
At a glance
- Part type: Sightglass assembly, Sup 3
- Also known as 1174797
£28.82
£24.02 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 078881 is a sightglass assembly, marked Sup 3, used on Ideal Commercial Concord Super Series appliances. It forms the viewing window into the combustion chamber, allowing the flame and burner condition to be checked during servicing and commissioning. It is supplied by Ideal Spares as a complete assembly.
Signs this part needs replacing
- Cracked, chipped or crazed sight glass
- Glass discoloured or coated with soot, obscuring the flame view
- Condensation or moisture trapped behind the glass
- Staining or leakage around the sightglass mounting
- Damaged or perished sealing face on the assembly
Before you order
- Check the appliance GC number against 41-415-68 or 41-415-69, or confirm the model in the compatibility list.
- Confirm the existing assembly is marked Sup 3, as earlier sightglass assemblies differ.
- Check whether the mounting gasket or seal needs renewing at the same time.
Mechanical
| Part type | Sight Glass, Mirrors & Sight Assemblies |
|---|
Compliance
| Manufacturer part number (MPN) | 078881 |
|---|---|
| GC number | 41-415-68, 41-415-69 |
| Barcode / EAN | 5022140788810 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1174797 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL COMMERCIAL CONCORD SUPER SERIES 3 - HORIZONTAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 3 - VERTICAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 4 - HORIZONTAL | — | — | — | |
| IDEAL COMMERCIAL CONCORD SUPER SERIES 4 - VERTICAL | — | — | — | |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — | |
| IDEAL COMMERCIAL IDEAL SUPER PLUS | — | — | — | |
| IDEAL COMMERCIAL MODULE SUPER PLUS DBI | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 200/2 | — | — | — | |
| IDEAL COMMERCIAL SUPER PLUS 200/2 DBI | 41-415-68 | 41-415-68 | — | — |
| IDEAL COMMERCIAL SUPER PLUS 200/S | 41-415-68 | 41-415-68 | — | — |
Showing 10 of 19 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL COMMERCIAL appliance manual — CONCORD SUPER SERIES 4 - HORIZONTAL, CONCORD SUPER SERIES 4 - VERTICAL
manualmanualIDEAL COMMERCIAL appliance manual — IDEAL SUPER PLUS, MODULE SUPER PLUS DBI, SUPER PLUS 200/2, SUPER PLUS 200/2 DBI (GC 41-415-68), SUPER PLUS 200/S (GC 41-415-68), SUPER PLUS 300/3, SUPER PLUS 300/3 ALT, SUPER PLUS 300/3 AT (GC 41-415-69), SUPER PLUS 300/3 DBI (GC 41-415-69), SUPER PLUS 400/4 (GC 41-415-68), SUPER PLUS 400/4 ALT, SUPER PLUS 400/4 AT (GC 41-415-68), SUPER PLUS 500/5, SUPER PLUS 600/6 (GC 41-415-69)
manualNo technical questions yet for this part.
Not sure which part?
Tell the parts assistant what it's going into — the appliance make and model, or the GC number off the data badge — and it will check this part is on the fit list.
