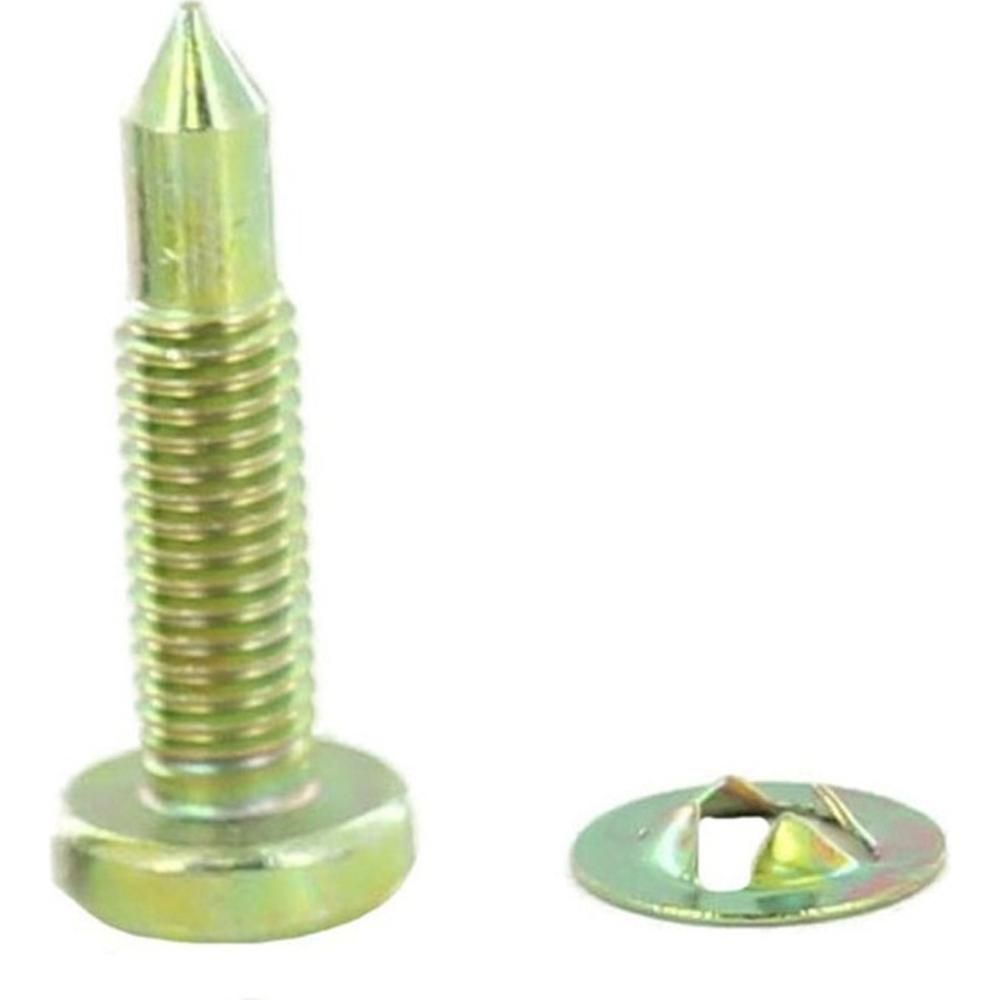

Worcester Bosch Oval Head Screw M5 x 22mm 87161156830
Worcester Bosch oval-head M5 x 22mm screw, part 87161156830, for Greenstar and British Gas 430/I, 532/I and 537/I boilers.
At a glance
- Part type: Bolts, nuts and screws
- Also known as 1022063
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
AvailabilityCall for price
Availability: no longer made. Call us and we'll check for stock.
No longer made: call us
The manufacturer has discontinued this part. Our team will check for remaining stock or a suitable replacement.
01302 279234Opening hours
- Mon–Fri
- 7:30am–5pm
- Sat
- 9am–12pm
- Sun
- Closed
Or request a price online
Tell us what you need and we will come back to you. No payment is taken.
30-day returns
Unused, in original packaging.
What it is
The Worcester Bosch 87161156830 is an oval-head screw with an M5 x 22mm thread, supplied as a single unit. It is a fixing component used within Worcester Bosch gas boilers, where it holds panels, brackets and internal assemblies securely in position so the appliance continues to run as designed. The oval head sits flatter than a standard countersunk or pan head, which suits the recessed fixing points found across the Greenstar and British Gas ranges.
Signs this part needs replacing
- A fixing point that no longer holds, leaving a panel, bracket or internal component loose
- Vibration or rattling from a cover or assembly that should be clamped tight
- A rounded or chewed head that will not take a driver, usually after a previous removal
- Visible corrosion, pitting or thread damage on the screw shank
- A screw that has been dropped or lost during a service or strip-down
Before you order
- Check the appliance GC number and model against the compatibility list before ordering, as the same screw is used across several Greenstar and British Gas variants
- Confirm the existing fixing matches the M5 x 22mm oval-head pattern and that the alternative number 1022063 does not already appear on your parts record
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Screws & Studs |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 87161156830 |
|---|---|
| GC number | H31-940 |
| Barcode / EAN | 4047416921662 |
| Commodity code | 7318 15 00 90 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1022063 |
Logistics
| Pack quantity | 1 screw |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| WORCESTER BRITISH GAS 430/I | 41-311-80 | 41-311-80 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 430/I SYSTEM LPG | 41-311-81 | 41-311-81 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 532/I COMBI LPG | 47-406-03 | 47-406-03 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 532/I COMBI NG | 47-406-02 | 47-406-02 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 537/I COMBI LPG | 47-406-05 | 47-406-05 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 537/I COMBI NG | 47-406-04 | 47-406-04 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 542/I COMBI LPG | 47-406-07 | 47-406-07 | — | — |
| WORCESTER BRITISH GAS GREENSTAR 542/I COMBI NG | 47-406-06 | 47-406-06 | — | — |
| WORCESTER GREENSTAR 25CDI EMS COMBI NG | 47-311-92 | 47-311-92 | — | — |
| WORCESTER GREENSTAR 25CDI ENS COMBI LPG | 47-311-96 | 47-311-96 | — | — |
Showing 10 of 72 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
WORCESTER appliance manual — BRITISH GAS 430/I (GC 41-311-80), BRITISH GAS GREENSTAR 430/I SYSTEM LPG (GC 41-311-81)
manualmanualWORCESTER appliance manual — BRITISH GAS GREENSTAR 532/I COMBI LPG (GC 47-406-03), BRITISH GAS GREENSTAR 532/I COMBI NG (GC 47-406-02), BRITISH GAS GREENSTAR 537/I COMBI LPG (GC 47-406-05), BRITISH GAS GREENSTAR 537/I COMBI NG (GC 47-406-04), BRITISH GAS GREENSTAR 542/I COMBI LPG (GC 47-406-07), BRITISH GAS GREENSTAR 542/I COMBI NG (GC 47-406-06)
manualmanualWORCESTER appliance manual — GREENSTAR 25CDI EMS COMBI NG (GC 47-311-92), GREENSTAR 25CDI ENS COMBI LPG (GC 47-311-96), GREENSTAR 25CDI PRE EMS COMBI NG (GC 47-311-92), GREENSTAR 30CDI NEW EMS LPG (GC 47-311-97), GREENSTAR 30CDI NEW EMS NG (GC 47-311-93), GREENSTAR 30CDI OLD EMS LPG (GC 47-311-97), GREENSTAR 30CDI OLD EMS NG (GC 47-311-93), GREENSTAR 30CDI PRE EMS COMBI NG (GC 47-311-93), GREENSTAR 35CDI EMS LPG COMBI (GC 47-311-98), GREENSTAR 35CDI EMS NG COMBI (GC 47-311-94), GREENSTAR 35CDI PRE EMS NG COMBI (GC 47-311-94), GREENSTAR 40CDI EMS COMBI LPG (GC 47-406-01), GREENSTAR 40CDI EMS COMBI NG (GC 47-311-95), GREENSTAR 40CDI PRE EMS NG (GC 47-311-95)
manualmanualWORCESTER appliance manual — GREENSTAR 27CDI EMS COMBI LPG (GC 47-406-13), GREENSTAR 27CDI EMS COMBI NG (GC 47-406-12), GREENSTAR 37CDI EMS COMBI LPG (GC 47-406-09), GREENSTAR 37CDI EMS COMBI NG (GC 47-406-08), GREENSTAR 42CDI CLASSIC COMBI LPG (GC 47-406-11), GREENSTAR 42CDI CLASSIC COMBI NG (GC 47-406-10)
manualmanualWORCESTER appliance manual — GREENSTAR 29CDI CLASSIC COMBI LPG (GC 47-406-35), GREENSTAR 29CDI CLASSIC COMBI NG (GC 47-406-34), GREENSTAR 34CDI CLASSIC COMBI LPG (GC 47-406-37), GREENSTAR 34CDI CLASSIC COMBI NG (GC 47-406-36), GREENSTAR 38CDI CLASSIC COMBI LPG (GC 47-406-39), GREENSTAR 38CDI CLASSIC COMBI NG (GC 47-406-38)
manualmanualWORCESTER appliance manual — GREENSTAR 29CDI ErP CLASSIC LPG (GC 47-406-66), GREENSTAR 29CDI ErP CLASSIC NG (GC 47-406-65), GREENSTAR 34CDI ErP CLASSIC LPG (GC 47-406-68), GREENSTAR 34CDI ErP CLASSIC NG (GC 47-406-67), GREENSTAR 38CDI ErP CLASSIC LPG (GC 47-406-70), GREENSTAR 38CDI ErP CLASSIC NG (GC 47-406-69), GREENSTAR 42CDI ErP CLASSIC LPG (GC 47-406-72), GREENSTAR 42CDI ErP CLASSIC NG (GC 47-406-71)
manualmanualWORCESTER appliance manual — GREENSTAR 30CDI CONVENTIONAL LPG (GC 41-311-73), GREENSTAR 30CDI CONVENTIONAL NG (GC 41-311-71), GREENSTAR 40CDI CONVENTIONAL LPG (GC 41-311-74), GREENSTAR 40CDI CONVENTIONAL NG (GC 41-311-72)
manualmanualWORCESTER appliance manual — GREENSTAR 30CDI ErP CLASSIC LPG (GC 41-406-38), GREENSTAR 30CDI ErP CLASSIC NG (GC 41-406-37)
manualmanualWORCESTER appliance manual — GREENSTAR 30CDI ErP CLASSIC REGULAR LPG (GC 41-406-34), GREENSTAR 30CDI ErP CLASSIC REGULAR NG (GC 41-406-33), GREENSTAR 40CDI ErP CLASSIC REGULAR LPG (GC 41-406-36), GREENSTAR 40CDI ErP CLASSIC REGULAR NG (GC 41-406-35)
manualmanualWORCESTER appliance manual — GREENSTAR 30CDI SYSTEM LPG (GC 41-311-97), GREENSTAR 30CDI SYSTEM NG (GC 41-311-93)
manualmanualWORCESTER appliance manual — GREENSTAR 35CDI ErP CLASSIC SYSTEM LPG (GC 41-406-40), GREENSTAR 35CDI ErP CLASSIC SYSTEM NG (GC 41-406-39)
manualNo technical questions yet for this part.
