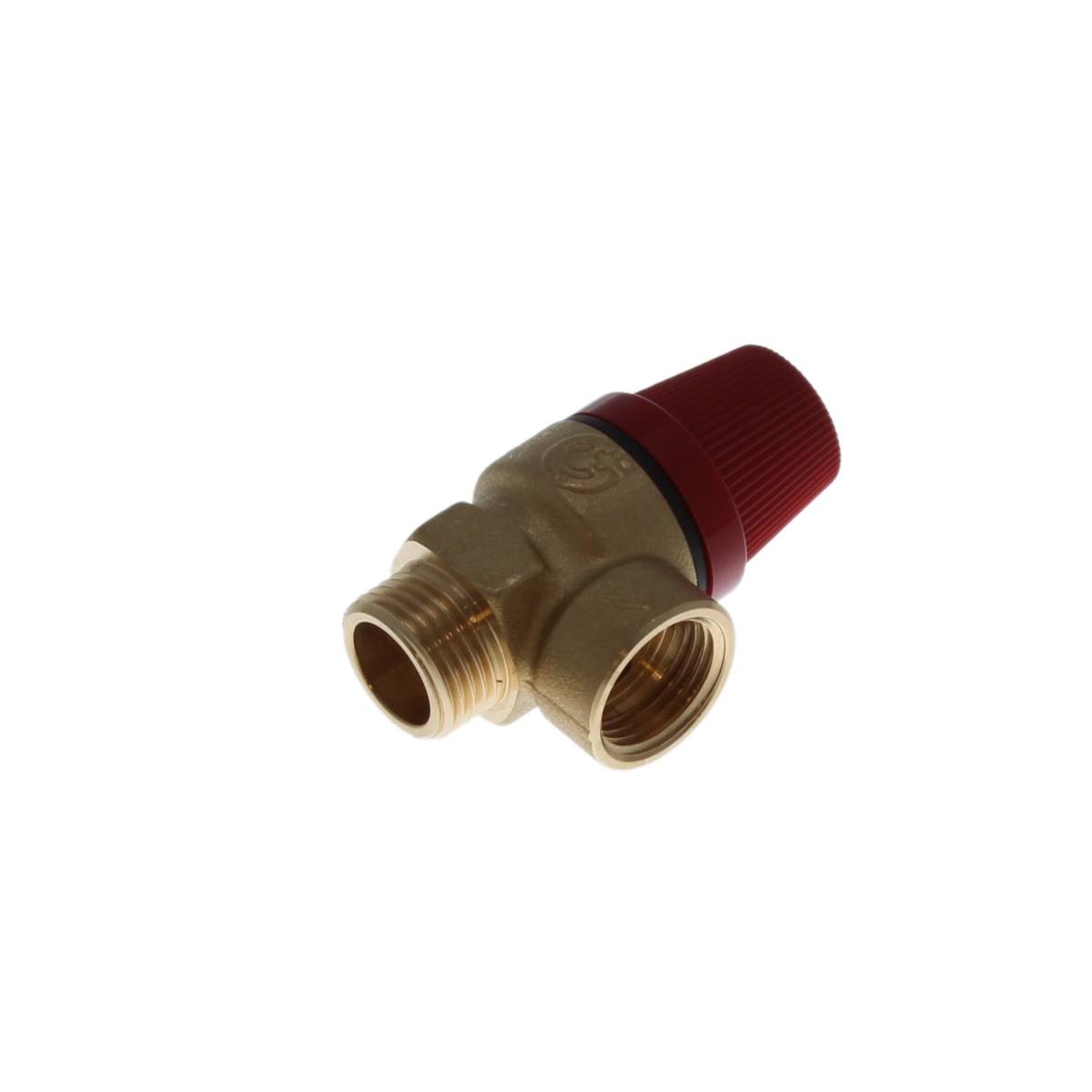

Baxi Pressure Relief Valve 3 Bar 248650

Baxi

Baxi Pressure Relief Valve 3 Bar 248650

Baxi 3 bar pressure relief valve, part 248650, for Maxflow Combi FS and WM appliances; opens as system pressure rises to protect the boiler.

At a glance

  • Part type: Pressure relief valve
  • Also known as 1117174
  • This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Manufacturer part no.
248650
GC number
E76-182
Showing prices

£21.60

£18.00 ex. VAT · VAT at 20%

Available to order · 1-2 working days
Available to order · 1-2 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.

Same-day dispatch

Ordered by 4pm Mon–Fri, 10:30am Sat.

30-day returns

Unused, in original packaging.

What it is

The Baxi pressure relief valve, part number 248650, is a 3 bar safety valve used on Baxi Maxflow Combi appliances. It is set to open as pressure in the heating circuit rises, discharging water so the system does not malfunction or suffer damage from over-pressurisation. The valve is a serviceable item and is normally reached during routine boiler servicing or when system pressure faults are investigated.

Signs this part needs replacing

  • Water discharging from the relief outlet while the system is cold and at normal pressure
  • System pressure climbing steadily and failing to hold at the correct setting
  • The valve weeping or dripping after it has operated once
  • Boiler locking out or shutting down on an overheat fault
  • Scale or system debris stopping the valve from reseating properly

Before you order

  • Check the GC number on the appliance data badge against the compatibility list before ordering.
  • Confirm the previous part number 247402 if working from an older reference.
  • Inspect the valve seating face and any seal at the outlet, as scale or debris can cause a replacement valve to pass water.
  • This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.

Not sure which part?

Tell the parts assistant what it's going into — the appliance make and model, or the GC number off the data badge — and it will check this part is on the fit list.
