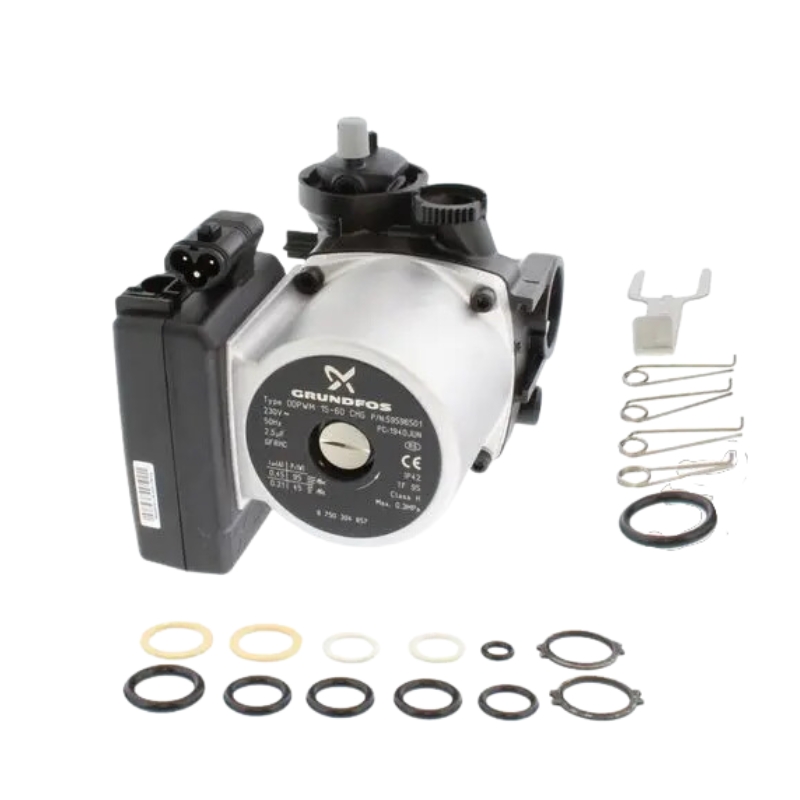

Worcester Bosch Pump Assembly 15-60 230V 8716119824

Worcester Bosch

Worcester Bosch Pump Assembly 15-60 230V 8716119824

At a glance

  • Part type: pump assembly
  • Also known as WB8716119824, 1014880
  • This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Hanicks code
8716119824
Manufacturer part no.
8716119824
GC number
H22-463

AvailabilityCall for price

Availability: no longer made. Call us and we'll check for stock.

Replaced by 8716122126

No longer made: call us

The manufacturer has discontinued this part. Our team will check for remaining stock or a suitable replacement.

01302 279234

Opening hours

Mon–Fri
7:30am–5pm
Sat
9am–12pm
Sun
Closed

Or request a price online

Tell us what you need and we will come back to you. No payment is taken.

Part: 8716119824 Worcester Bosch Pump Assembly 15-60 230V 8716119824

Whichever you would like us to reply to.

Helps us check the part fits.

30-day returns

Unused, in original packaging.

What it is

This is a Worcester Bosch circulating pump assembly rated 15-60 and running on a 230V supply. It moves primary water around the boiler and the heating circuit, so it sits at the centre of the appliance's circulation rather than at the periphery. The assembly is used across the Worcester Bosch Greenstar and British Gas badged combi and system ranges.

Signs this part needs replacing

  • No circulation: radiators stay cold while the boiler fires, or the flow and return pipes at the boiler show little temperature difference.
  • The pump is noisy in use, with rumbling, grinding or a whine that changes with speed setting.
  • The boiler locks out or shuts down shortly after ignition because the flow switch or temperature sensors do not see movement.
  • The pump head is hot but not turning, or the shaft cannot be turned by hand with the power isolated.
  • Repeated overheat faults on the appliance where the pump is the only circulation source.

Before you order

  • Check the GC number on the appliance data badge against the compatibility list; the same boiler family can use more than one pump variant.
  • Confirm the number on the old pump matches 8716119824 or one of the previous numbers listed above before ordering.
  • Check whether the pump gasket or sealing washer is reusable; a replacement seal is normally needed when the head is removed.
  • This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.

Not sure which part?

Tell the parts assistant what it's going into — the appliance make and model, or the GC number off the data badge — and it will check this part is on the fit list.
