Gledhill

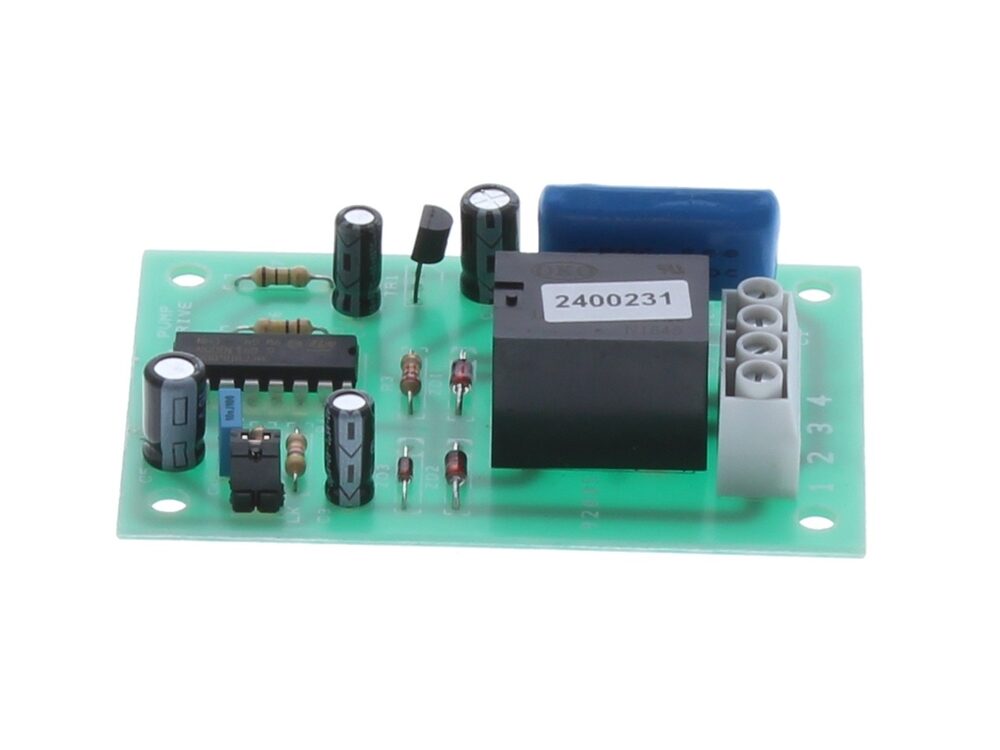

Gledhill Pump Drive PCB XB104
Pump drive printed circuit board (XB104) for the Gledhill Boilermate II thermal store.
At a glance
- Appliance family: Boilermate II
- Also known as 2000102
£86.88
£72.40 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The XB104 is a pump drive printed circuit board manufactured by Gledhill. It controls the operation of the circulation pump on the Gledhill Boilermate II thermal store, managing pump switching as part of the appliance's control sequence.
Signs this part needs replacing
- The circulation pump does not run when the appliance calls for it
- The pump runs continuously or erratically regardless of demand
- No hot water or poor heat-up times caused by a pump that is not being driven
- Visible damage to the board, such as scorching, burnt tracks or swollen components
- Repeated control faults or lockouts traced to the pump circuit
Before you order
- Confirm the appliance is a Gledhill Boilermate II
- Check the part number printed on the existing board matches XB104
- Isolate the electrical supply before removing or fitting the board
- Inspect the pump and its wiring for faults before assuming the board is at fault
Compliance
| Alternative numbers | 2000102 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GLEDHILL BOILERMATE II | — | — | — | |
| GLEDHILL BOILERMATE II (2) | — | — | — | |
| GLEDHILL Boilermate II | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
