Grant Circulating Pump Wilo Para 7m VBS159
Grant VBS159 circulating pump with a Wilo Para head rated at 7 m, fitted to Grant Vortex combi and boiler models to move water around the heating circuit.
At a glance
- Part type: Circulating pump
- Also known as 2160607
Showing prices
£291.71
£243.09 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

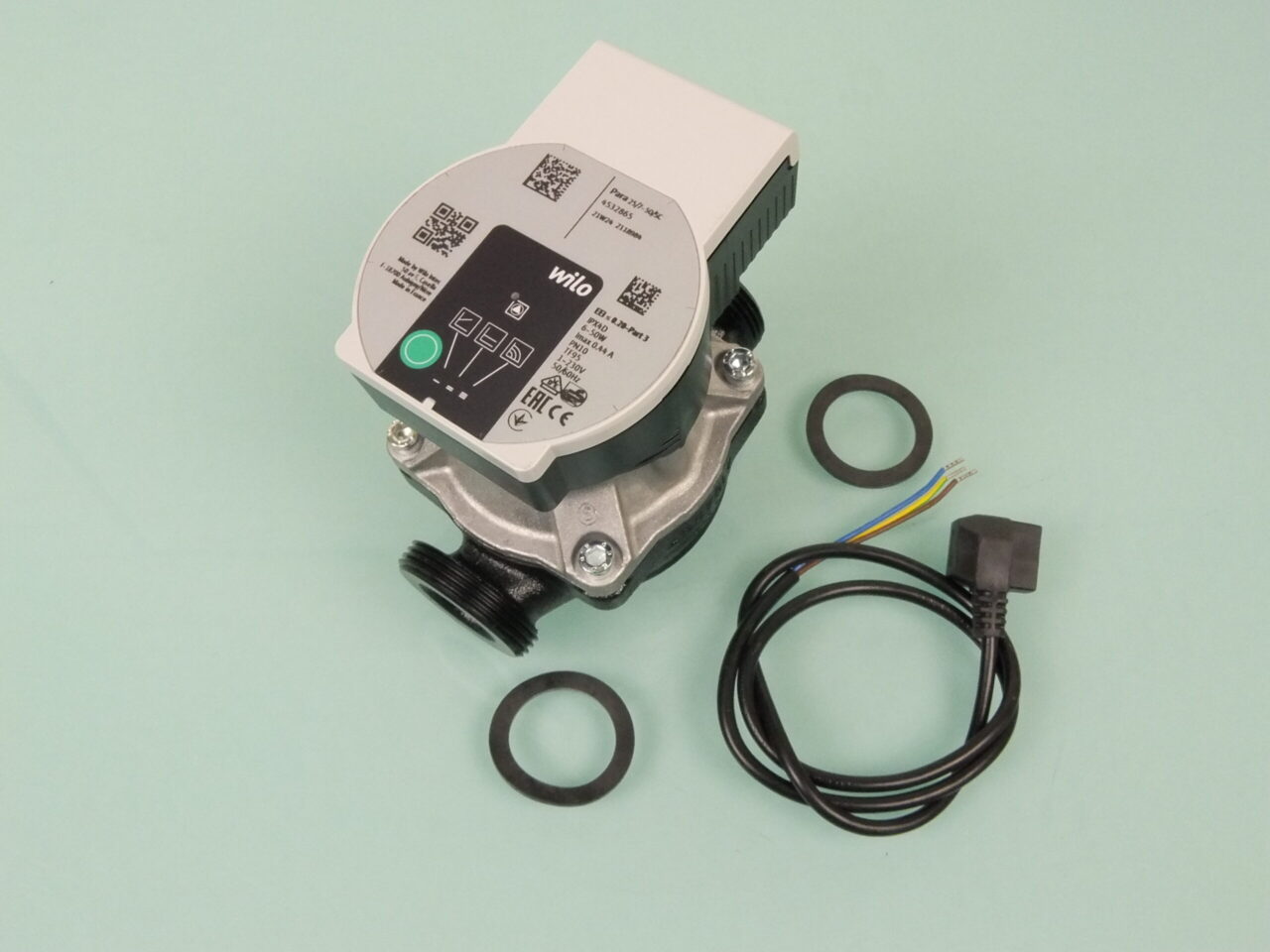

The Grant VBS159 is a circulating pump supplied with a Wilo Para pump head rated at 7 metres. It is the component that pushes heated water from the boiler around the primary circuit, so radiators and hot water draw off heat at the rate the appliance expects. It is used across the Grant Vortex combi and boiler families, including the Combi 70, Combi 90 and Combi Max ranges.
Signs this part needs replacing
- No heating or no hot water, with the boiler firing but the primary circuit staying cold
- The pump body is hot to touch while the pipework either side stays cool
- Grinding, humming or rumbling from the pump housing that continues after venting
- The pump impeller is not turning, or the shaft cannot be rotated by hand
- Repeated boiler lockouts or overheat trips during a heating demand
Before you order
- Confirm the appliance model and serial number against the compatibility list before ordering
- Check the pump currently fitted carries one of the alternative or previous numbers listed above
- Have a suitable flange gasket or seal to hand, as the existing one is disturbed when the pump is removed
- Isolate the electrical supply and drain down as required before starting work
Mechanical
| Part type | Circulating pump |
|---|
Compliance
| Manufacturer part number (MPN) | VBS159 |
|---|---|
| Commodity code | 8413 70 20 00 |
| GPC classification | Pumps |
| Alternative numbers | MPCBS23, MPCBS43, 2160607 |
| Previous numbers | MPCBS23, MPCBS43 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GRANT COMBI 70 MKII BOILER | — | — | — | |
| GRANT COMBI 70 V3 BOILER | — | — | — | |
| GRANT COMBI 90 MKII BOILER | — | — | — | |
| GRANT COMBI 90 V3 BOILER | — | — | — | |
| GRANT COMBI MAX BOILER | — | — | — | |
| GRANT COMBI OUTDOOR 90 MKII BOILER | — | — | — | |
| GRANT EUROFLAME BOILERHOUSE 50/70 BOILER | — | — | — | |
| GRANT EUROFLAME BOILERHOUSE 50/90 BOILER | — | — | — | |
| GRANT EUROFLAME BOILERHOUSE 70/90 BOILER | — | — | — | |
| GRANT EUROFLAME BOILERHOUSE 90/120 BOILER | — | — | — |
Showing 10 of 62 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
