Ravenheat

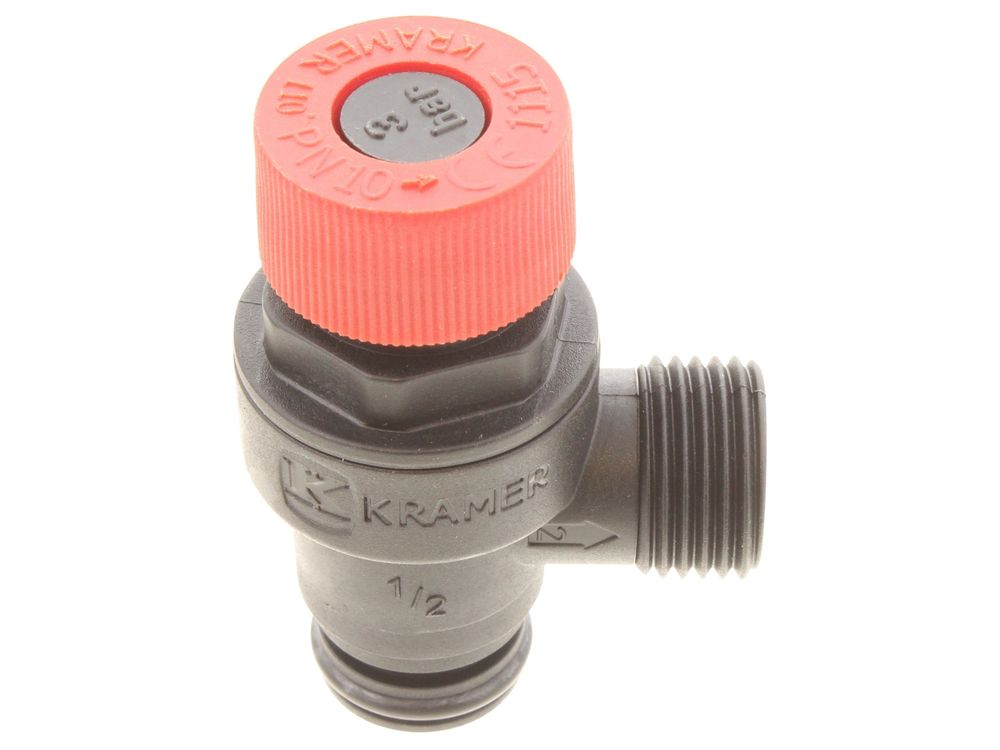

Ravenheat Safety Relief Valve VAL150100
Safety relief valve for Ravenheat gas boilers, part number VAL150100.
At a glance
- Part type: safety relief valve
- Also known as 1842338
£17.35
£14.46 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat VAL150100 is a safety relief valve used in Ravenheat gas boilers. It forms part of the pressure relief and safety valve group, opening to discharge excess pressure from the appliance's water circuit. It is listed for use across a wide range of Ravenheat CS, HE and WH models.
Signs this part needs replacing
- Water weeping or dripping from the valve outlet when the system is not over pressure
- Discharge pipe running continuously or passing water during normal operation
- System pressure that will not hold and keeps dropping after topping up
- Visible scale, corrosion or debris around the valve seat or outlet
- Valve failing to open or discharge when system pressure rises above the set point
Before you order
- Confirm the boiler model and variant against the fitment list above
- Check the existing valve's part number or markings where accessible
- Verify the system has been depressurised and isolated before removal
- Check the discharge pipework and system pressure gauge for related faults
Compliance
| Alternative numbers | 1842338 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CS 80 | 47-581-46 | 47-581-46 | — | — |
| RAVENHEAT CS 80 (T) | 47-581-46 | 47-581-46 | — | — |
| RAVENHEAT CS 80 (T) LPG | 47-581-47 | 47-581-47 | — | — |
| RAVENHEAT CS 80 LPG | 47-581-47 | 47-581-47 | — | — |
| RAVENHEAT CS 90 | 47-581-48 | 47-581-48 | — | — |
| RAVENHEAT CS 90 (T) | 47-581-48 | 47-581-48 | — | — |
| RAVENHEAT CS 90 (T) LPG | 47-581-49 | 47-581-49 | — | — |
| RAVENHEAT CS 90 LPG | 47-581-49 | 47-581-49 | — | — |
| RAVENHEAT CS SYSTEM 3-20 | — | — | — | |
| RAVENHEAT CS SYSTEM 3-20 LPG | — | — | — |
Showing 10 of 48 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — CS 80 (GC 47-581-46), CS 80 (T) (GC 47-581-46), CS 80 (T) LPG (GC 47-581-47), CS 80 LPG (GC 47-581-47), CS 90 (GC 47-581-48), CS 90 (T) (GC 47-581-48), CS 90 (T) LPG (GC 47-581-49), CS 90 LPG (GC 47-581-49)
manualmanualRAVENHEAT appliance manual — CS SYSTEM 3-20, CS SYSTEM 3-20 LPG, CS SYSTEM 4-24, CS SYSTEM 4-24 LPG, WH SYSTEM 3-20, WH SYSTEM 3-20 LPG, WH SYSTEM 4-24, WH SYSTEM 4-24 LPG
manualmanualRAVENHEAT appliance manual — HE 25S COMPACT, HE 30S COMPACT
manualmanualRAVENHEAT appliance manual — HE 80, HE 80 LPG, HE 80 T, HE 80 T LPG, HE 98, HE 98 LPG, HE 98 T, HE 98 T LPG
manualmanualRAVENHEAT appliance manual — HE 80S SYSTEM, HE 80S SYSTEM LPG, HE 98S SYSTEM, HE 98S SYSTEM LPG
manualmanualRAVENHEAT appliance manual — HE 80S, HE 98S
manualmanualRAVENHEAT appliance manual — WHITE HEAT WH 80 LPG (GC 47-506-06), WHITE HEAT WH 80 NAT GAS (GC 47-506-05), WHITE HEAT WH 80 T LPG (GC 47-506-06), WHITE HEAT WH 80 T NAT GAS (GC 47-506-05), WHITE HEAT WH 90 LPG (GC 47-506-08), WHITE HEAT WH 90 NAT GAS (GC 47-506-07), WHITE HEAT WH 90 T LPG (GC 47-506-08), WHITE HEAT WH 90 T NAT GAS (GC 47-506-07)
manualNo technical questions yet for this part.
