Ravenheat Water Pressure Transducer TRA150100
Water pressure transducer for Ravenheat gas boilers, part number TRA150100.
At a glance
- Also known as 1842119
£45.76
£38.13 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

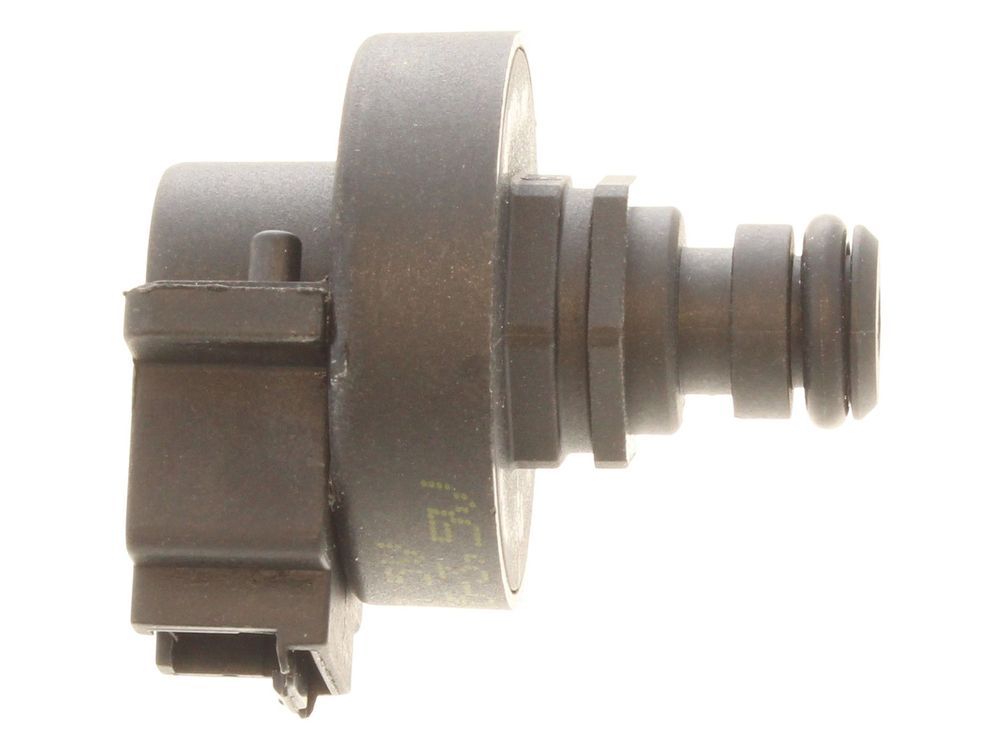

The Ravenheat water pressure transducer (part number TRA150100) is a sensor fitted to a range of Ravenheat gas boilers. It monitors water pressure within the heating circuit and provides a corresponding signal to the boiler's control system. It is supplied as a spare component for the models listed below.
Signs this part needs replacing
- Boiler locks out or displays a low water pressure fault
- Pressure gauge reads incorrectly or fluctuates
- Boiler fails to fire despite adequate system pressure
- Intermittent heating or hot water operation
Before you order
- Check your boiler model against the fitment list above
- Confirm the GC number where shown
- Verify the existing part number is TRA150100
- Isolate the power and water supply before fitting
Compliance
| Alternative numbers | 1842119 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CS 80 | 47-581-46 | 47-581-46 | — | — |
| RAVENHEAT CS 80 (T) | 47-581-46 | 47-581-46 | — | — |
| RAVENHEAT CS 80 (T) LPG | 47-581-47 | 47-581-47 | — | — |
| RAVENHEAT CS 80 LPG | 47-581-47 | 47-581-47 | — | — |
| RAVENHEAT CS 90 | 47-581-48 | 47-581-48 | — | — |
| RAVENHEAT CS 90 (T) | 47-581-48 | 47-581-48 | — | — |
| RAVENHEAT CS 90 (T) LPG | 47-581-49 | 47-581-49 | — | — |
| RAVENHEAT CS 90 LPG | 47-581-49 | 47-581-49 | — | — |
| RAVENHEAT CS SYSTEM 3-20 | — | — | — | |
| RAVENHEAT CS SYSTEM 3-20 LPG | — | — | — |
Showing 10 of 44 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — CS 80 (GC 47-581-46), CS 80 (T) (GC 47-581-46), CS 80 (T) LPG (GC 47-581-47), CS 80 LPG (GC 47-581-47), CS 90 (GC 47-581-48), CS 90 (T) (GC 47-581-48), CS 90 (T) LPG (GC 47-581-49), CS 90 LPG (GC 47-581-49)
manualmanualRAVENHEAT appliance manual — CS SYSTEM 3-20, CS SYSTEM 3-20 LPG, CS SYSTEM 4-24, CS SYSTEM 4-24 LPG, WH SYSTEM 3-20, WH SYSTEM 3-20 LPG, WH SYSTEM 4-24, WH SYSTEM 4-24 LPG
manualmanualRAVENHEAT appliance manual — HE 25S COMPACT, HE 30S COMPACT
manualmanualRAVENHEAT appliance manual — HE 80, HE 80 LPG, HE 80 T, HE 80 T LPG, HE 98, HE 98 LPG, HE 98 T, HE 98 T LPG
manualmanualRAVENHEAT appliance manual — HE 80S SYSTEM, HE 80S SYSTEM LPG, HE 98S SYSTEM, HE 98S SYSTEM LPG
manualmanualRAVENHEAT appliance manual — HE 80S, HE 98S
manualmanualRAVENHEAT appliance manual — WHITE HEAT WH 80 LPG (GC 47-506-06), WHITE HEAT WH 80 NAT GAS (GC 47-506-05), WHITE HEAT WH 80 T LPG (GC 47-506-06), WHITE HEAT WH 80 T NAT GAS (GC 47-506-05), WHITE HEAT WH 90 LPG (GC 47-506-08), WHITE HEAT WH 90 NAT GAS (GC 47-506-07), WHITE HEAT WH 90 T LPG (GC 47-506-08), WHITE HEAT WH 90 T NAT GAS (GC 47-506-07)
manualNo technical questions yet for this part.
