Atkinson Equipment

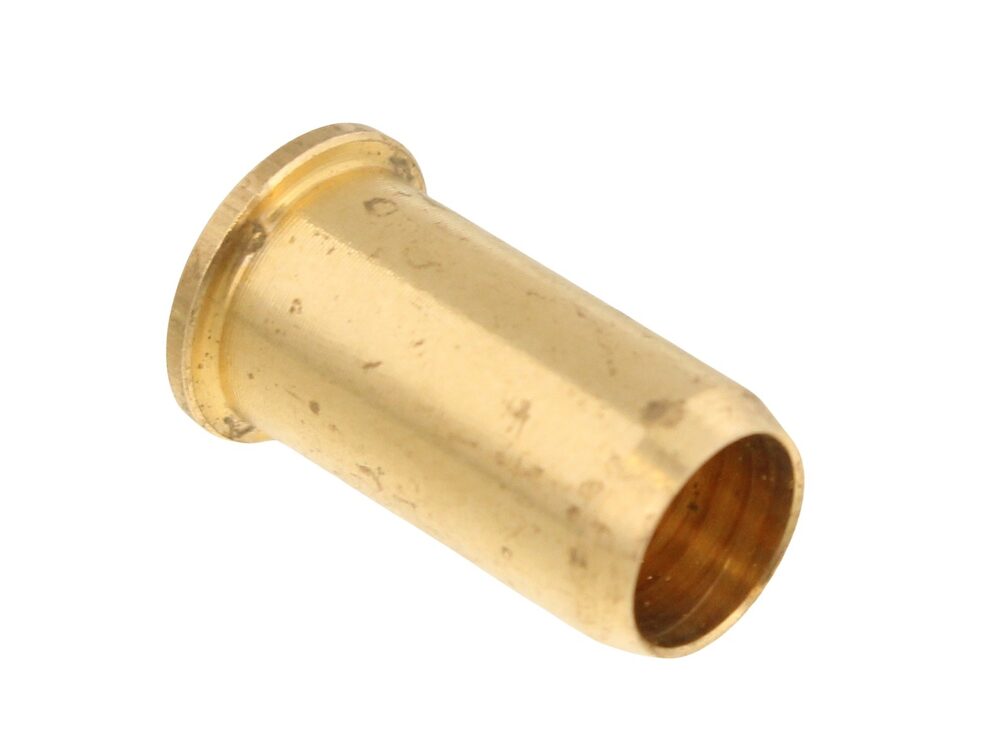

Atkinson brass insert for 10mm soft copper pipe TM4172
British-made, OFTEC-approved brass insert fitted inside 10mm soft copper oil pipe to stop the compression olive crushing it.
At a glance
- Also known as 1940016
£0.83
£0.69 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Atkinson TM4172 is a British-manufactured brass insert fitted inside 10mm soft copper pipe before a compression fitting is tightened. It braces the pipe wall from the inside so the olive can't crush it, giving an airtight joint on domestic oil supply lines, and is approved by OFTEC for this use.
Signs this part needs replacing
- Oil weeping or leaking from a compression joint on soft copper pipe
- Pipe visibly crushed or ovalised under a compression olive
- A joint that won't hold tight even after retightening the compression nut
- No insert found fitted when remaking an existing joint
Before you order
- Confirm your pipe is 10mm soft copper, not 8mm or 15mm
- Fit one insert per joint, before the olive is tightened
- Have oil pipe joints made or checked by an OFTEC-registered engineer
Compliance
| Alternative numbers | 1940016 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ATKINSON EQUIPMENT OIL HEATING EQUIPMENT | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
