Glow-worm

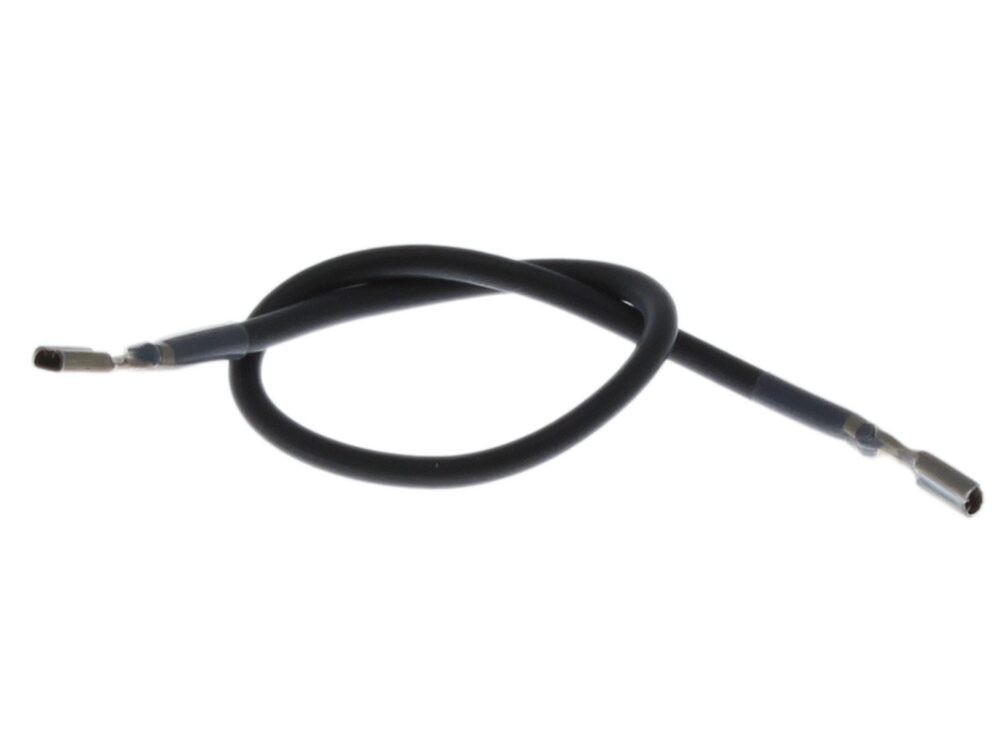

Glow-worm Ignition Lead Assembly Black 200mm GLOWWORMSWX5503
At a glance
- Part type: Ignition lead assembly
- Also known as GLOWWORMSWX5503
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£29.40
£24.50 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The SWX5503 is an ignition lead assembly manufactured by Glow-worm for use in its domestic gas boilers. The lead carries the high-tension spark from the ignition source to the spark electrode so the burner can be lit on a demand for heat or hot water. It is supplied as a black insulated lead measuring 200mm.
Signs this part needs replacing
- The boiler attempts to fire but the burner does not light, with no spark at the electrode
- Sparking is visible or audible along the length of the lead rather than at the electrode tip
- The insulation is cracked, brittle, scorched or chafed where the lead passes near hot or sharp components
- Ignition is intermittent, with the boiler locking out on some start attempts but not others
- The lead terminal or boot is loose, corroded or no longer grips the electrode
Before you order
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
- Confirm the appliance model and GC number against the manufacturer's documentation before ordering.
- Inspect the spark electrode and its gasket at the same time, as ignition faults often involve both components.
- Check the routing of the existing lead so the replacement can be run clear of hot surfaces and sharp edges.
Mechanical
| Part type | Ignition lead assembly |
|---|---|
| Length | 200 mm |
| Colour | Black |
Compliance
| Manufacturer part number (MPN) | SWX5503 |
|---|---|
| GC number | E39-570 |
| Barcode / EAN | 4024074506134 |
| Commodity code | 8544 60 10 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 4024074501511, GLOWWORMSWX5503, 266381670895, 1337108 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GLOWWORM CHATSWORTH FIRE FRONT | 37-047-03 | 37-047-03 | — | — |
| GLOWWORM DOVEDALE FIRE FRONT | — | — | — | |
| GLOWWORM GLOWWORM CHATSWORTH FIRE FRONT | — | — | — | |
| GLOWWORM GLOWWORM DOVEDALE FIRE FRONT | — | — | — | |
| GLOWWORM GLOWWORM HARDWICK FIRE FRONT | — | — | — | |
| GLOWWORM GLOWWORM MICRON 30FF | — | — | — | |
| GLOWWORM GLOWWORM MICRON 40FF | — | — | — | |
| GLOWWORM GLOWWORM MICRON 50FF | — | — | — | |
| GLOWWORM GLOWWORM MICRON 60FF | — | — | — | |
| GLOWWORM GLOWWORM MICRON 70FF | — | — | — |
Showing 10 of 18 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
GLOWWORM appliance manual — MICRON 30FF (GC 41-047-16)
manualmanualGLOWWORM appliance manual — MICRON 40FF (GC 41-047-17)
manualmanualGLOWWORM appliance manual — MICRON 50FF (GC 41-047-18)
manualmanualGLOWWORM appliance manual — MICRON 60FF (GC 41-047-19)
manualmanualGLOWWORM appliance manual — MICRON 70FF (GC 41-047-20)
manualmanualGLOWWORM appliance manual — MICRON 80FF (GC 41-047-21)
manualNo technical questions yet for this part.
