Ravenheat

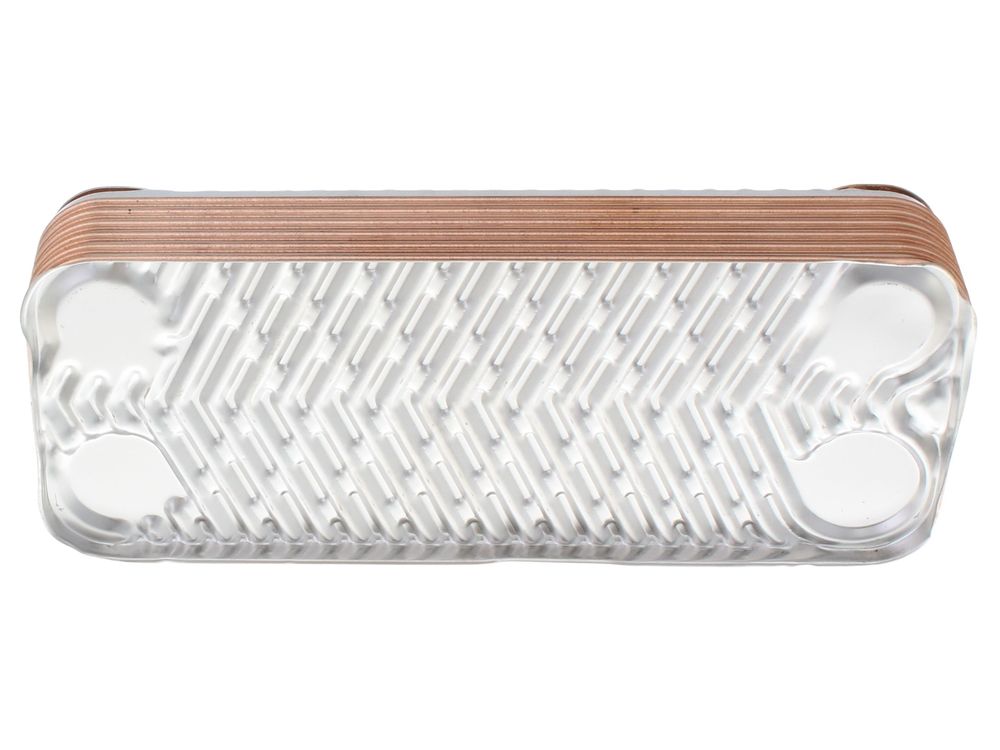

Ravenheat Plate Heat Exchanger SCA150150
Ravenheat SCA150150 plate heat exchanger for CS, HE and WH series gas boilers.
At a glance
- Also known as 1842025
£94.52
£78.77 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The SCA150150 is a plate heat exchanger manufactured by Ravenheat for use in its gas boiler range. It transfers heat between the primary circuit and the domestic hot water circuit, heating mains water as it passes through the plates. It is fitted across a number of Ravenheat CS, HE and WH models.
Signs this part needs replacing
- Domestic hot water runs hot then cold, or fluctuates at the tap
- Reduced hot water flow rate compared with normal operation
- Hot water temperature drops when a second outlet is opened
- Boiler locks out or overheats during a hot water draw
- Water weeping from the plate pack or its connections
Before you order
- Confirm your boiler model against the fitment list above
- Check the part number on the existing heat exchanger matches SCA150150
- Inspect the plate pack and connections for scale, debris or leakage before fitting
- Verify the appliance is the CS, HE or WH variant listed, as LPG and natural gas versions are listed separately
Compliance
| Alternative numbers | 1842025 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CS 80 | 47-581-46 | 47-581-46 | — | — |
| RAVENHEAT CS 80 (T) | 47-581-46 | 47-581-46 | — | — |
| RAVENHEAT CS 80 (T) LPG | 47-581-47 | 47-581-47 | — | — |
| RAVENHEAT CS 80 LPG | 47-581-47 | 47-581-47 | — | — |
| RAVENHEAT HE 25S COMPACT | — | — | — | |
| RAVENHEAT HE 80 | — | — | — | |
| RAVENHEAT HE 80 LPG | — | — | — | |
| RAVENHEAT HE 80 T | — | — | — | |
| RAVENHEAT HE 80 T LPG | — | — | — | |
| RAVENHEAT HE 80S | — | — | — |
Showing 10 of 22 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — CS 80 (GC 47-581-46), CS 80 (T) (GC 47-581-46), CS 80 (T) LPG (GC 47-581-47), CS 80 LPG (GC 47-581-47)
manualmanualRAVENHEAT appliance manual — HE 25S COMPACT
manualmanualRAVENHEAT appliance manual — HE 80, HE 80 LPG, HE 80 T, HE 80 T LPG
manualmanualRAVENHEAT appliance manual — HE 80S
manualmanualRAVENHEAT appliance manual — HE 80S SYSTEM, HE 80S SYSTEM LPG
manualmanualRAVENHEAT appliance manual — WHITE HEAT WH 80 LPG (GC 47-506-06), WHITE HEAT WH 80 NAT GAS (GC 47-506-05), WHITE HEAT WH 80 T LPG (GC 47-506-06), WHITE HEAT WH 80 T NAT GAS (GC 47-506-05)
manualNo technical questions yet for this part.
