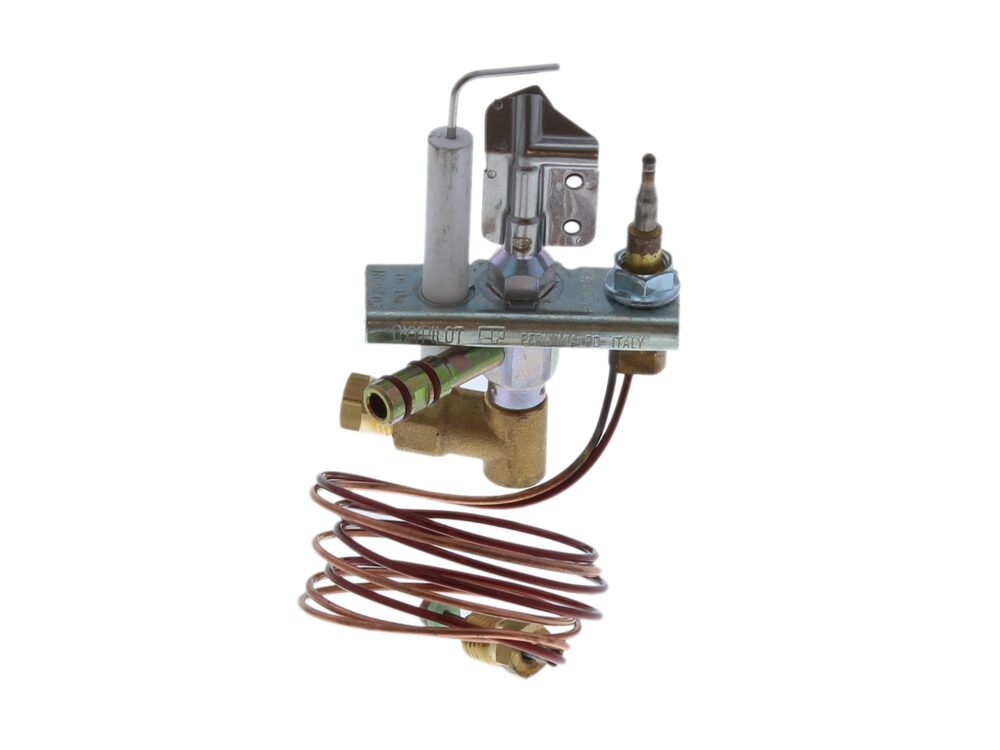

Glow-worm Pilot Assembly Oxypilot S451477
Glow-worm Oxypilot pilot assembly, part S451477, for BBU 40, 45/2, 45/2F, 50 and 56/2 back boiler units.
At a glance
- Part type: Pilot assembly (Oxypilot)
- Also known as 1336143
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£68.36
£56.97 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Glow-worm S451477 is a pilot assembly (Oxypilot) used to provide the standing flame that ignites the main burner on Glow-worm back boiler units. It sits in the combustion area of the appliance and carries the pilot injector, electrode and flame sensing arrangement that keeps the gas valve open while the pilot is proven. This is a gas-carrying component and is supplied as a direct replacement for the original assembly.
Signs this part needs replacing
- The pilot flame will not light, or goes out as soon as the control knob is released.
- A weak, yellow or lifting pilot flame instead of a steady blue flame.
- No spark at the electrode, or repeated ignition attempts with no flame established.
- Sooting or discolouration around the pilot and burner area.
- The pilot drops out during normal running, causing the appliance to lock out.
Before you order
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
- Check the appliance GC number against the compatibility list below before ordering.
- The assembly has previously been listed under part number 451477, so confirm the number marked on the existing pilot assembly.
- Note the appliance model and serial number so the correct variant can be confirmed.
Mechanical
| Part type | Pilot assembly (Oxypilot) |
|---|
Compliance
| Manufacturer part number (MPN) | S451477 |
|---|---|
| GC number | 191-310 |
| Barcode / EAN | 4024074501344 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 451477, 1336143 |
| Previous numbers | 451477 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GLOWWORM 40 BACK BOILER UNIT | 44-047-01 | 44-047-01 | — | — |
| GLOWWORM 45/2 BACK BOILER UNIT | 44-315-39 | 44-315-39 | — | — |
| GLOWWORM 45/2F BACK BOILER UNIT | 44-315-41 | 44-315-41 | — | — |
| GLOWWORM 50 BACK BOILER UNIT | 44-047-02 | 44-047-02 | — | — |
| GLOWWORM 56/2 BACK BOILER UNIT | 44-315-40 | 44-315-40 | — | — |
| GLOWWORM 56/2F BACK BOILER UNIT | 44-315-41 | 44-315-41 | — | — |
| GLOWWORM 56/3e BACK BOILER UNIT | 44-047-04 | 44-047-04 | — | — |
| GLOWWORM 56/3pp BACK BOILER UNIT | 44-047-03 | 44-047-03 | — | — |
| GLOWWORM GLOWWORM 45/2 BBU | — | — | — | |
| GLOWWORM GLOWWORM 45/2 F BBU | — | — | — |
Showing 10 of 26 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
GLOWWORM appliance manual — 45/2 BACK BOILER UNIT (GC 44-315-39)
manualmanualGLOWWORM appliance manual — 45/2F BACK BOILER UNIT (GC 44-315-41)
manualmanualGLOWWORM appliance manual — 56/2 BACK BOILER UNIT (GC 44-315-40)
manualmanualGLOWWORM appliance manual — 56/3e BACK BOILER UNIT (GC 44-047-04)
manualmanualGLOWWORM appliance manual — 56/3pp BACK BOILER UNIT (GC 44-047-03)
manualmanualGLOWWORM appliance manual — INSET BBU 40 (GC 44-047-01)
manualmanualGLOWWORM appliance manual — INSET BBU 50 (GC 44-047-02)
