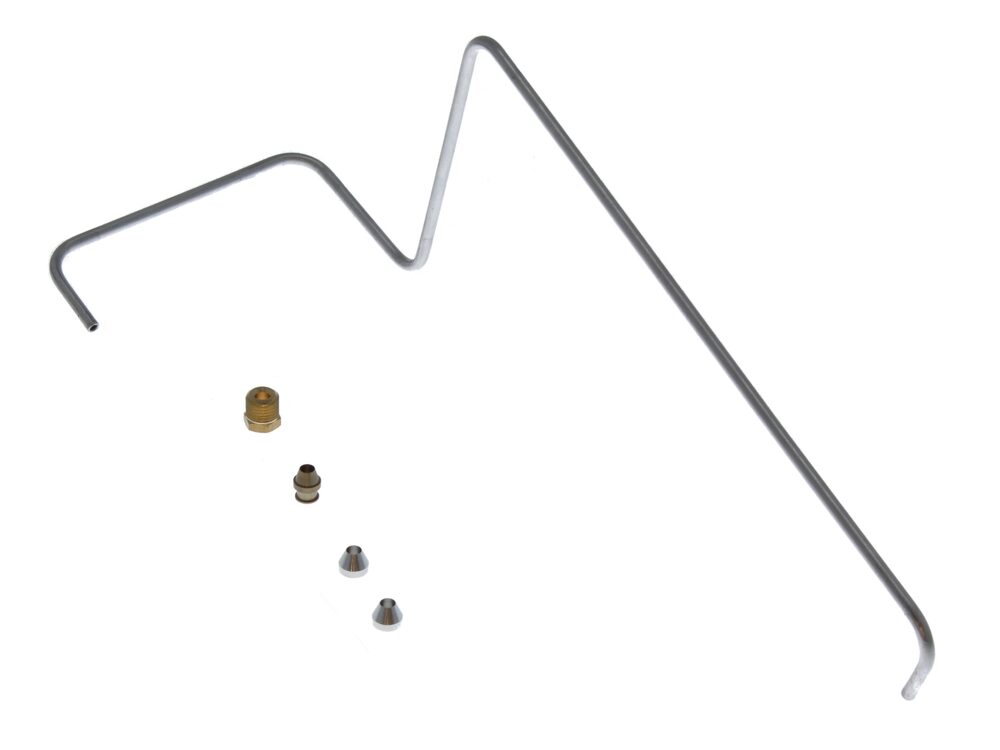

Johnson & Starley Pilot Tube Kit S01116
Pilot tube kit for Johnson & Starley Hispec and Jb25PB warm air units, part number S01116.
At a glance
- Also known as 1690556
£39.61
£33.01 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Pilot Tube Kit is a Johnson & Starley spare, identified by part number S01116. It forms part of the pilot burner assembly on Johnson & Starley Hispec and Jb25PB warm air units, supplying gas to the pilot flame that proves ignition before the main burner is allowed to fire.
Signs this part needs replacing
- The pilot flame will not stay lit and the appliance locks out
- The pilot flame is weak, unstable or noticeably yellow rather than a steady blue
- Visible cracking, kinking, crushing or corrosion on the pilot tube
- Sooting or discolouration around the pilot assembly
- Repeated ignition faults traced to the pilot feed
Before you order
- Check the appliance rating plate to confirm the model and GC number against the fit list above
- Confirm the mark number (Mk1 to Mk5) where your unit is listed by mark
- Compare the existing pilot tube routing and connections with the part before fitting
- If your model is not listed, check it against the manufacturer's parts list
Compliance
| GC number | E76-434 |
|---|---|
| Barcode / EAN | 5055189917712 |
| Alternative numbers | 1690556 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| JOHNSON & STARLEY HISPEC 20 WARM AIR UNIT | 42-451-03 | 42-451-03 | — | — |
| JOHNSON & STARLEY HISPEC J20 WARM AIR UNIT | 42-416-06 | 42-416-06 | — | — |
| JOHNSON & STARLEY HISPEC J30 WARM AIR UNIT | 42-416-05 | 42-416-05 | — | — |
| JOHNSON & STARLEY JB25PB MK1 WARM AIR UNIT | 42-416-01 | 42-416-01 | — | — |
| JOHNSON & STARLEY JB25PB Mk2 WARM AIR UNIT | 42-416-02 | 42-416-02 | — | — |
| JOHNSON & STARLEY JB25PB Mk3 WARM AIR UNIT | 42-416-03 | 42-416-03 | — | — |
| JOHNSON & STARLEY JB25PB Mk4 WARM AIR UNIT | 42-416-04 | 42-416-04 | — | — |
| JOHNSON & STARLEY JB25PB Mk5 WARM AIR UNIT | 42-416-13 | 42-416-13 | — | — |
| JOHNSON & STARLEY JOHNSON AND STARLEY HISPEC J30 | — | — | — | |
| JOHNSON & STARLEY JOHNSON AND STARLEY JB25-30 | — | — | — |
Showing 10 of 11 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
JOHNSON & STARLEY appliance manual — HISPEC J30 WARM AIR UNIT (GC 42-416-05)
manualmanualJOHNSON & STARLEY appliance manual — JB25PB MK1 WARM AIR UNIT (GC 42-416-01), JB25PB Mk2 WARM AIR UNIT (GC 42-416-02), JB25PB Mk3 WARM AIR UNIT (GC 42-416-03), JB25PB Mk4 WARM AIR UNIT (GC 42-416-04), JB25PB Mk5 WARM AIR UNIT (GC 42-416-13)
manualNo technical questions yet for this part.
