Satronic

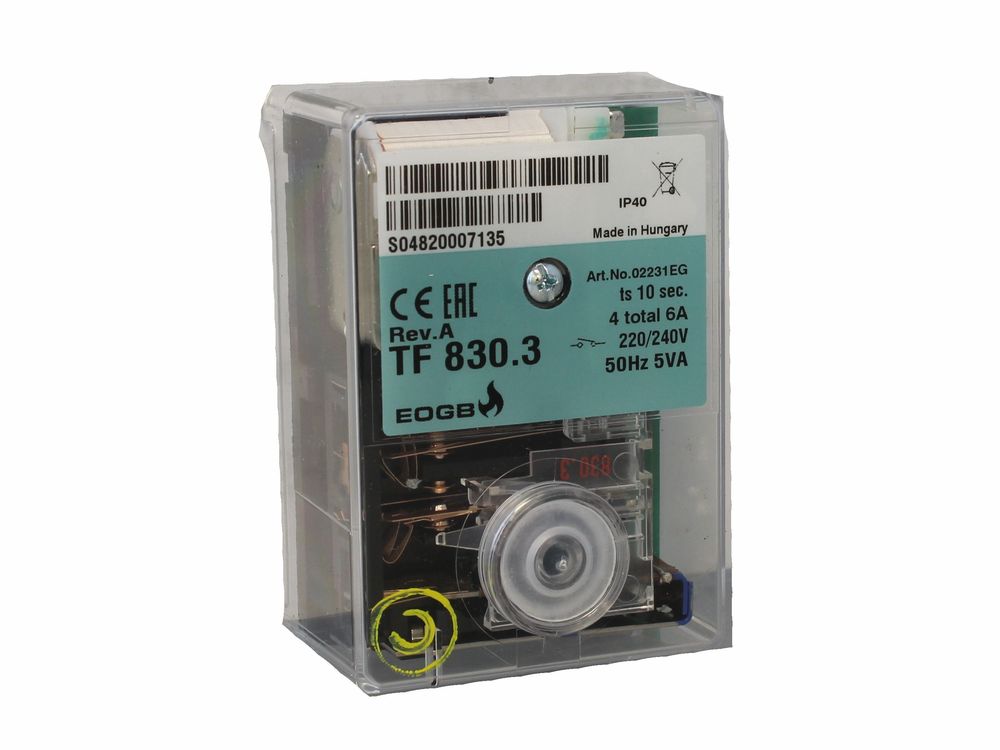

Satronic TF830.3 oil burner control box
A Satronic (Honeywell) TF830.3 single-stage control box for oil burners up to 30kg/h, providing start-up sequencing, flame supervision and lockout protection.
At a glance
- Also known as 3062280
£67.68
£56.40 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
A Satronic (Honeywell) TF830.3 control box for single-stage oil burners, operating on 220/240V. It manages the burner's start-up sequence, supervises the flame via a photocell, and locks the burner out safely if ignition or flame proving fails.
Signs this part needs replacing
- Burner fails to start or locks out during ignition
- Burner locks out repeatedly despite a good flame signal
- No response from the burner when calling for heat
- Visible damage to the control box housing or reset button
Before you order
- Match the part number printed on the control box you are replacing
- Isolate electrical power before removing the old control box
- Work should only be carried out by a competent oil-fired appliance engineer (OFTEC)
Compliance
| Alternative numbers | 3062280 |
|---|
No fitment data held for this part.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
