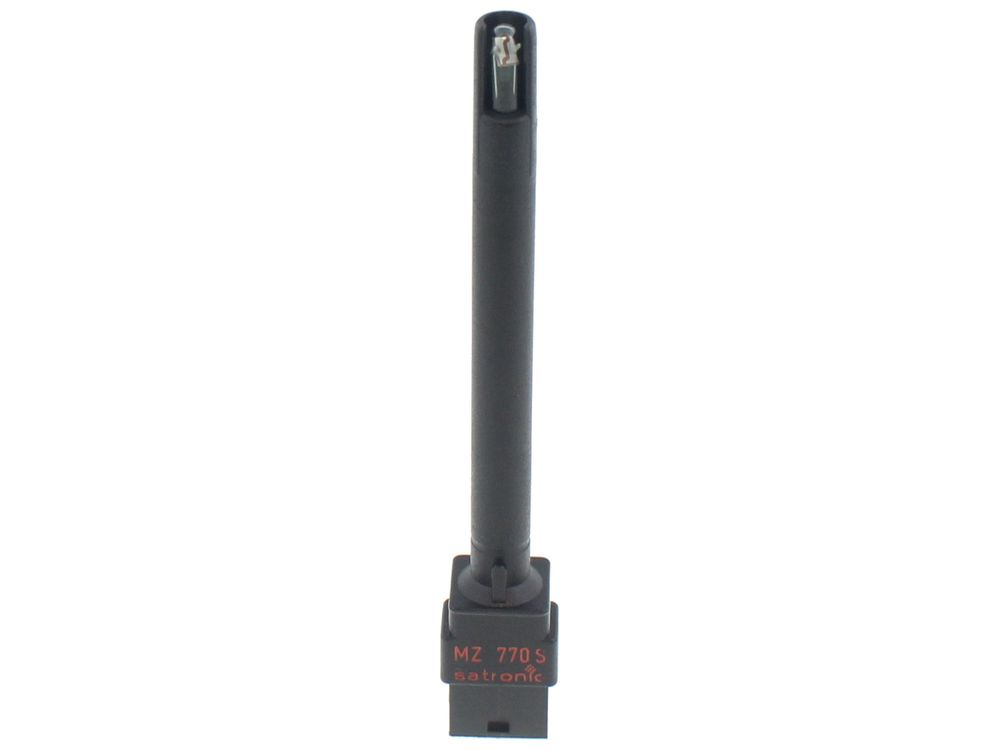

EOGB MZ770S-80 oil burner photocell
An 80mm EOGB photocell (MZ770S type) that monitors flame presence in oil burners, signalling the control box to continue firing or to lock out.
At a glance
- Also known as 2090058
£30.24
£25.20 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
An EOGB MZ770S-80 photocell, an 80mm flame-sensing photocell used in oil burner control systems. During start-up it checks the combustion chamber is free of stray light or flame before ignition, then continuously monitors the flame once lit, signalling the control box to lock the burner out if the flame is lost.
Signs this part needs replacing
- Burner locks out on flame failure despite a visibly good flame
- Burner fails to start due to a false stray-light detection
- Photocell body shows scorching, cracking or a damaged lead
- Engineer diagnosis of a weak or failed flame signal during fault-finding
Before you order
- Match the part number and lead length printed on the photocell you are replacing
- Isolate electrical power before removing the old photocell
- Work should only be carried out by a competent oil-fired appliance engineer (OFTEC)
Compliance
| Barcode / EAN | 4046911023260 |
|---|---|
| Alternative numbers | 2090058 |
No fitment data held for this part.
