Salus Controls

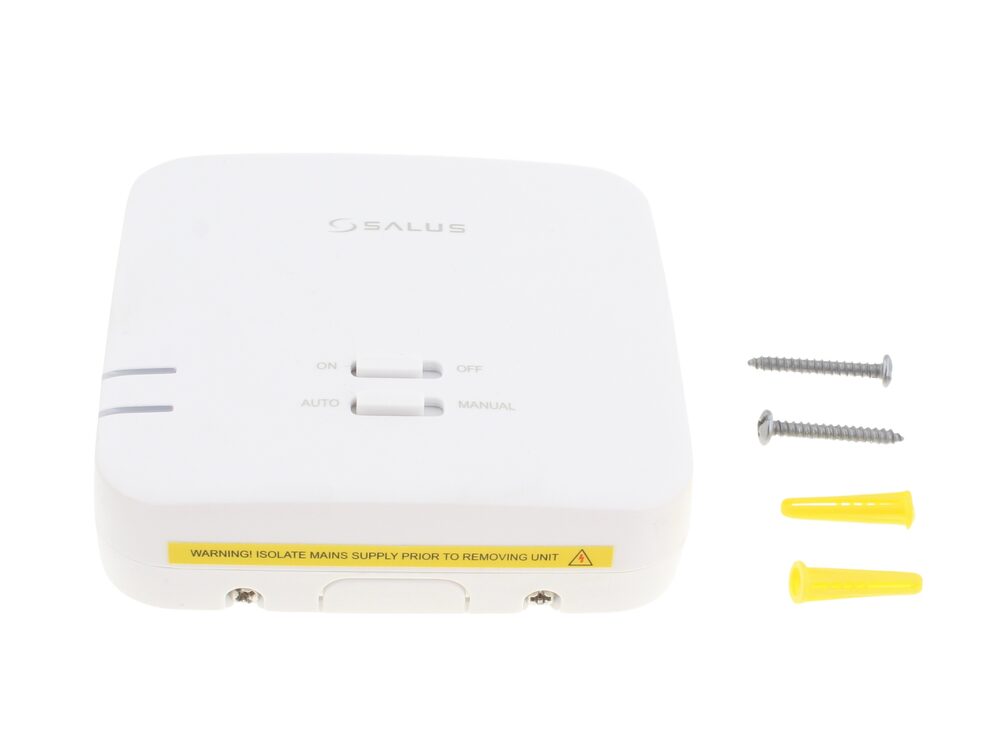

Salus RXRT510 RF Receiver (S-Series)
Salus Controls RXRT510 wall-mounted RF boiler receiver, 868MHz, 230V or volt free output, 16 (5) A switching, for Mix and Match thermostats.
At a glance
- Part type: Boiler receiver
- Also known as 5180096
£29.10
£24.25 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The RXRT510 is a wall-mounted radio frequency boiler receiver from Salus Controls. It pairs with a thermostat from the Mix and Match range and switches the boiler according to the demand signal it receives over 868MHz RF. The unit can be wired for either a 230V switched output or a volt free output, so it suits a wide spread of boiler control arrangements.
Signs this part needs replacing
- The boiler does not fire when the thermostat calls for heat, even though the thermostat display responds.
- Heating runs continuously and does not shut down when demand is removed.
- The receiver fails to respond to the thermostat after re-binding, or drops the pairing repeatedly.
- Manual override on the receiver has no effect on the boiler.
- Intermittent operation that tracks with distance from the thermostat or with the building fabric between the two units.
Before you order
- Confirm the existing receiver is an RXRT510 and note the wiring arrangement, since the replacement can be configured for 230V or volt free switching.
- Check the thermostat in use is from the Salus Controls Mix and Match range so the RF pairing will be supported.
- Allow for re-binding the thermostat to the new receiver after installation, and check the communication path between the two units is clear.
Mechanical
| Part type | Boiler receiver |
|---|
Performance
| Voltage | 230V / volt free |
|---|
Compliance
| Manufacturer part number (MPN) | RXRT510 |
|---|---|
| Commodity code | 8536 50 80 00 |
| GPC classification | Heating System Controls |
| Alternative numbers | 5180096 |
No fitment data held for this part.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
