Grant
Grant RBS36 Oil Line - Riello G5/Riello RDB/RDB BLU
Grant RBS36 flexible oil hose, 900 mm long with 1/4 in male and 3/8 in female connections, for the burner oil line on Grant oil boilers.
At a glance
- Part type: Flexible oil hose
- Also known as 2160596
£11.94
£9.95 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

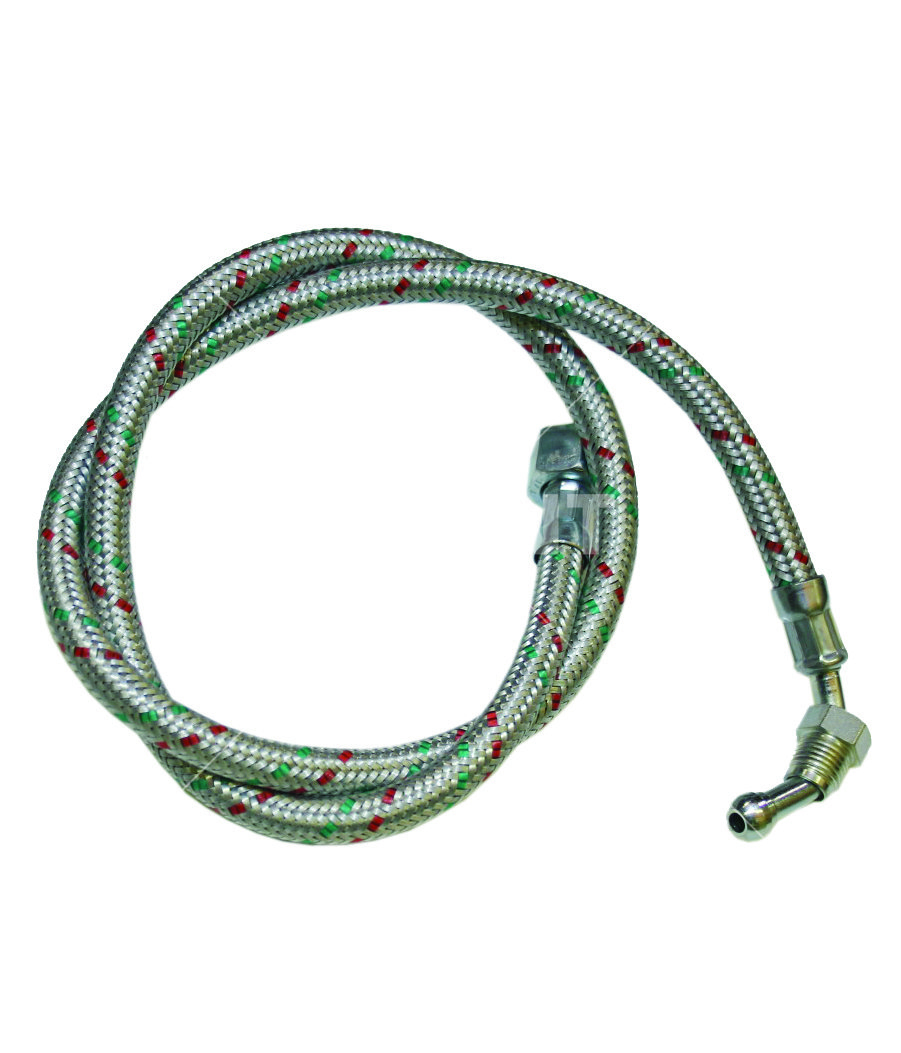

The Grant RBS36 is a flexible oil hose measuring 900 mm, fitted with a 1/4 inch male connection at one end and a 3/8 inch female connection at the other. It sits in the oil supply path on Grant oil boilers, joining the burner assembly to the rigid oil line so the pipework can flex without loading the unions. Grant lists it under the burner section of their oil boiler spares range.
Signs this part needs replacing
- Oil odour around the burner or inside the boiler casing
- Cracking, hardening or perishing visible on the hose outer
- Weeping or damp patches at the hose unions
- Air drawn into the oil line, giving rough starting, poor combustion or burner lockout
- Kinking, flattening or deformation where the hose bends
Before you order
- Check the burner model and the existing hose ends — 1/4 inch male and 3/8 inch female — match the replacement.
- Note the 900 mm length; a hose of a different length may not route correctly between the oil line and the burner.
- Have a suitable oil-resistant seal or washer to hand for the unions if the existing one is disturbed.
- Confirm RBS36 or the alternative number 2160596 against your boiler's spares listing.
Mechanical
| Part type | Pipes & Hoses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | RBS36 |
|---|---|
| Barcode / EAN | 5056003700268 |
| Commodity code | 4009 22 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 2160596 |
No fitment data held for this part.
