Unicrimp 32mm CW brass cable gland kit QCW32

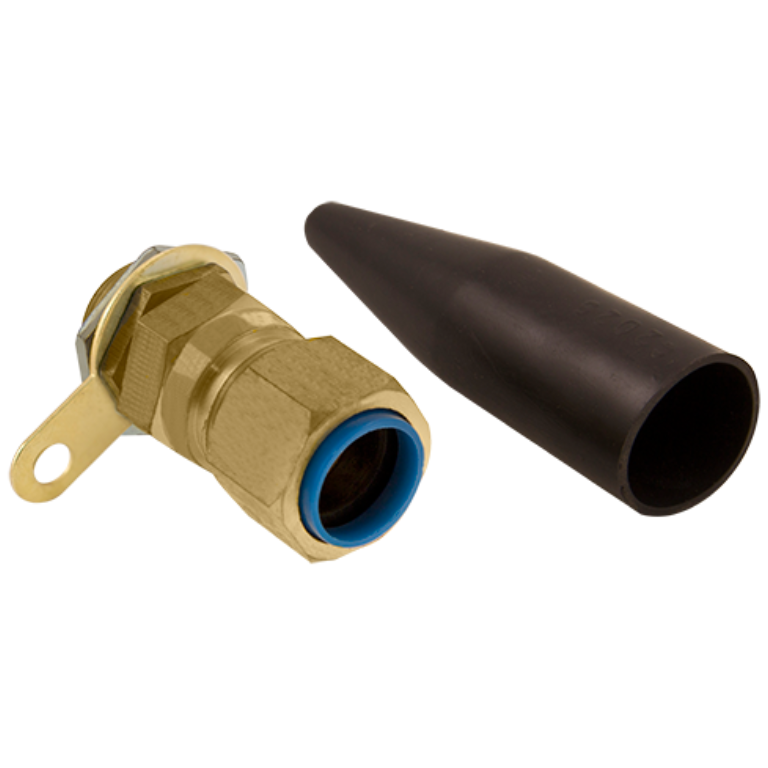

Unicrimp QCW32 CW-type cast brass cable gland kit, 32mm, for terminating steel wire armoured (SWA) cable. Supplied with shroud, earth tag and locknut.
At a glance
- Also known as 8011461
£21.68
£18.07 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Unicrimp QCW32 is a CW-type cable gland from the Q-Crimp range, cast in brass to BS2874 and approved to BS6121 part 1. CW glands seal onto the outer sheath of steel wire armoured (SWA) cable and provide mechanical retention and electrical continuity through the armour wires.
Signs this part needs replacing
- The gland body or shroud has cracked, corroded or lost its seal
- The armour clamping ring will no longer grip the cable armour securely
- The earth tag connection has loosened or corroded
Before you order
- Confirm the cable's armour and gland entry size match 32mm before ordering
- Isolate the circuit before disconnecting any armoured cable termination
- Check whether the enclosure also needs a matching locknut or adaptor
Compliance
| Alternative numbers | 8011461 |
|---|
No fitment data held for this part.
