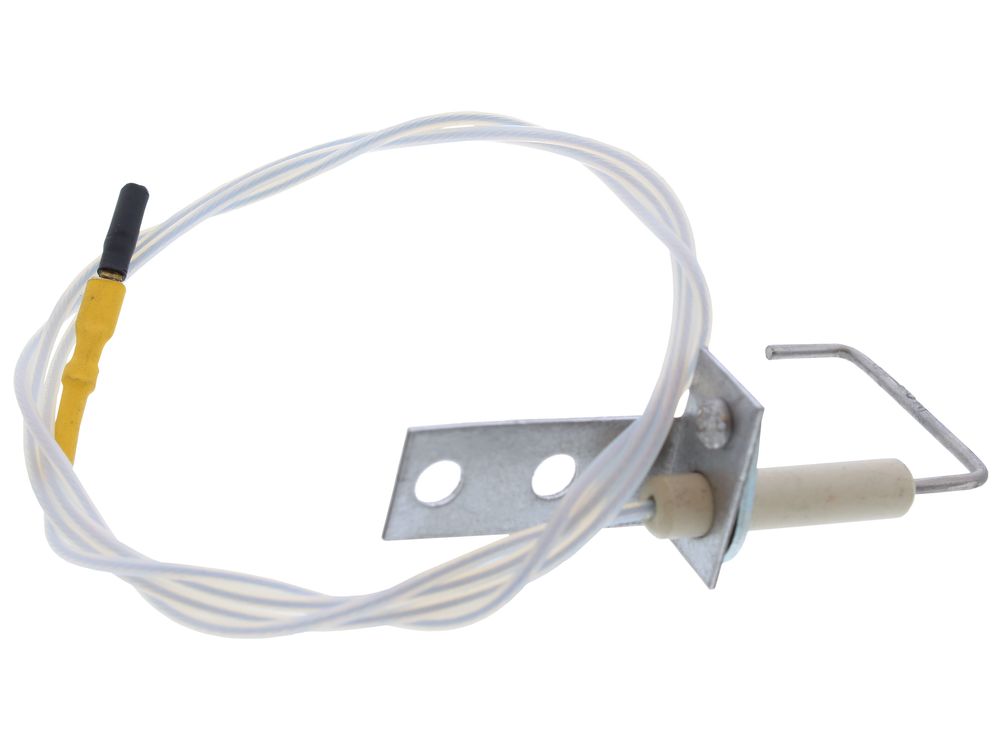

Johnson & Starley Electrode & Lead Combined PH/3
Combined pilot electrode and lead for Johnson & Starley J15-22 and J25-32 warm air units with Honeywell pilot and valve assemblies.
At a glance
- Also known as 1690542
Showing prices
£39.56
£32.97 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The PH/3 is a combined pilot electrode and lead supplied by Johnson & Starley. It delivers the ignition spark at the pilot burner and carries the HT connection through to the Honeywell pilot and valve assembly. It is used across the J15-22 and J25-32 warm air unit ranges.
Signs this part needs replacing
- The pilot burner fails to light, or lights and then goes out
- No spark is visible at the pilot electrode when ignition is called
- Ignition is intermittent, with the pilot striking only occasionally
- The electrode ceramic is cracked, chipped or heavily sooted
- The lead insulation is brittle, burnt or showing exposed conductor
Before you order
- Confirm the appliance is fitted with a Honeywell pilot and valve assembly
- Check the model and mark on the appliance data plate against the fit list
- Inspect the existing electrode and lead routing so the replacement follows the same path
- Isolate the gas supply and electrical supply before removing the old electrode
Compliance
| GC number | 245-276 |
|---|---|
| Barcode / EAN | 5055189912830 |
| Alternative numbers | 1690542 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| JOHNSON & STARLEY J15-22 WARM AIR UNIT - JANUS WATER HEATER | 43-416-23 | 43-416-23 | — | — |
| JOHNSON & STARLEY J15-22 MAF WARM AIR UNIT - JANUS WATER HEATER | 43-416-25 | 43-416-25 | — | — |
| JOHNSON & STARLEY J15-22 MAF WARM AIR UNIT | 42-417-03 | 42-417-03 | — | — |
| JOHNSON & STARLEY J15-22 MK3 WARM AIR UNIT - JANUS WATER HEATER | 43-416-27 | 43-416-27 | — | — |
| JOHNSON & STARLEY J15-22 MK3 MAF VI WARM AIR UNIT | 42-417-22 | 42-417-22 | — | — |
| JOHNSON & STARLEY J15-22 MK3 MAF VI WARM AIR UNIT - JANUS WATER HEATER | 43-416-41 | 43-416-41 | — | — |
| JOHNSON & STARLEY J15-22 MK3 MAF WARM AIR UNIT | 42-417-09 | 42-417-09 | — | — |
| JOHNSON & STARLEY J15-22 MK3 WARM AIR UNIT | 42-417-07 | 42-417-07 | — | — |
| JOHNSON & STARLEY J15-22 Mk3 WARM AIR UNIT - ELJAN WATER HEATER | 43-416-69 | 43-416-69 | — | — |
| JOHNSON & STARLEY J15-22 Mk3 WARM AIR UNIT - HIJAN WATER HEATER | 43-416-84 | 43-416-84 | — | — |
Showing 10 of 96 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
