Parkray Fire
Parkray low lift bottom grate bar, 99C range, P130354
Genuine Parkray low lift (large end) bottom grate bar for 99C-range solid fuel fires, one of the nine bars that make up the grate and riddling assembly.
At a glance
- Also known as 2400550
£19.94
£16.62 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

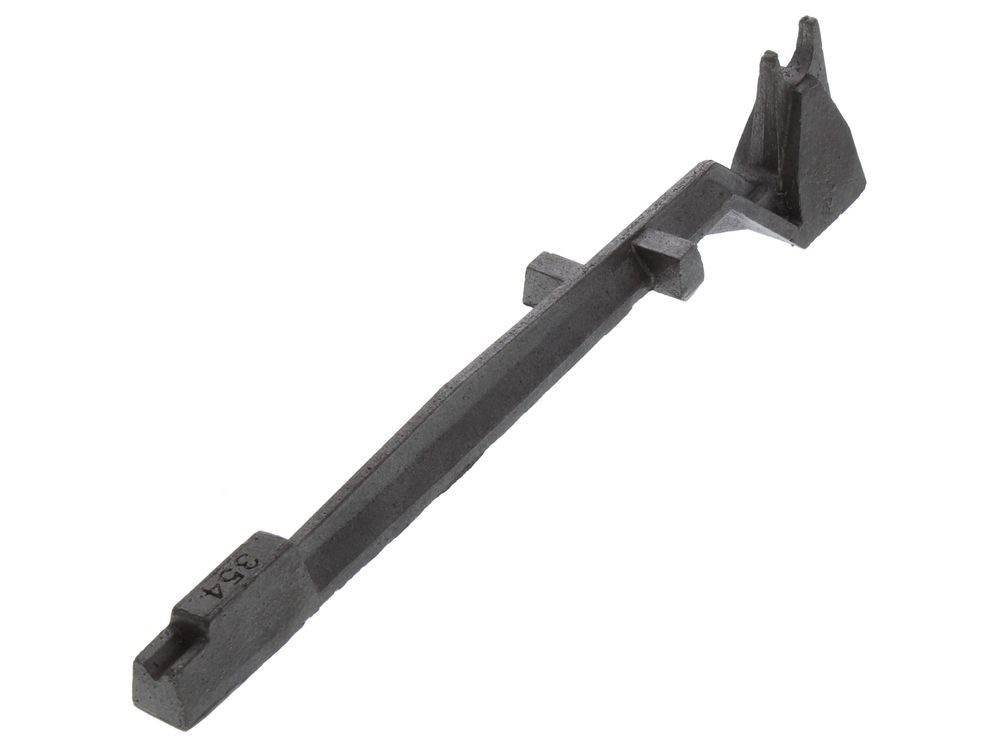

The P130354 is a genuine Parkray cast bottom grate bar for the 99C range of solid fuel roomheaters. A Parkray 99C grate set is built from nine bars — five "high lift" (small end) bars and four "low lift" (large end) bars — which interlock so the riddling mechanism can shake ash through the grate; the P130354 is one of the low lift bars in that set.
Signs this part needs replacing
- Bars fused together with clinker and won't riddle freely
- Visible cracking, warping or thinning of a bar
- Ash won't shake through the grate properly
- Uneven fuel bed or fire burning poorly at the base
Before you order
- Match the part number and bar profile to the bar you're replacing
- Confirm your appliance is a 99C-range model, not 88 or 111 range
- Note that grate bars expand slightly (10–20mm) with use, so a new bar can look shorter than a well-used original — this is normal
- Replace bars as a full set where more than one bar is worn, for even riddling
Compliance
| Barcode / EAN | 5060112880292 |
|---|---|
| Alternative numbers | 2400550 |
No fitment data held for this part.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
