Grant

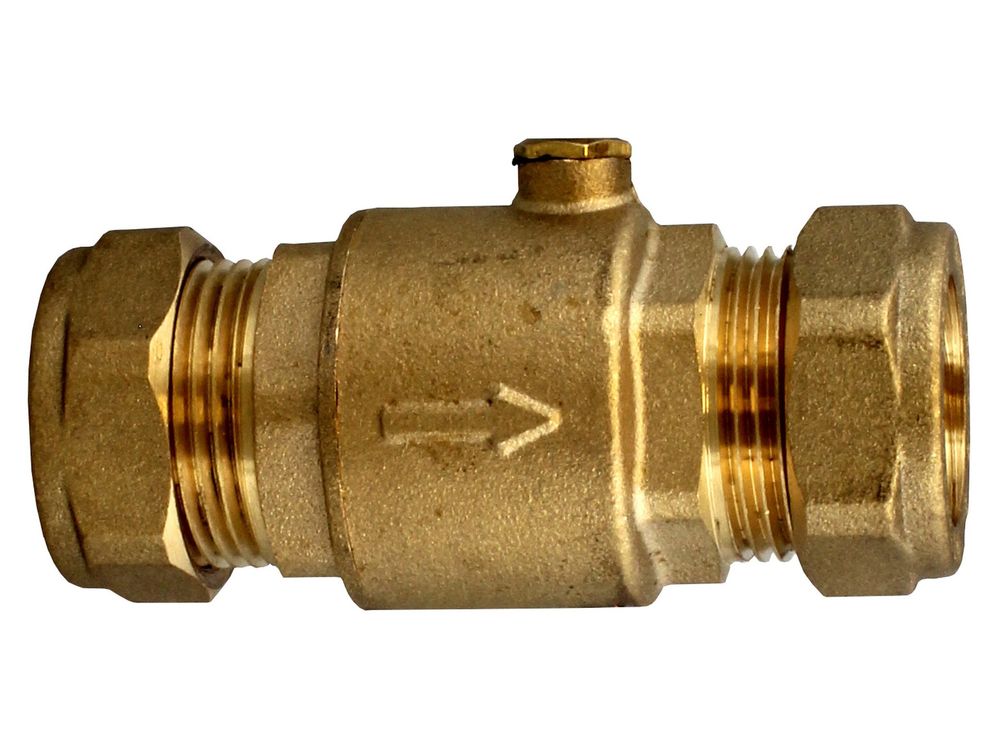

Grant Non Return Check Valve 22mm MPCBS26
22mm non-return check valve for Grant oil-fired combi boilers, preventing backflow in the heating circuit.
At a glance
- Also known as 2160422
£28.49
£23.74 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Grant MPCBS26 is a 22mm non-return check valve used on Grant oil-fired combi boilers. It sits in the heating circuit and permits flow in one direction only, closing off backflow when the pump stops. It is fitted across the Grant Combi and Vortex Pro combi ranges.
Signs this part needs replacing
- Water passes back through the circuit once the pump stops
- Unwanted gravity circulation, with heat reaching radiators or the hot water store when it should not
- Boiler short cycling or overheating caused by incorrect flow direction
- Knocking or banging in the pipework as flow reverses
- Weeping or visible leakage from the valve body
Before you order
- Confirm the pipework at the valve position is 22mm
- Check your boiler model against the fit list above
- Note the flow direction arrow on the existing valve before removal
- Inspect the circuit for scale or debris that may have caused the valve to fail
Compliance
| Barcode / EAN | 5056003701111 |
|---|---|
| Alternative numbers | 2160422 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GRANT COMBI 70 MKII BOILER | — | — | — | |
| GRANT COMBI 70 V3 BOILER | — | — | — | |
| GRANT COMBI 90 MKII BOILER | — | — | — | |
| GRANT COMBI 90 V3 BOILER | — | — | — | |
| GRANT COMBI MAX BOILER | — | — | — | |
| GRANT COMBI OUTDOOR 90 MKII BOILER | — | — | — | |
| GRANT GRANT: COMBI 90 V3 : | — | — | — | |
| GRANT GRANT: COMBI : 70 MK II | — | — | — | |
| GRANT GRANT: COMBI : 70 V3 | — | — | — | |
| GRANT GRANT: COMBI : 90 MK II | — | — | — |
Showing 10 of 24 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
GRANT appliance manual — COMBI 70 MKII BOILER, COMBI 90 MKII BOILER, COMBI OUTDOOR 90 MKII BOILER
manualmanualGRANT appliance manual — COMBI 70 V3 BOILER, COMBI 90 V3 BOILER
manualmanualGRANT appliance manual — COMBI MAX BOILER
manualmanualGRANT appliance manual — VORTEX PRO EXTERNAL CONDENSING COMBI 21E BOILER, VORTEX PRO EXTERNAL CONDENSING COMBI 26E BOILER, VORTEX PRO EXTERNAL CONDENSING COMBI 36E BOILER
manualmanualGRANT appliance manual — VORTEX PRO INTERNAL CONDENSING COMBI 21E BOILER, VORTEX PRO INTERNAL CONDENSING COMBI 26E BOILER, VORTEX PRO INTERNAL CONDENSING COMBI 36E BOILER
manualNo technical questions yet for this part.
