Grant Diverter Valve MPCBS20/A
Grant diverter valve MPCBS20/A for Grant Combi 70, 90 and Max boilers, directing water flow between heating and hot water circuits.
At a glance
- Part type: Diverter and motorised valves
- Also known as 2160005
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£355.99
£296.66 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

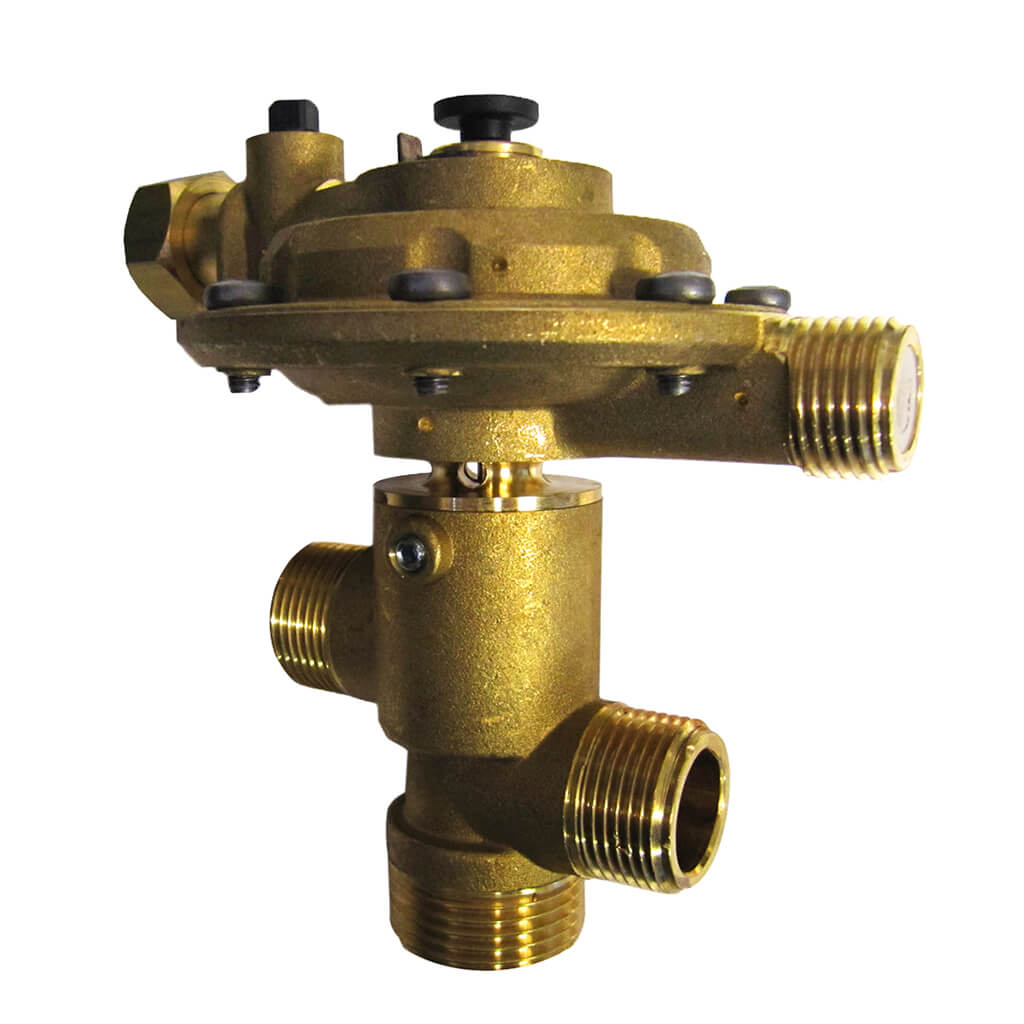

The Grant diverter valve MPCBS20/A is a hydraulic component used in Grant combi appliances. It sits in the water circuit and directs flow between the domestic hot water and heating sides of the boiler, so the appliance delivers hot water on demand and switches back to heating without cross-flow. It is supplied as a Grant Spares part and is listed under the diverter and motorised valve group.
Signs this part needs replacing
- Hot water runs cold or fluctuates while the heating is calling for heat
- Radiators warm up when a hot tap is opened, indicating the valve is passing
- The valve head does not move or is slow to change position between heating and hot water
- Domestic hot water temperature drops when another outlet is used
- Water weeping from the valve body or around the actuator head
Before you order
- Confirm the appliance model and serial number against the compatibility list before ordering
- Check the existing valve is marked MPCBS20 or MPCBS20/A, as the earlier MPCBS20 number is listed against this part
- Inspect the seals and washers on the valve body and replace them if they are compressed or perished
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Diverter & Motorised Valves |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | MPCBS20/A |
|---|---|
| GPC classification | Valves/Fittings - Water and Gas |
| Alternative numbers | DIVERTER-VALVE, MPCBS20, 2160005 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GRANT COMBI 70 MKII BOILER | — | — | — | |
| GRANT COMBI 70 V3 BOILER | — | — | — | |
| GRANT COMBI 90 MKII BOILER | — | — | — | |
| GRANT COMBI 90 V3 BOILER | — | — | — | |
| GRANT COMBI MAX BOILER | — | — | — | |
| GRANT COMBI OUTDOOR 90 MKII BOILER | — | — | — | |
| GRANT GRANT: COMBI 90 V3 : | — | — | — | |
| GRANT GRANT: COMBI : 70 MK II | — | — | — | |
| GRANT GRANT: COMBI : 70 V3 | — | — | — | |
| GRANT GRANT: COMBI : 90 MK II | — | — | — |
Showing 10 of 12 compatible appliances.
