Ravenheat

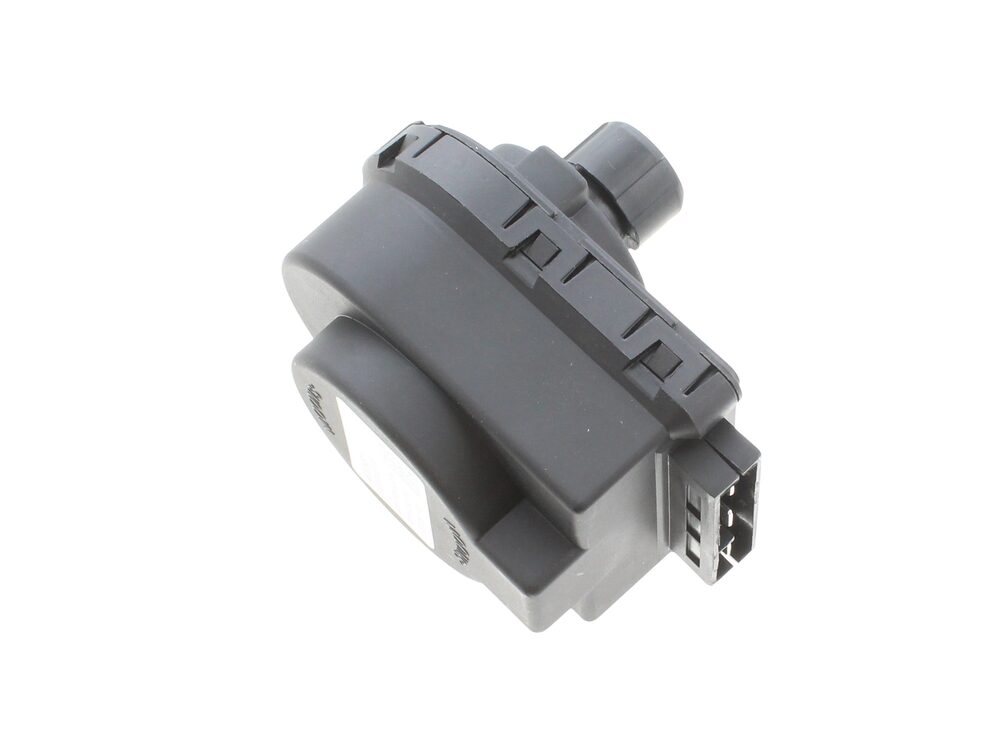

Ravenheat Diverter Valve Motor MOT150050
Ravenheat diverter valve motor, part number MOT150050, for CS, HE and White HEAT series gas boilers.
At a glance
- Also known as 1842043
£62.29
£51.91 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat MOT150050 is a diverter valve motor used on Ravenheat gas boilers. It drives the diverter valve to switch the appliance between central heating and domestic hot water operation. The motor is supplied as a service component for the CS, HE and White HEAT ranges.
Signs this part needs replacing
- Domestic hot water runs cold or fails to reach temperature while the heating is running
- Radiators heat up when only hot water is demanded
- The diverter valve does not move when the boiler switches between heating and hot water modes
- The motor runs continuously, stalls or makes unusual noise during mode changeover
- The boiler locks out or fails to complete a hot water or heating cycle
Before you order
- Confirm your boiler model against the fit list above, as the same motor is used across several Ravenheat ranges
- Check the part number on the existing motor or valve assembly before ordering
- Confirm whether the fault lies with the motor or the valve body, as these are separate components
- Isolate the electrical supply to the boiler before carrying out any inspection or replacement work
Compliance
| Alternative numbers | 1842043 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CS 80 | 47-581-46 | 47-581-46 | — | — |
| RAVENHEAT CS 80 (T) | 47-581-46 | 47-581-46 | — | — |
| RAVENHEAT CS 80 (T) LPG | 47-581-47 | 47-581-47 | — | — |
| RAVENHEAT CS 80 LPG | 47-581-47 | 47-581-47 | — | — |
| RAVENHEAT CS 90 | 47-581-48 | 47-581-48 | — | — |
| RAVENHEAT CS 90 (T) | 47-581-48 | 47-581-48 | — | — |
| RAVENHEAT CS 90 (T) LPG | 47-581-49 | 47-581-49 | — | — |
| RAVENHEAT CS 90 LPG | 47-581-49 | 47-581-49 | — | — |
| RAVENHEAT HE 25S COMPACT | — | — | — | |
| RAVENHEAT HE 30S COMPACT | — | — | — |
Showing 10 of 40 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — CS 80 (GC 47-581-46), CS 80 (T) (GC 47-581-46), CS 80 (T) LPG (GC 47-581-47), CS 80 LPG (GC 47-581-47), CS 90 (GC 47-581-48), CS 90 (T) (GC 47-581-48), CS 90 (T) LPG (GC 47-581-49), CS 90 LPG (GC 47-581-49)
manualmanualRAVENHEAT appliance manual — HE 25S COMPACT, HE 30S COMPACT
manualmanualRAVENHEAT appliance manual — HE 80, HE 80 LPG, HE 80 T, HE 80 T LPG, HE 98, HE 98 LPG, HE 98 T, HE 98 T LPG
manualmanualRAVENHEAT appliance manual — HE 80S SYSTEM, HE 80S SYSTEM LPG, HE 98S SYSTEM, HE 98S SYSTEM LPG
manualmanualRAVENHEAT appliance manual — HE 80S, HE 98S
manualmanualRAVENHEAT appliance manual — WHITE HEAT WH 80 LPG (GC 47-506-06), WHITE HEAT WH 80 NAT GAS (GC 47-506-05), WHITE HEAT WH 80 T LPG (GC 47-506-06), WHITE HEAT WH 80 T NAT GAS (GC 47-506-05), WHITE HEAT WH 90 LPG (GC 47-506-08), WHITE HEAT WH 90 NAT GAS (GC 47-506-07), WHITE HEAT WH 90 T LPG (GC 47-506-08), WHITE HEAT WH 90 T NAT GAS (GC 47-506-07)
manualNo technical questions yet for this part.
