Teddington Systems

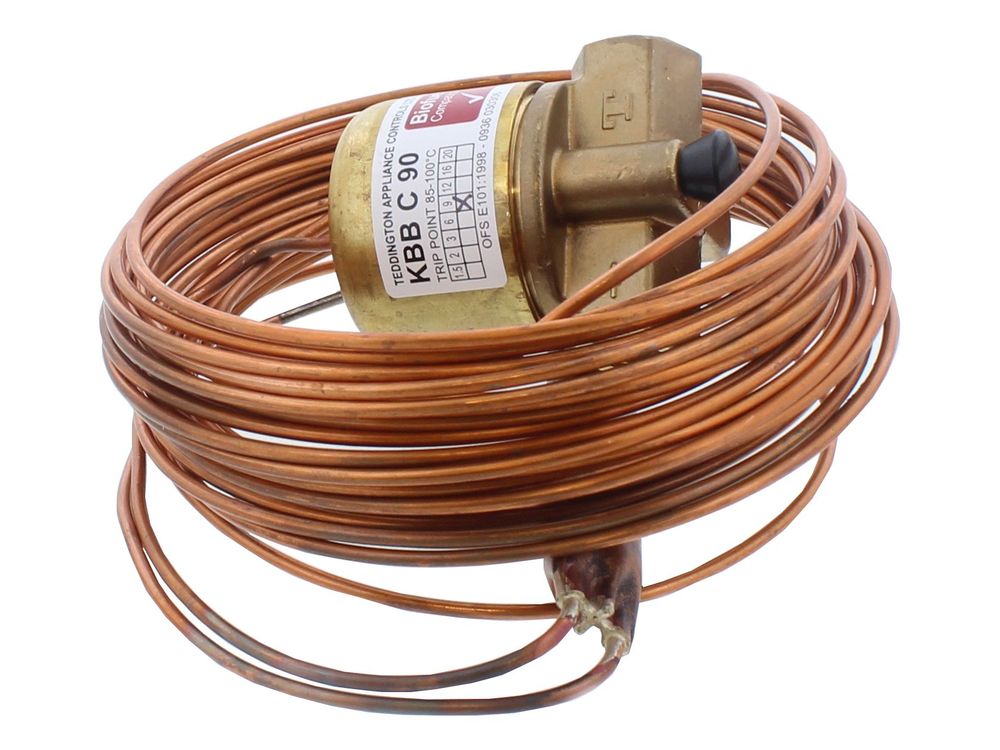

Teddington KBB/C/90 9.0m fire valve
Teddington KBB/C/90 fire valve with a 9.0m capillary, 90C thermal shut-off for oil-fired heating appliances.
At a glance
- Also known as 6090004
£77.76
£64.80 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Teddington KBB/C/90 is a fast-acting, thermally operated fire safety valve for oil-fired heating appliances. It uses a sealed bellows, capillary tube and sensor phial to trip a spring-loaded shut-off if the temperature at the sensor exceeds 90C, cutting the oil supply to the appliance. This 9.0m version has a 9-metre capillary run between the valve body and sensor phial.
Signs this part needs replacing
- Valve has tripped and will not reset
- Reset button is stiff, seized or does not hold
- Visible damage, kinking or corrosion on the capillary tube
- Fuel supply cuts out intermittently with no overheat cause found
Before you order
- Match the capillary length and connection thread to your existing valve before ordering
- Isolate the appliance and shut off the oil supply before removing the old valve
- Fit the sensor phial firmly inside the appliance above the burner, per the installation instructions
- Test operation with a proper test unit after fitting; do not bypass the valve
Compliance
| Barcode / EAN | 5060297080166 |
|---|---|
| Alternative numbers | 6090004 |
No fitment data held for this part.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
