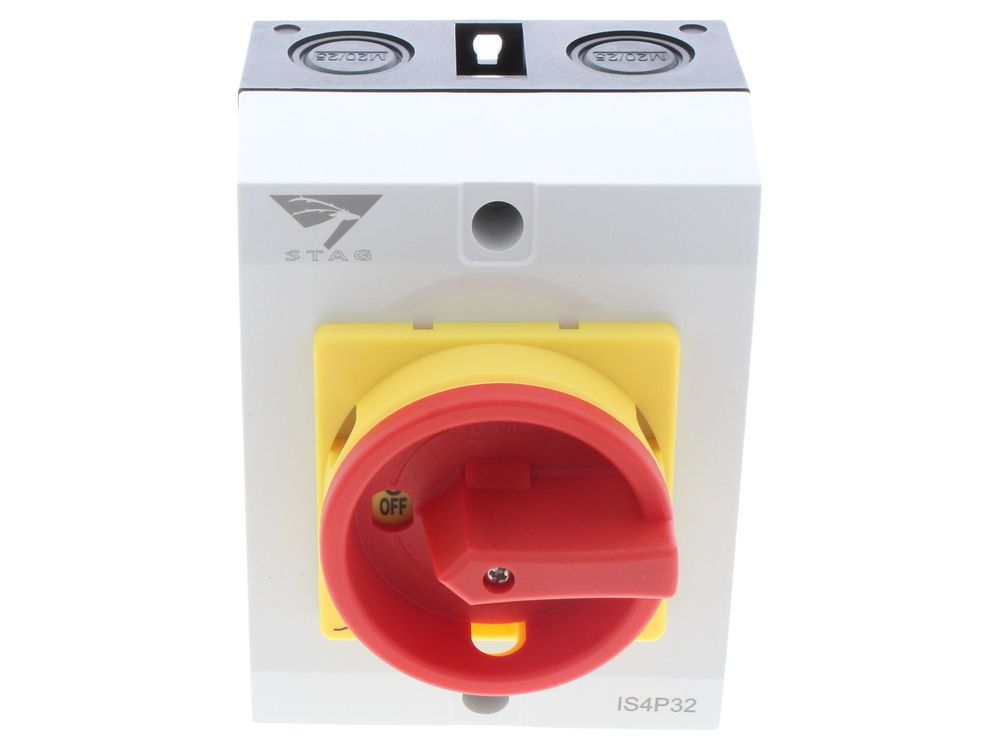

Stag IS4P32 32A 4-pole enclosed rotary isolator switch IP65
IP65-rated 32A four-pole rotary isolator switch in a flame-retardant enclosure, 125 x 100 x 85mm, for isolating motor and electrical circuits. Stag part number IS4P32.
At a glance
- Also known as 8010996
£26.57
£22.14 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Stag IS4P32 is a 32A, 4-pole rotary isolator switch in an enclosed, IP65-rated housing, built from flame-retardant material to IEC 60947 and UKCA/CE approved. The rotary handle is lockable and the isolator only opens in the OFF position, giving safe load-break isolation of a circuit.
Signs this part needs replacing
- Rotary handle feels loose, stiff, or fails to lock in the OFF position
- Enclosure lid or seal is cracked, letting in moisture or dust
- Visible arcing, scorch marks or a burning smell around the terminals
- Switch no longer fully isolates the circuit when turned to OFF
Before you order
- Match the existing isolator's current rating, pole count and enclosure dimensions before ordering a replacement
- Isolate and lock off the supply before removing the old switch
- Have the work carried out or verified by a competent, qualified electrician
Compliance
| Alternative numbers | 8010996 |
|---|
No fitment data held for this part.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
