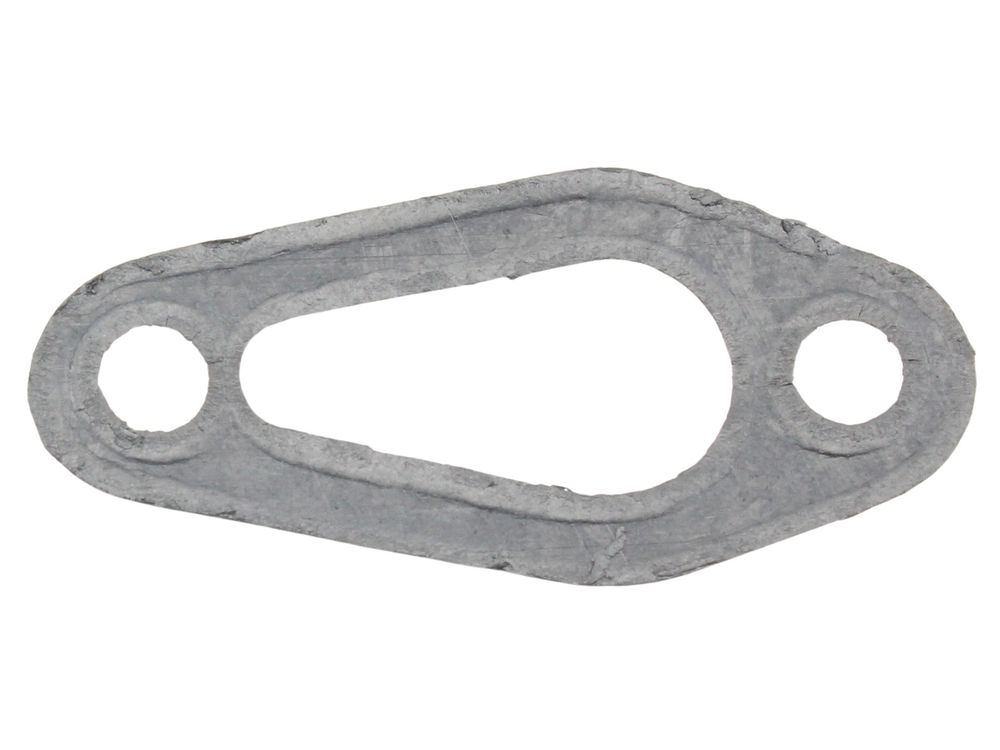

Ravenheat Sensing/Spark Electrode Gasket GUA150050
Ravenheat sensing/spark electrode gasket, part number GUA150050, for use in Ravenheat CS, HE and WH boiler ranges.
At a glance
- Part type: gasket for sensing/spark electrode
- Also known as 1842161
£1.75
£1.46 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ravenheat GUA150050 is a gasket for the sensing/spark electrode assembly. It seals the electrode mounting point on Ravenheat gas boilers, protecting the combustion chamber joint from leakage. It is a small consumable part that should be renewed whenever the electrode is removed or replaced.
Signs this part needs replacing
- Visible cracking, hardening or flattening of the gasket material
- Signs of combustion leakage or staining around the electrode mounting point
- The gasket breaks up or crumbles when the electrode is removed
- The electrode has been disturbed or replaced and the old gasket cannot be reused
- A poor seal causing unstable flame sensing or ignition faults
Before you order
- Confirm the boiler model and GC number against the fitment list
- Check the existing electrode and gasket arrangement before removal
- Verify the part number GUA150050 matches the item being replaced
- Isolate the gas and power supply before any work on the combustion circuit
Compliance
| Alternative numbers | 1842161 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RAVENHEAT CS 80 | 47-581-46 | 47-581-46 | — | — |
| RAVENHEAT CS 80 (T) | 47-581-46 | 47-581-46 | — | — |
| RAVENHEAT CS 80 (T) LPG | 47-581-47 | 47-581-47 | — | — |
| RAVENHEAT CS 80 LPG | 47-581-47 | 47-581-47 | — | — |
| RAVENHEAT CS 90 | 47-581-48 | 47-581-48 | — | — |
| RAVENHEAT CS 90 (T) | 47-581-48 | 47-581-48 | — | — |
| RAVENHEAT CS 90 (T) LPG | 47-581-49 | 47-581-49 | — | — |
| RAVENHEAT CS 90 LPG | 47-581-49 | 47-581-49 | — | — |
| RAVENHEAT CS SYSTEM 3-20 | — | — | — | |
| RAVENHEAT CS SYSTEM 3-20 LPG | — | — | — |
Showing 10 of 48 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RAVENHEAT appliance manual — CS 80 (GC 47-581-46), CS 80 (T) (GC 47-581-46), CS 80 (T) LPG (GC 47-581-47), CS 80 LPG (GC 47-581-47), CS 90 (GC 47-581-48), CS 90 (T) (GC 47-581-48), CS 90 (T) LPG (GC 47-581-49), CS 90 LPG (GC 47-581-49)
manualmanualRAVENHEAT appliance manual — CS SYSTEM 3-20, CS SYSTEM 3-20 LPG, CS SYSTEM 4-24, CS SYSTEM 4-24 LPG, WH SYSTEM 3-20, WH SYSTEM 3-20 LPG, WH SYSTEM 4-24, WH SYSTEM 4-24 LPG
manualmanualRAVENHEAT appliance manual — HE 25S COMPACT, HE 30S COMPACT
manualmanualRAVENHEAT appliance manual — HE 80, HE 80 LPG, HE 80 T, HE 80 T LPG, HE 98, HE 98 LPG, HE 98 T, HE 98 T LPG
manualmanualRAVENHEAT appliance manual — HE 80S SYSTEM, HE 80S SYSTEM LPG, HE 98S SYSTEM, HE 98S SYSTEM LPG
manualmanualRAVENHEAT appliance manual — HE 80S, HE 98S
manualmanualRAVENHEAT appliance manual — WHITE HEAT WH 80 LPG (GC 47-506-06), WHITE HEAT WH 80 NAT GAS (GC 47-506-05), WHITE HEAT WH 80 T LPG (GC 47-506-06), WHITE HEAT WH 80 T NAT GAS (GC 47-506-05), WHITE HEAT WH 90 LPG (GC 47-506-08), WHITE HEAT WH 90 NAT GAS (GC 47-506-07), WHITE HEAT WH 90 T LPG (GC 47-506-08), WHITE HEAT WH 90 T NAT GAS (GC 47-506-07)
manualNo technical questions yet for this part.
