Gledhill

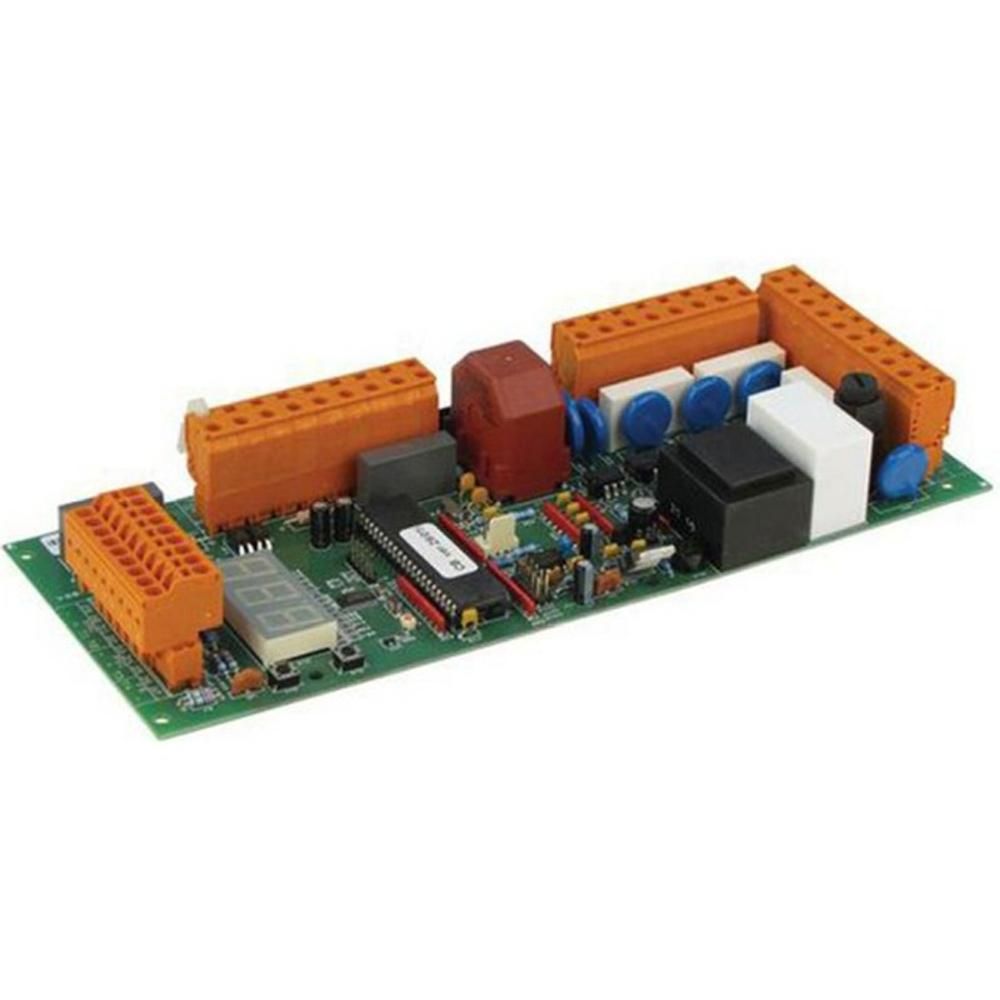

Gledhill Appliance Control PCB BoilerMate 2000 GT155
Gledhill GT155 appliance control PCB for BoilerMate 2000 and BoilerMate III thermal stores, handling central heating and mains pressure hot water control.
At a glance
- Part type: Printed circuit board (PCB)
- Appliance family: Gledhill BoilerMate
- Also known as 2000048, N0384-1
£402.48
£335.40 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Gledhill GT155 is an appliance control printed circuit board (PCB) supplied for the BoilerMate range of thermal stores. It carries the control circuitry that governs the operation of central heating and mains pressure hot water systems within the appliance. Gledhill lists it as the control board for the BoilerMate 2000 and other models in the same family, and it is the board to specify when the existing control PCB has failed.
Signs this part needs replacing
- No central heating or no hot water even though the appliance is powered up
- Control panel unresponsive, blank display or buttons having no effect
- Repeated error or lockout codes that clear only temporarily
- Pump or boiler not firing when there is a call for heat or hot water
- Intermittent running, with the appliance cutting out part way through a cycle
Before you order
- Confirm the appliance model against the compatibility list before ordering, as the board is listed for a number of BoilerMate variants
- Check the markings on the board currently fitted against the alternative numbers 2000048 and N0384-1
- Note the connector positions and any revision markings on the existing board before removal so the replacement can be matched to the wiring loom
- Isolate the appliance from the electrical supply before removing or fitting the board
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Appliance family | BoilerMate |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | GT155 |
|---|---|
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 2000048, N0384-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GLEDHILL BOILERMATE 2000 | — | — | — | |
| GLEDHILL BOILERMATE 2000 | — | — | — | |
| GLEDHILL BOILERMATE III | — | — | — | |
| GLEDHILL BOILERMATE III (3) | — | — | — | |
| GLEDHILL Boilermate 2000 | — | — | — | |
| GLEDHILL Boilermate III | — | — | — | |
| GLEDHILL ELECTRAMATE 2000 12KW | — | — | — | |
| GLEDHILL ELECTRAMATE 2000 9KW | — | — | — | |
| GLEDHILL ELECTRMATE 2000 12kW | — | — | — | |
| GLEDHILL ELECTRMATE 2000 9kW | — | — | — |
Showing 10 of 16 compatible appliances.
