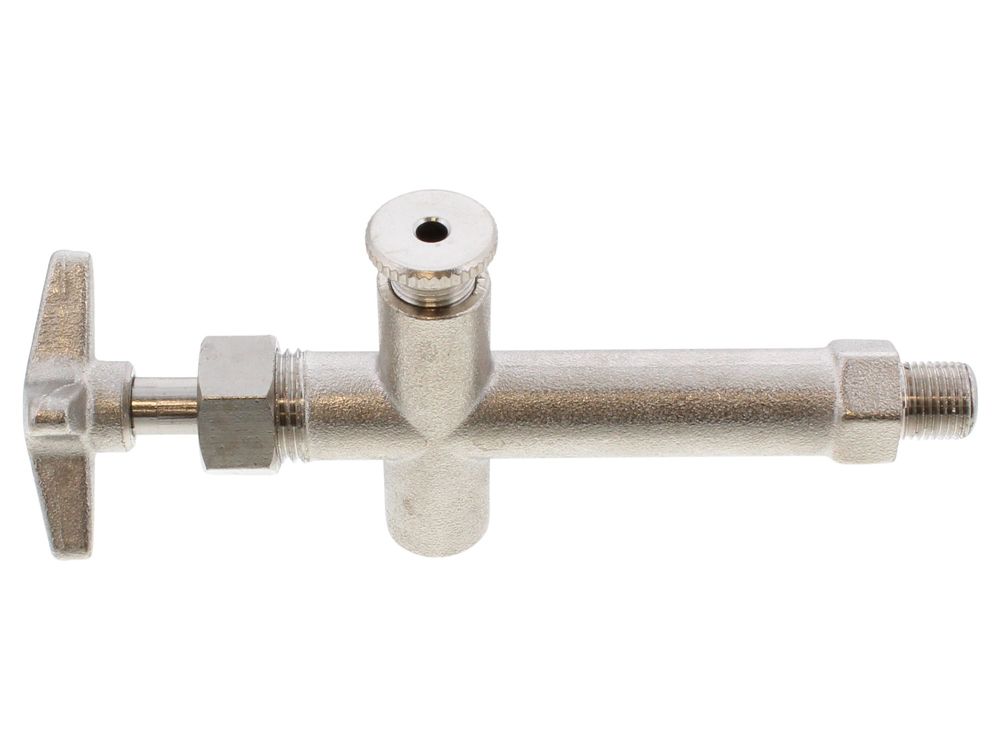

Nuway Pressure Gauge Manifold E16001L

The Nuway E16001L is a pressure gauge manifold (catalogue reference SW804) with a 1/8 in connection, used on Nuway ZL2 series oil burners. It provides the mounting and tapping point for pressure measurement on the burner, allowing pump and nozzle pressures to be checked during commissioning and service. It is a serviceable spare part rather than a general-purpose fitting, so the connection size and burner range must be matched before ordering.

• Pressure readings that fluctuate or fail to hold steady when the burner is running
• Oil weeping or a visible leak around the manifold body or its connections
• Damaged, stripped or cross-threaded connection threads
• Difficulty obtaining a stable reading during burner commissioning or servicing
• Physical damage or corrosion to the manifold body

• Confirm the burner model is a Nuway ZL2, ZL2D or ZL2D high/low unit
• Check the connection size on the existing manifold is 1/8 in
• Confirm the part number E16001L or catalogue reference SW804 against the old component
• Check whether the pressure gauge itself is being replaced at the same time
