Danfoss

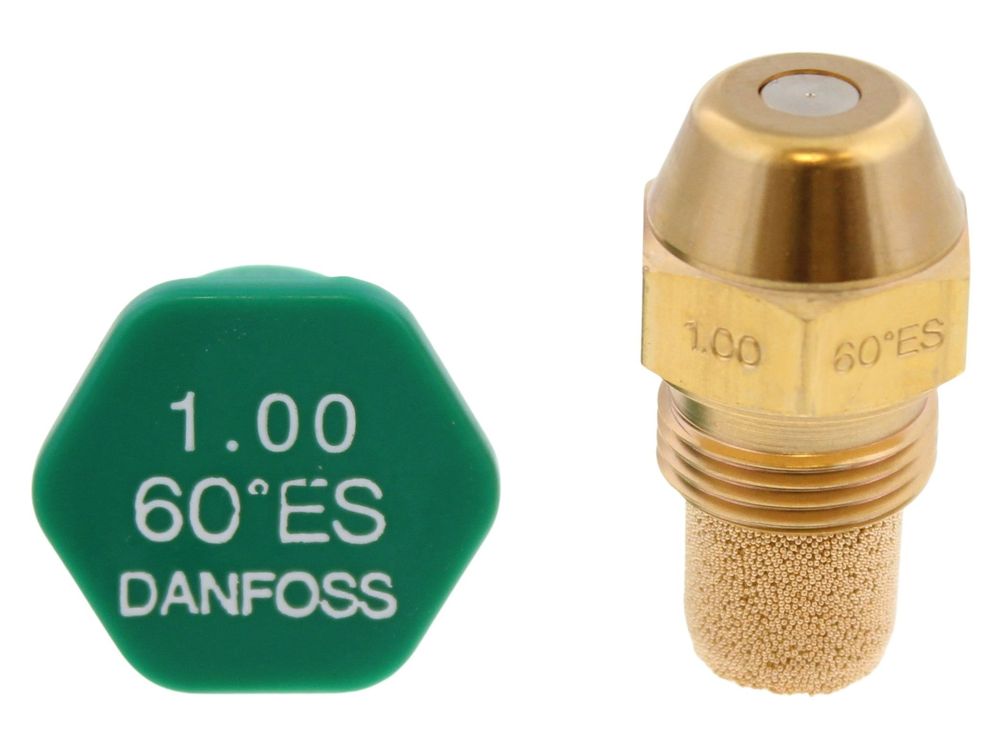

Danfoss Oil Nozzle D01-030F6320
Danfoss oil nozzle, 1.00 x 60 ES, for EOGB Danfoss oil-fired boiler applications.
At a glance
- Part type: oil nozzle
- Also known as 3025344
£9.58
£7.98 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Danfoss 1.00 x 60 ES is an oil nozzle used in oil-fired boiler applications. It meters and atomises the oil supply so the burner can produce a stable, correctly shaped flame. This nozzle is listed for EOGB Danfoss boiler applications.
Signs this part needs replacing
- The burner flame becomes uneven, ragged or unstable
- Soot deposits build up on the boiler baffles, heat exchanger or flue
- Combustion readings drift and cannot be brought back into range by adjustment alone
- The appliance locks out or fails to establish a reliable flame
- Visible wear, blockage or damage at the nozzle orifice
Before you order
- Confirm the nozzle marking on the existing part matches 1.00 x 60 ES
- Check the appliance model against the manufacturer's parts list
- Verify the spray pattern and flow rate required by the burner setup before fitting
- Have combustion analysis equipment available to set up the burner after replacement
Compliance
| Barcode / EAN | 5702425007064 |
|---|---|
| Alternative numbers | 3025344 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| EOGB Danfoss | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
