Danfoss

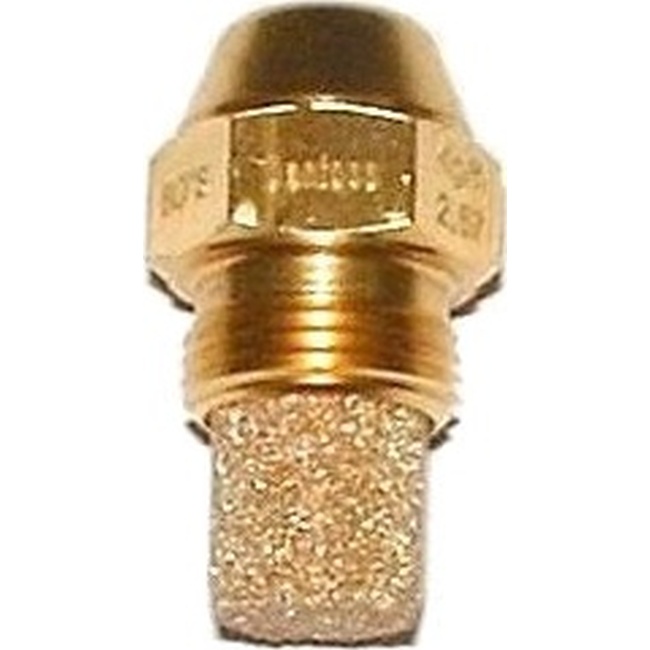

Danfoss Nozzle 0.65 x 45 B D01-030B0054
Danfoss oil burner nozzle rated 0.65 US gal/h with a 45° spray angle and B spray pattern, for EOGB Danfoss oil boilers.
At a glance
- Also known as 3025176
£12.95
£10.79 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Danfoss 0.65 x 45 B nozzle is an oil burner nozzle used to atomise fuel oil into a fine spray for combustion. It is fitted to EOGB Danfoss oil-fired boiler burners. The nozzle controls both the fuel flow rate and the shape of the spray delivered to the flame.
Signs this part needs replacing
- The flame burns unevenly, pulses or lifts off the burner head
- Soot deposits build up on the baffles, heat exchanger or combustion chamber
- Smoke or CO readings rise at the flue, or combustion analysis falls outside the burner settings
- The burner becomes hard to light or locks out repeatedly
- Fuel drips from the nozzle after shutdown, or a strong oil smell is present at the burner
Before you order
- Confirm the required flow rate and spray angle against the burner manufacturer's data plate or commissioning sheet
- Check the spray pattern letter specified for your burner, as this affects flame shape
- Verify the burner model and pump pressure setting before fitting a nozzle of a different rating
- Check the nozzle body and electrode assembly for damage or contamination before installation
Compliance
| Alternative numbers | 3025176 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| EOGB Danfoss | — | — | — |
