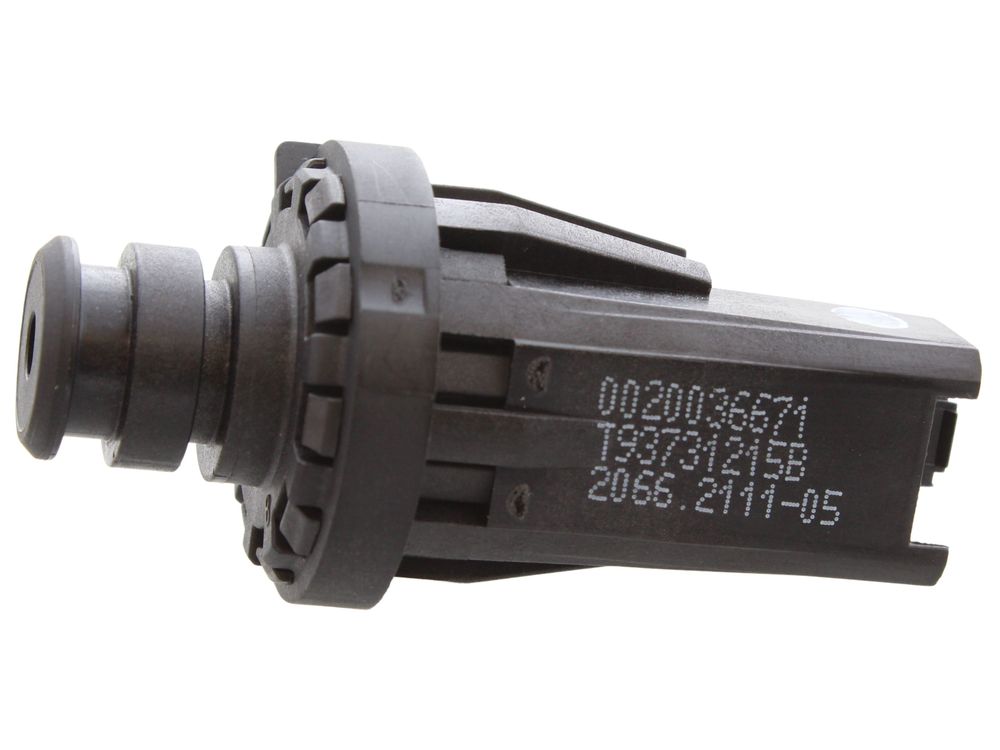

Heatline Pressure Sensor D003202234
Pressure sensor for Heatline Capriz PLUS and Monza gas boilers, part number D003202234.
At a glance
- Also known as 2171330
£59.95
£49.96 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The PRESSURE SENSOR is a Heatline component listed under gas boiler spares, supplied under part number D003202234. It is fitted to Capriz PLUS and Monza appliances, where it monitors system pressure on the boiler. The sensor reports pressure readings to the boiler's control system so that firing and safety functions respond correctly.
Signs this part needs replacing
- Boiler pressure reading on the display is inaccurate or does not match the gauge
- Fault or lockout condition relating to system pressure
- Boiler fails to fire despite adequate system pressure
- Pressure reading drops or fluctuates without a corresponding change at the filling loop or gauge
Before you order
- Confirm the appliance model and variant, including the A suffix where applicable
- Check the part number on the existing sensor against D003202234
- Verify that the appliance is a Heatline Capriz PLUS or Monza model
Mechanical
| Part type | SENSORS |
|---|
Compliance
| Manufacturer part number (MPN) | D003202234 |
|---|---|
| Alternative numbers | 2171330 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| HEATLINE CAPRIZ PLUS 24 | 47-157-19 | 47-157-19 | — | — |
| HEATLINE CAPRIZ PLUS 24A | 47-157-23 | 47-157-23 | — | — |
| HEATLINE CAPRIZ PLUS 28 | 47-157-20 | 47-157-20 | — | — |
| HEATLINE CAPRIZ PLUS 28A | 47-157-24 | 47-157-24 | — | — |
| HEATLINE MONZA 24 | 47-157-21 | 47-157-21 | — | — |
| HEATLINE MONZA 24A | 47-157-25 | 47-157-25 | — | — |
| HEATLINE MONZA 28 | 47-157-22 | 47-157-22 | — | — |
| HEATLINE MONZA 28A | 47-157-26 | 47-157-26 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
HEATLINE appliance manual — CAPRIZ PLUS 24 (GC 47-157-19), CAPRIZ PLUS 28 (GC 47-157-20)
manualmanualHEATLINE appliance manual — CAPRIZ PLUS 24A (GC 47-157-23), CAPRIZ PLUS 28A (GC 47-157-24)
manualmanualHEATLINE appliance manual — MONZA 24 (GC 47-157-21)
manualmanualHEATLINE appliance manual — MONZA 28 (GC 47-157-22)
manualNo technical questions yet for this part.
