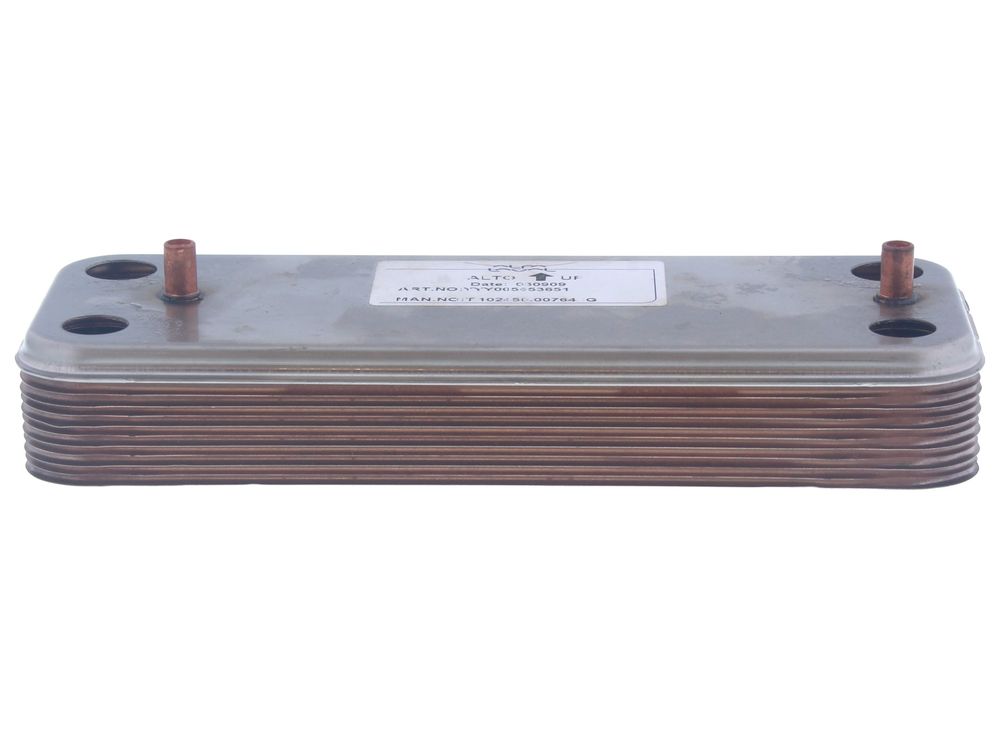

Heatline Plate Heat Exchanger D003200896
16-plate heat exchanger for Heatline gas boilers, rated at 24kW, transferring heat between the primary and domestic hot water circuits.
At a glance
- Also known as 2171048
£260.99
£217.49 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Heatline D003200896 is a plate heat exchanger with 16 plates, rated for 24kW appliances. It transfers heat between the primary circuit and the domestic hot water circuit inside the boiler. It is used across a number of Heatline gas boiler models.
Signs this part needs replacing
- Domestic hot water running hot and cold, or fluctuating in temperature
- Reduced hot water flow rate compared with the cold supply
- Water weeping or staining around the plate heat exchanger gaskets
- Scale or debris blocking the plate channels, causing poor heat transfer
- Primary and DHW circuits cross-contaminating, with pressure loss or discoloured water
Before you order
- Confirm the boiler model and GC number against the appliance data badge
- Check the existing plate heat exchanger for the plate count and part number marking
- Inspect the sealing O-rings and mounting gaskets, as these are not supplied with the exchanger
- Isolate the boiler and drain down before removal
Compliance
| Barcode / EAN | 5037985074615 |
|---|---|
| Alternative numbers | 2171048 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| HEATLINE HEATLINE SARGON 24 | — | — | — | |
| HEATLINE HEATLINE SOLARIS 24 PC | — | — | — | |
| HEATLINE SARGON 24 | 47-157-15 | 47-157-15 | — | — |
| HEATLINE SOLARIS 24 PC PREMIX | 47-157-04 | 47-157-04 | — | — |
| HEATLINE VIZO PLUS | 47-157-14 | 47-157-14 | — | — |
