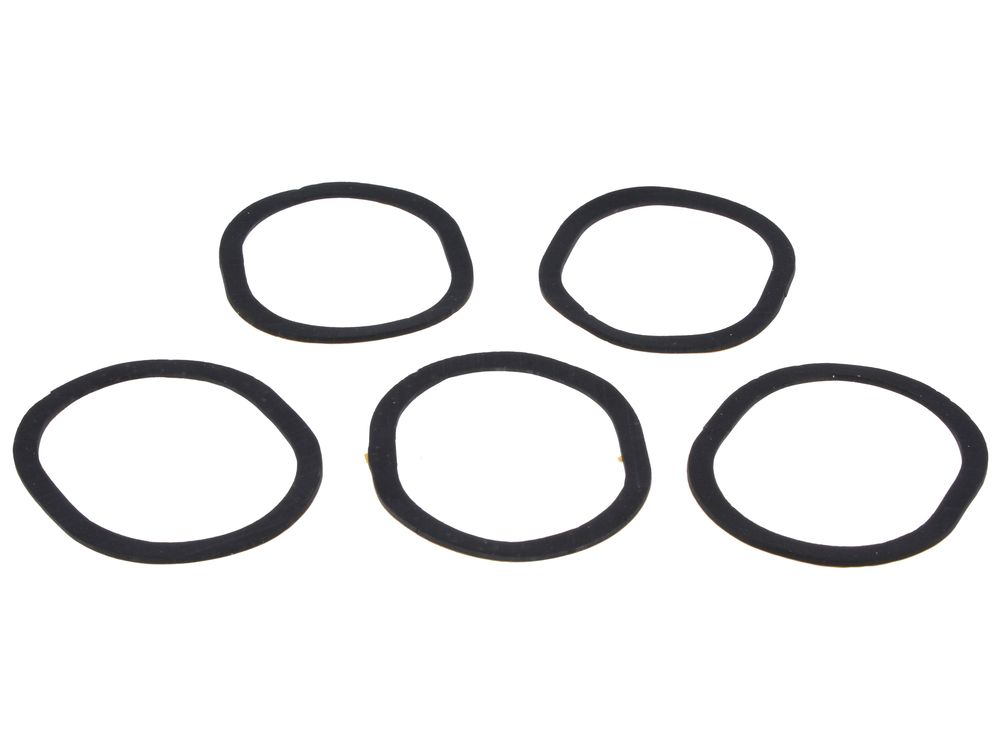

Heatline Fan & Hood Gasket 3003200231
Heatline fan and hood gasket, part 3003200231, for Capriz, Compact, VIZO, Hydroline and C-series gas boilers.
At a glance
- Part type: gasket — fan and hood
- Also known as 2170180
£10.03
£8.36 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Heatline fan and hood gasket, manufacturer part number 3003200231, is a sealing component fitted between the fan assembly and the hood on Heatline gas boilers. It maintains a gas-tight seal at that joint, preventing flue products from escaping into the appliance casing. It is listed under Orings, Washers & Gaskets within Gas Boiler Spares.
Signs this part needs replacing
- Visible cracking, hardening or flattening of the gasket material at the fan and hood joint
- Soot staining or discolouration around the fan and hood mating faces
- Combustion readings drifting outside the expected range on a service check
- Flue gas smell or condensation traces within the appliance casing
- Whistling or unusual noise from the fan area after reassembly
Before you order
- Confirm the boiler model against the fitment list above, as this gasket covers a wide Heatline range
- On VIZO 24 appliances, check the serial number — fitment differs before and after serial number 1062230470
- Compare the existing gasket against the manufacturer's parts list before ordering
- Inspect the fan and hood mating faces for damage or distortion that would prevent a clean seal
Compliance
| Barcode / EAN | 5037985073595 |
|---|---|
| Alternative numbers | 2170180 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| HEATLINE CAPRIZ 25 COMBI | 47-157-12 | 47-157-12 | — | — |
| HEATLINE CAPRIZ 25S SYSTEM | 41-157-10 | 41-157-10 | — | — |
| HEATLINE CAPRIZ 28 COMBI | 47-157-13 | 47-157-13 | — | — |
| HEATLINE CAPRIZ 28S SYSTEM | 41-157-11 | 41-157-11 | — | — |
| HEATLINE CAPRIZ 32 COMBI | — | — | — | |
| HEATLINE CAPRIZ 32S SYSTEM | — | — | — | |
| HEATLINE COMPACT C24 | 47-157-06 | 47-157-06 | — | — |
| HEATLINE COMPACT C28 | 47-157-07 | 47-157-07 | — | — |
| HEATLINE COMPACT S20S SYSTEM | 41-157-01 | 41-157-01 | — | — |
| HEATLINE COMPACT S24 SILVER | 47-157-02 | 47-157-02 | — | — |
Showing 10 of 30 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
HEATLINE appliance manual — CAPRIZ 25 COMBI (GC 47-157-12)
manualmanualHEATLINE appliance manual — CAPRIZ 25S SYSTEM (GC 41-157-10)
manualmanualHEATLINE appliance manual — CAPRIZ 28 COMBI (GC 47-157-13)
manualmanualHEATLINE appliance manual — CAPRIZ 28S SYSTEM (GC 41-157-11)
manualmanualHEATLINE appliance manual — COMPACT C24 (GC 47-157-06), COMPACT C28 (GC 47-157-07)
manualmanualHEATLINE appliance manual — COMPACT S20S SYSTEM (GC 41-157-01)
manualmanualHEATLINE appliance manual — COMPACT S24 SILVER (GC 47-157-02)
manualmanualHEATLINE appliance manual — COMPACT S24 WHITE (GC 47-157-02)
manualmanualHEATLINE appliance manual — COMPACT S24S SYSTEM (GC 41-157-02)
manualmanualHEATLINE appliance manual — COMPACT S30 SILVER (GC 47-157-03)
manualmanualHEATLINE appliance manual — COMPACT S30 WHITE (GC 47-157-03)
manualmanualHEATLINE appliance manual — COMPACT S30S SYSTEM (GC 41-157-03)
manualmanualHEATLINE appliance manual — VIZO 24 BEFORE SERIAL No. 1062230470 (GC 47-157-08), VIZO 24 FROM SERIAL No. 1062230470 (GC 47-157-08)
manualmanualHEATLINE appliance manual — VIZO 28 (GC 47-157-09)
manualNo technical questions yet for this part.
