Heatline

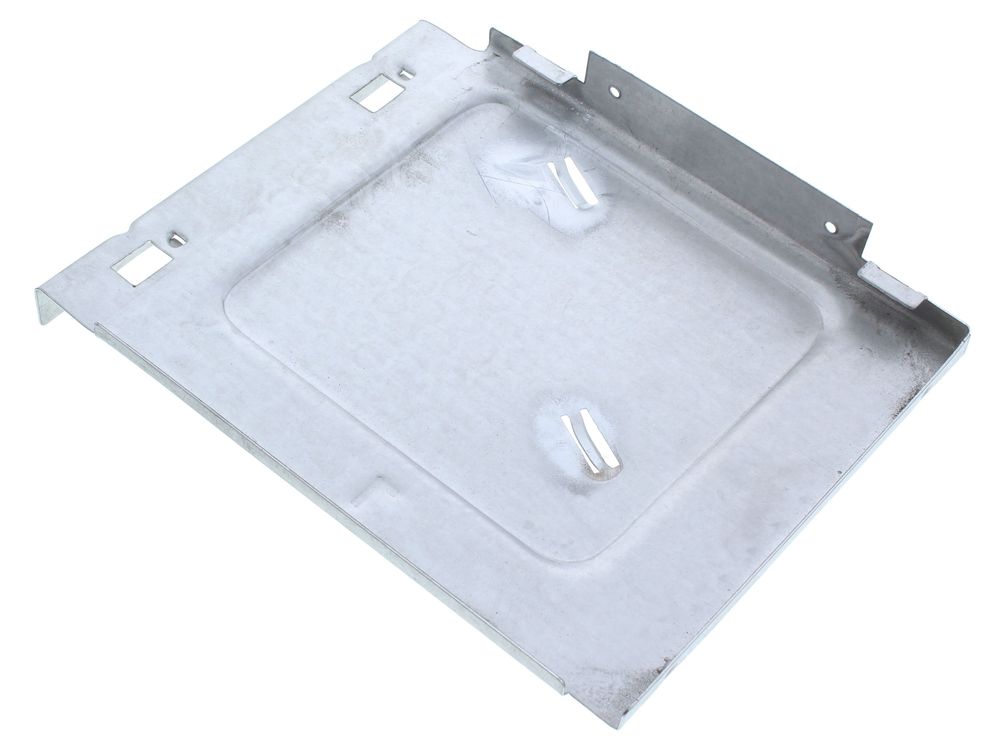

Heatline Panel Inner Left Side D003200170
Inner left side casing panel for Heatline gas boilers, manufacturer part number 3003200170.
At a glance
- Part type: inner left side panel (casing)
- Also known as 2170556
£32.05
£26.71 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The inner left side panel is a casing component for Heatline gas boilers, supplied under manufacturer part number 3003200170. It forms the left-hand internal section of the boiler casing, sitting behind the outer case to close off and protect the left side of the appliance. It is listed within the casing section of Heatline boiler spares.
Signs this part needs replacing
- Visible corrosion, rust staining or pitting along the panel surface
- Distortion or bending that prevents the outer case from seating correctly
- Cracks, splits or holes in the panel material
- Missing or sheared fixing points where the panel mounts to the chassis
- Heat discolouration or warping around the panel edges
Before you order
- Confirm the boiler model and, where applicable, the serial number against the fitment list
- Check which side of the casing is required, as inner left and right panels are separate parts
- Inspect the existing panel and its fixings for additional damage before ordering
- Verify the part number 3003200170 matches the number on the existing component or the manufacturer's parts list
Compliance
| Alternative numbers | 2170556 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| HEATLINE CAPRIZ 32S SYSTEM | — | — | — | |
| HEATLINE COMPACT C24 | 47-157-06 | 47-157-06 | — | — |
| HEATLINE COMPACT C28 | 47-157-07 | 47-157-07 | — | — |
| HEATLINE COMPACT S20S SYSTEM | 41-157-01 | 41-157-01 | — | — |
| HEATLINE COMPACT S24 SILVER | 47-157-02 | 47-157-02 | — | — |
| HEATLINE COMPACT S24 WHITE | 47-157-02 | 47-157-02 | — | — |
| HEATLINE COMPACT S24S SYSTEM | 41-157-02 | 41-157-02 | — | — |
| HEATLINE COMPACT S30 SILVER | 47-157-03 | 47-157-03 | — | — |
| HEATLINE COMPACT S30 WHITE | 47-157-03 | 47-157-03 | — | — |
| HEATLINE COMPACT S30S SYSTEM | 41-157-03 | 41-157-03 | — | — |
Showing 10 of 20 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
HEATLINE appliance manual — COMPACT C24 (GC 47-157-06), COMPACT C28 (GC 47-157-07)
manualmanualHEATLINE appliance manual — COMPACT S20S SYSTEM (GC 41-157-01)
manualmanualHEATLINE appliance manual — COMPACT S24 SILVER (GC 47-157-02)
manualmanualHEATLINE appliance manual — COMPACT S24 WHITE (GC 47-157-02)
manualmanualHEATLINE appliance manual — COMPACT S24S SYSTEM (GC 41-157-02)
manualmanualHEATLINE appliance manual — COMPACT S30 SILVER (GC 47-157-03)
manualmanualHEATLINE appliance manual — COMPACT S30 WHITE (GC 47-157-03)
manualmanualHEATLINE appliance manual — COMPACT S30S SYSTEM (GC 41-157-03)
manualmanualHEATLINE appliance manual — VIZO 24 BEFORE SERIAL No. 1062230470 (GC 47-157-08)
manualmanualHEATLINE appliance manual — VIZO 28 (GC 47-157-09)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
