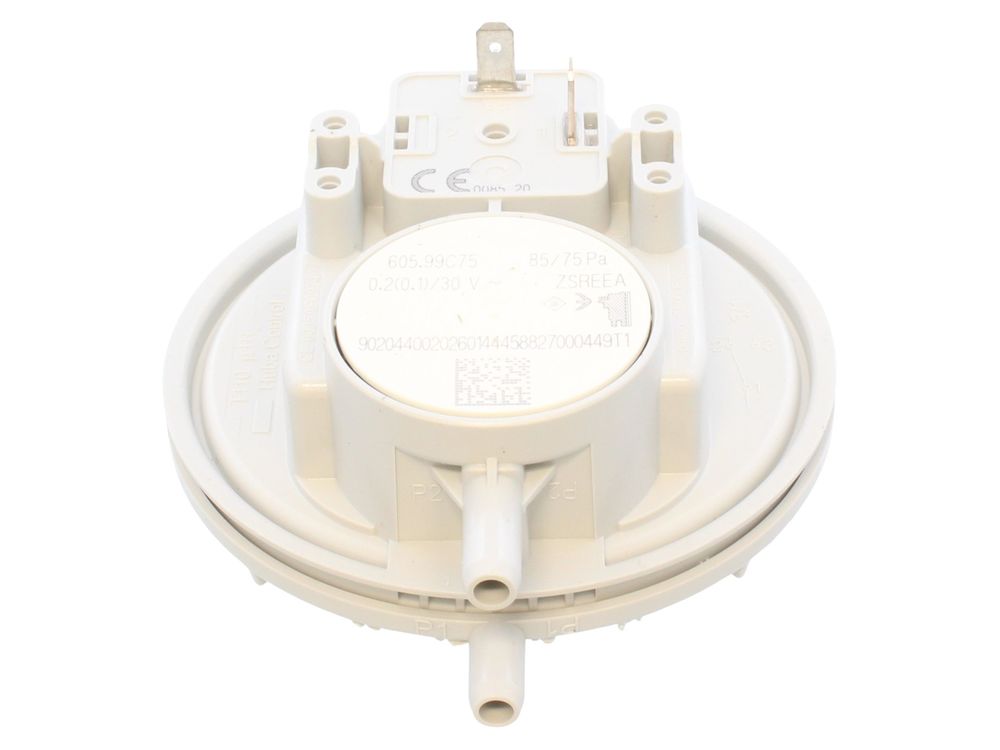

Heatline Air Pressure Switch 3003200032
Heatline air pressure switch rated 0.85/0.7 mbar, used across Capriz, Compact, Hydroline and Vizo boiler models.
At a glance
- Part type: air pressure switch
- Also known as 2170998
£143.89
£119.91 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Heatline air pressure switch is a safety device fitted to a range of Heatline gas boilers and water heaters. It monitors the pressure difference created by the fan and flue system, and only allows the boiler to proceed to ignition when that pressure is proven. This version is rated at 0.85/0.7 mbar.
Signs this part needs replacing
- The boiler locks out or fails to fire, with the fan running but no ignition sequence starting
- Repeated or intermittent lockouts that clear on reset and then return
- A fault code or status indication relating to air pressure or the pressure switch
- The boiler will not start after fan, flue or combustion cover work
- No switching action at the switch when the fan is running
Before you order
- Confirm your appliance model and, where known, its GC number against the fit list above
- For the Vizo 24, check the appliance serial number against the stated starting serial number
- Check the pressure rating marked on the existing switch matches 0.85/0.7 mbar
- Compare the part number on the existing switch with the codes listed here
Compliance
| Barcode / EAN | 5037985072567 |
|---|---|
| Alternative numbers | 2170998 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| HEATLINE CAPRIZ 25 COMBI | 47-157-12 | 47-157-12 | — | — |
| HEATLINE CAPRIZ 25S SYSTEM | 41-157-10 | 41-157-10 | — | — |
| HEATLINE CAPRIZ 28 COMBI | 47-157-13 | 47-157-13 | — | — |
| HEATLINE CAPRIZ 28S SYSTEM | 41-157-11 | 41-157-11 | — | — |
| HEATLINE CAPRIZ 32 COMBI | — | — | — | |
| HEATLINE CAPRIZ 32S SYSTEM | — | — | — | |
| HEATLINE COMPACT S20S SYSTEM | 41-157-01 | 41-157-01 | — | — |
| HEATLINE COMPACT S24 SILVER | 47-157-02 | 47-157-02 | — | — |
| HEATLINE COMPACT S24 WHITE | 47-157-02 | 47-157-02 | — | — |
| HEATLINE COMPACT S24S SYSTEM | 41-157-02 | 41-157-02 | — | — |
Showing 10 of 23 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
HEATLINE appliance manual — CAPRIZ 25 COMBI (GC 47-157-12)
manualmanualHEATLINE appliance manual — CAPRIZ 25S SYSTEM (GC 41-157-10)
manualmanualHEATLINE appliance manual — CAPRIZ 28 COMBI (GC 47-157-13)
manualmanualHEATLINE appliance manual — CAPRIZ 28S SYSTEM (GC 41-157-11)
manualmanualHEATLINE appliance manual — COMPACT S20S SYSTEM (GC 41-157-01)
manualmanualHEATLINE appliance manual — COMPACT S24 SILVER (GC 47-157-02)
manualmanualHEATLINE appliance manual — COMPACT S24 WHITE (GC 47-157-02)
manualmanualHEATLINE appliance manual — COMPACT S24S SYSTEM (GC 41-157-02)
manualmanualHEATLINE appliance manual — IG 24 WATER HEATER (GC 52-157-03)
manualmanualHEATLINE appliance manual — VIZO 24 FROM SERIAL No. 1062230470 (GC 47-157-08)
manualNo technical questions yet for this part.
