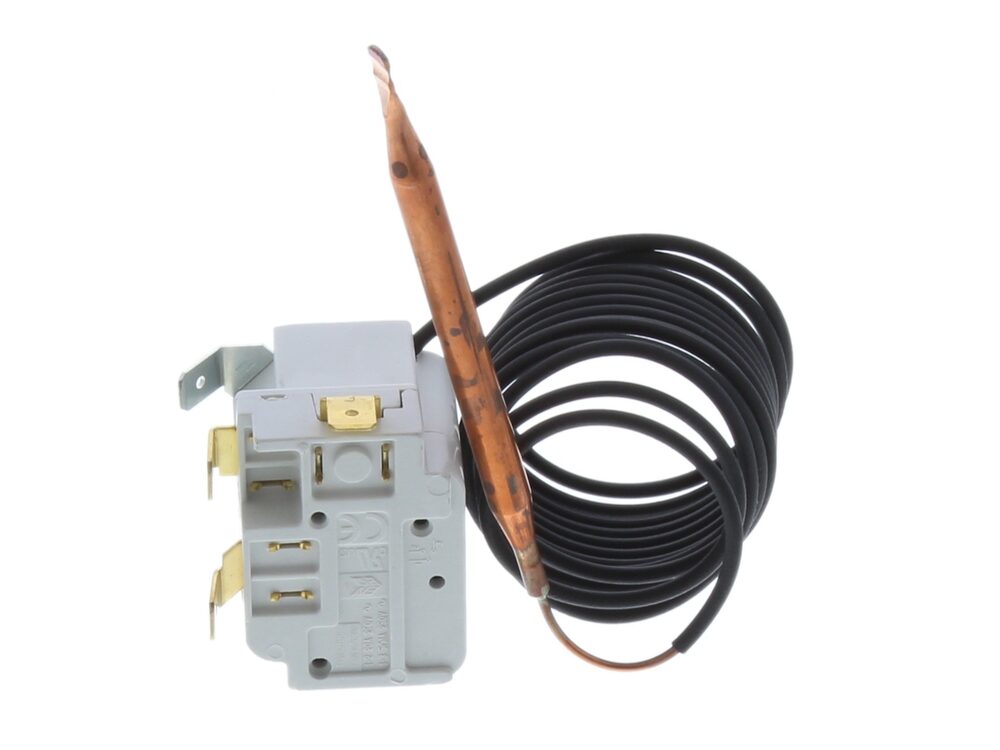

Potterton Control Thermostat High Low COM133624
Potterton COM133624 control high/low thermostat for Osprey 2 CFL and Osprey CF boilers, regulating boiler operating temperature and firing rate.
At a glance
- Part type: Control Thermostat
- Also known as 1125370
£108.00
£90.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Potterton COM133624 is a control high/low thermostat, listed by the manufacturer under the part type Control Thermostat. It sets and regulates the operating temperature of the appliance, switching the burner between high and low fire as heat demand changes. The part is used across the Potterton Osprey family of boilers.
Signs this part needs replacing
- The boiler runs at a fixed temperature no matter where the control knob is set.
- The burner stays on high fire and does not step down to low fire.
- Temperature swings between calls for heat, with radiators or hot water running hotter or cooler than the dial position suggests.
- The appliance short-cycles or trips on the overheat thermostat during normal running.
- The control knob turns without any change in boiler behaviour.
Before you order
- Check the appliance GC number against the compatibility list, as the Osprey range uses more than one thermostat variant.
- Compare the number printed on the existing thermostat with COM133624 and the previous numbers listed below.
- Confirm the model and serial details on the appliance data badge before ordering.
Mechanical
| Part type | Control Thermostat |
|---|
Compliance
| Manufacturer part number (MPN) | COM133624 |
|---|---|
| GC number | E03-683 |
| Barcode / EAN | 5039177505327 |
| Commodity code | 9032 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 000909, 133624, 17006994, COM17006994, 1125370 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| POTTERTON OSPREY 2 CFL125 | 41-590-54 | 41-590-54 | — | — |
| POTTERTON OSPREY 2 CFL150 | 41-590-55 | 41-590-55 | — | — |
| POTTERTON OSPREY 2 CFL180 | 41-590-56 | 41-590-56 | — | — |
| POTTERTON OSPREY 2 CFL220 | 41-590-57 | 41-590-57 | — | — |
| POTTERTON OSPREY CF125 | 41-589-33 | 41-589-33 | — | — |
| POTTERTON OSPREY CF150 | 41-589-44 | 41-589-44 | — | — |
| POTTERTON OSPREY CF180 | 41-589-45 | 41-589-45 | — | — |
| POTTERTON OSPREY CF220 | 41-589-62 | 41-589-62 | — | — |
| POTTERTON OSPREY CFL125 | 41-590-54 | 41-590-54 | — | — |
| POTTERTON OSPREY CFL150 | 41-590-55 | 41-590-55 | — | — |
Showing 10 of 21 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
POTTERTON appliance manual — OSPREY 2 CFL125 (GC 41-590-54), OSPREY 2 CFL150 (GC 41-590-55), OSPREY 2 CFL180 (GC 41-590-56), OSPREY 2 CFL220 (GC 41-590-57), OSPREY CFL125 (GC 41-590-54), OSPREY CFL150 (GC 41-590-55), OSPREY CFL180 (GC 41-590-56), OSPREY CFL220 (GC 41-590-57)
manualmanualPOTTERTON appliance manual — OSPREY CF125 (GC 41-589-33), OSPREY CF150 (GC 41-589-44), OSPREY CF180 (GC 41-589-45), OSPREY CF220 (GC 41-589-62)
