Satronic

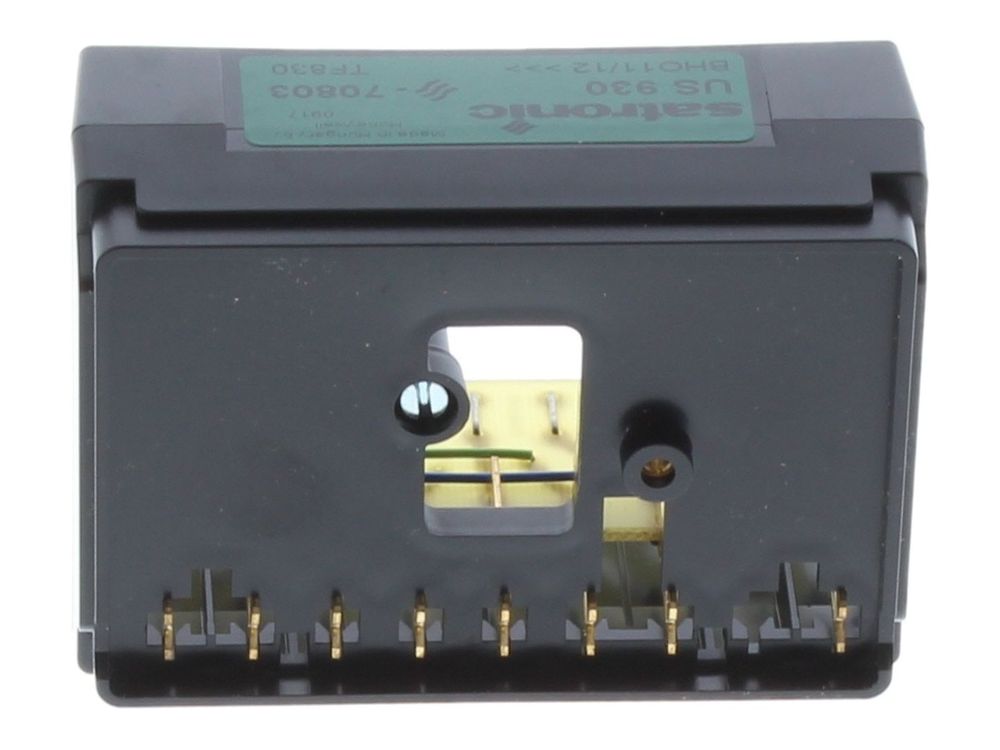

Satronic Adapter Base C21241C
Satronic adapter base, part C21241C, used with Nu-Way US930/70803 burner control units.
At a glance
- Part type: Adapter base
- Also known as 3062370
£72.00
£60.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Satronic adapter base C21241C is a mounting and interface plate that carries the burner control unit on Nu-Way equipment. It sits between the control box and the burner housing, locating the control unit and forming the mechanical and electrical link between the control and the appliance. It is listed under Nu-Way part number C21241C and is used with the Satronic US930/70803 control series.
Signs this part needs replacing
- The burner control unit no longer sits square or secure on the base
- Intermittent burner lockouts traced to poor contact at the control plug
- Cracked, brittle or heat-discoloured plastic around the mounting points
- Corroded or blackened terminals in the base connector block
- Damaged or snapped fixing lugs that prevent the base being clamped down
Before you order
- Check the burner control unit fitted is a Satronic US930/70803 before matching the base
- Confirm the code C21241C on the existing base, as nearby variants are not interchangeable
- Inspect the connector pins and mounting face while the base is removed, and renew any gasket or seal disturbed during the swap
- Work on the burner should be carried out by a competent engineer, with the appliance isolated and the gas supply proved safe on completion
Mechanical
| Part type | Adapter Base |
|---|
Compliance
| Manufacturer part number (MPN) | C21241C |
|---|---|
| Barcode / EAN | 4046911023352 |
| Commodity code | 8416 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 3062370 |
No fitment data held for this part.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
