Johnson & Starley
Johnson & Starley Piezo Lead BOS02394

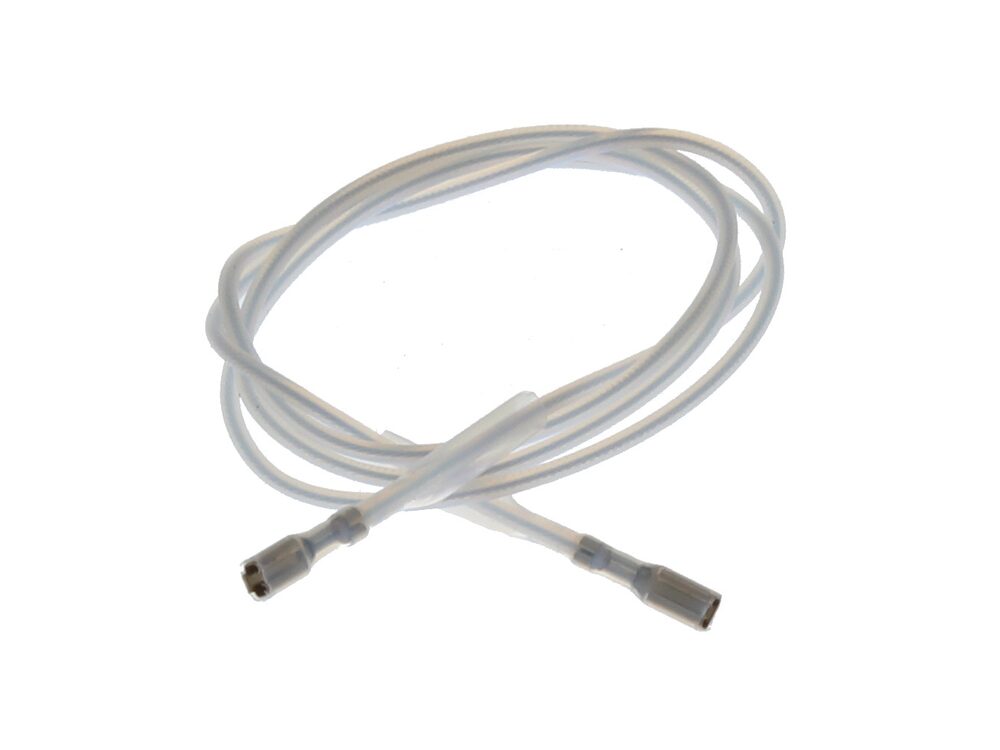

PTFE-insulated piezo HT lead with spade terminals at both ends, manufactured by Johnson & Starley for its gas appliances.
At a glance
- Also known as 1690273
Showing prices
£16.44
£13.70 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Johnson & Starley BOS02394 is a PTFE-insulated high-tension lead fitted with a spade terminal at each end. It carries the piezo ignition spark from the piezo unit to the ignition electrode on Johnson & Starley gas appliances. It is listed under electrodes in the manufacturer's spares range.
Signs this part needs replacing
- No spark at the ignition electrode when the piezo button is pressed
- Weak, intermittent or erratic sparking at the electrode
- Cracked, split or perished insulation along the lead
- Soot tracking or arcing marks on the lead or at the terminals
- Loose or corroded spade terminals that will not grip the electrode or piezo unit
Before you order
- Confirm the part number against the appliance data plate or the manufacturer's parts list
- Check the terminal type at both ends matches the piezo unit and ignition electrode on your appliance
- Inspect the ignition electrode and its gap at the same time, as ignition faults are often shared between the lead and the electrode
- Check the lead routing and length available on your appliance before fitting
Compliance
| Barcode / EAN | 5055189909946 |
|---|---|
| Alternative numbers | 1690273 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| JOHNSON & STARLEY ELJAN / ELJAN F WATER HEATER | 42-451-11 | 42-451-11 | — | — |
| JOHNSON & STARLEY ELJAN 4 SE WATER HEATER | 53-416-19 | 53-416-19 | — | — |
| JOHNSON & STARLEY ELJAN 6 WATER HEATER | 53-416-24 | 53-416-24 | — | — |
| JOHNSON & STARLEY HISPEC J25 WARM AIR UNIT | 42-451-04 | 42-451-04 | — | — |
| JOHNSON & STARLEY HISPEC J25SC WARM AIR UNIT | 42-417-96 | 42-417-96 | — | — |
| JOHNSON & STARLEY HISPEC J32 WARM AIR UNIT - REAR RISING DUCT | 42-416-06 | 42-416-06 | — | — |
| JOHNSON & STARLEY HISPEC J32 WARM AIR UNIT PROPANE | 42-416-07 | 42-416-07 | — | — |
| JOHNSON & STARLEY HISPEC J32 WARM AIR UNIT PROPANE - REAR RISING DUCT | 42-416-08 | 42-416-08 | — | — |
| JOHNSON & STARLEY HISPEC J32 WARM AIR UNIT | 42-451-02 | 42-451-02 | — | — |
| JOHNSON & STARLEY HISPEC J40 WARM AIR UNIT | 42-451-09 | 42-451-09 | — | — |
Showing 10 of 56 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
