Biasi

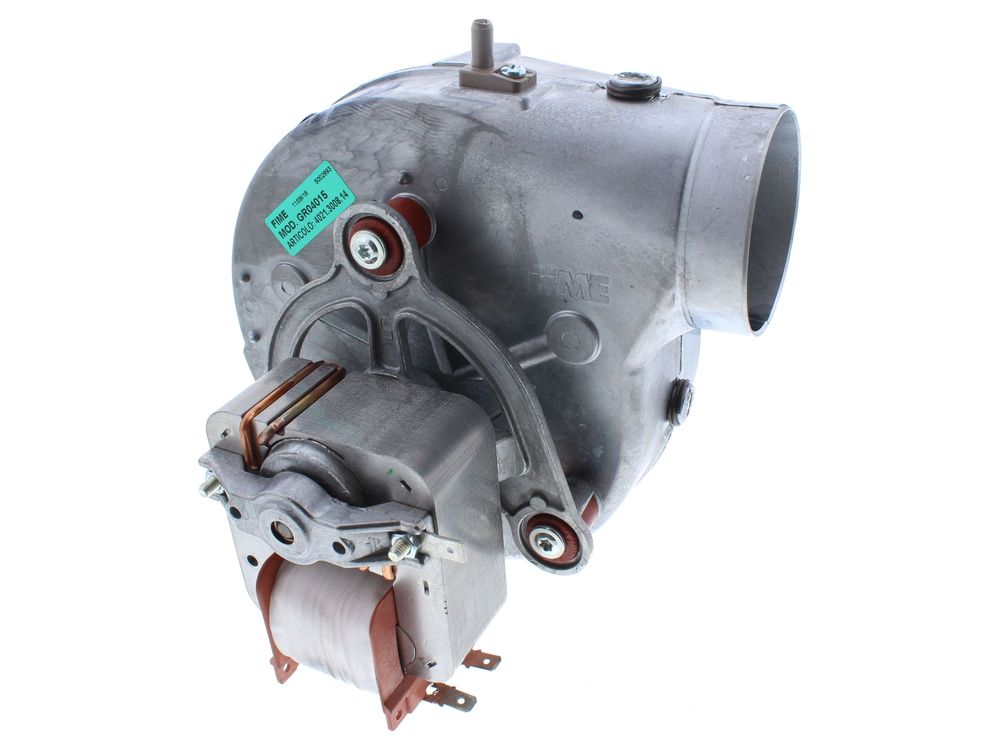

Biasi Fan Assembly BI1536113
Biasi fan assembly BI1536113, listed as FAN M96A.32SM/C, for Riva Plus HE and Riva Compact HE gas boilers.
At a glance
- Also known as FAN-M96A32SM--M29628SM, 1651429
£107.87
£89.89 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Biasi BI1536113 is a combustion fan assembly, listed by the manufacturer as FAN M96A.32SM/C. It is fitted to Biasi Riva Plus HE and Riva Compact HE gas boilers, where it draws flue gases through the heat exchanger and discharges them to atmosphere. The fan also provides the air proving signal that allows the boiler to run safely.
Signs this part needs replacing
- Boiler locks out or fails to fire, with a fan or air pressure fault indicated
- Fan runs noisily, with bearing rumble, scraping or intermittent squealing
- Fan does not spin at all when the boiler calls for heat
- Repeated lockouts shortly after ignition that clear on reset
- Visible damage, contamination or stiffness when the fan is turned by hand
Before you order
- Confirm the boiler model against the fit list above, including whether the appliance is the LPG variant
- Check the part number on the existing fan assembly matches BI1536113 or FAN M96A.32SM/C
- Inspect the flue and air pressure sensing lines, as blockages can mimic fan failure
- Isolate the electrical supply and gas before removing the existing fan
Compliance
| GC number | H74-604 |
|---|---|
| Barcode / EAN | 8023585844809 |
| Alternative numbers | FAN-M96A32SM--M29628SM, 1651429 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BIASI RIVA COMPACT HE M96A.32SM/C | 47-583-19 | 47-583-19 | — | — |
| BIASI RIVA PLUS HE 28C ERP | 47-583-42 | 47-583-42 | — | — |
| BIASI RIVA PLUS HE 28C ERP | — | — | — | |
| BIASI RIVA PLUS HE 28C ERP LPG | 47-583-42 | 47-583-42 | — | — |
| BIASI RIVA PLUS HE 28S ERP | — | — | — | |
| BIASI RIVA PLUS HE 28S ERP | 41-583-32 | 41-583-32 | — | — |
| BIASI RIVA PLUS HE 28S ERP LPG | 41-583-32 | 41-583-32 | — | — |
| BIASI RIVA PLUS HE M296.28SM/C | 47-583-25 | 47-583-25 | — | — |
| BIASI RIVA PLUS HE M296.28SM/C LPG | 47-583-25 | 47-583-25 | — | — |
| BIASI RIVA PLUS HE M296.28SR/C | 41-583-19 | 41-583-19 | — | — |
Showing 10 of 11 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BIASI appliance manual — RIVA COMPACT HE M96A.32SM/C (GC 47-583-19)
manualmanualBIASI appliance manual — RIVA PLUS HE 28C ERP (GC 47-583-42), RIVA PLUS HE 28C ERP LPG (GC 47-583-42)
manualmanualBIASI appliance manual — RIVA PLUS HE 28S ERP (GC 41-583-32), RIVA PLUS HE 28S ERP LPG (GC 41-583-32)
manualmanualBIASI appliance manual — RIVA PLUS HE M296.28SM/C (GC 47-583-25), RIVA PLUS HE M296.28SM/C LPG (GC 47-583-25)
manualmanualBIASI appliance manual — RIVA PLUS HE M296.28SR/C (GC 41-583-19), RIVA PLUS HE M296.28SR/C LPG (GC 41-583-19)
manualNo technical questions yet for this part.
