Biasi
Biasi Fan Assembly BI1536105
Fan assembly for Biasi RIVA Compact, RIVA PLUS HE and Garda HE Mk2 gas boilers.
At a glance
- Also known as FAN-M96A--M29624SMC, 1651415, N6501-1
£96.79
£80.66 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

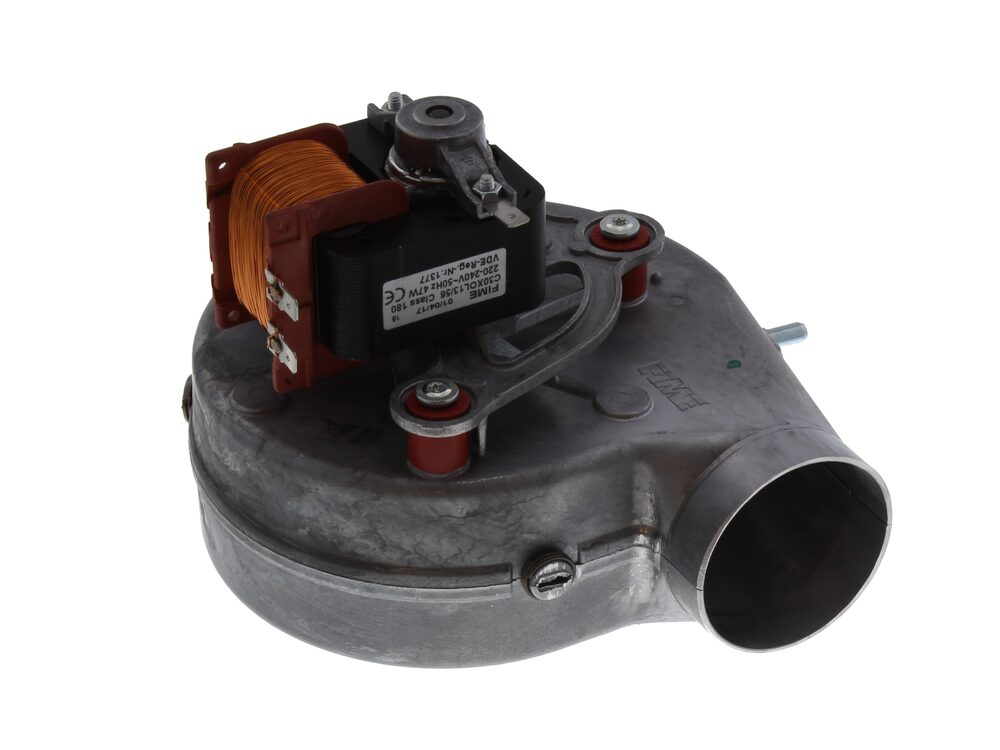

The Biasi BI1536105 is a fan assembly used on Biasi gas boilers in the RIVA Compact HE, RIVA PLUS HE and Garda HE Mk2 ranges. It draws combustion air through the burner and pushes flue products out through the flue system, and is monitored by the boiler's control board to prove airflow before ignition. The assembly carries the fan designation M96A.24SM/C.
Signs this part needs replacing
- Boiler locks out or fails to ignite because the fan cannot prove airflow
- Grinding, rumbling or whining noise from the fan area during start-up or running
- Fan impeller does not spin freely, or does not turn at all when the boiler calls for heat
- Repeated fan-related fault codes on the boiler display
- Intermittent operation, with the boiler running for short periods before shutting down
Before you order
- Check the model and GC number on the appliance data badge against the fit list above
- Confirm the fan designation on the existing fan matches M96A.24SM/C
- Identify whether the boiler is natural gas or LPG, as both variants appear in the fit list
- Inspect the fan wiring plug and mounting before ordering, so any damaged connections can be addressed at the same time
Compliance
| GC number | H74-578 |
|---|---|
| Barcode / EAN | 8023585843345 |
| Alternative numbers | FAN-M96A--M29624SMC, 1651415, N6501-1 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BIASI GARDA HE MK2 M96A.24SM/B | 47-583-15 | 47-583-15 | — | — |
| BIASI RIVA COMPACT HE M96A.24SM/C | 47-583-17 | 47-583-17 | — | — |
| BIASI RIVA COMPACT HE M96A.24SR/C | 41-583-09 | 41-583-09 | — | — |
| BIASI RIVA PLUS HE 24C ERP | 47-583-41 | 47-583-41 | — | — |
| BIASI RIVA PLUS HE 24C ERP LPG | 47-583-41 | 47-583-41 | — | — |
| BIASI RIVA PLUS HE 24S ERP | 41-583-31 | 41-583-31 | — | — |
| BIASI RIVA PLUS HE 24S ERP LPG | 41-583-31 | 41-583-31 | — | — |
| BIASI RIVA PLUS HE M296.24SM/C | 47-583-24 | 47-583-24 | — | — |
| BIASI RIVA PLUS HE M296.24SM/C LPG | 47-583-24 | 47-583-24 | — | — |
| BIASI RIVA PLUS HE M296.24SR/C | 41-583-18 | 41-583-18 | — | — |
Showing 10 of 11 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BIASI appliance manual — GARDA HE MK2 M96A.24SM/B (GC 47-583-15)
manualmanualBIASI appliance manual — RIVA COMPACT HE M96A.24SM/C (GC 47-583-17)
manualmanualBIASI appliance manual — RIVA COMPACT HE M96A.24SR/C (GC 41-583-09)
manualmanualBIASI appliance manual — RIVA PLUS HE 24C ERP (GC 47-583-41), RIVA PLUS HE 24C ERP LPG (GC 47-583-41)
manualmanualBIASI appliance manual — RIVA PLUS HE 24S ERP (GC 41-583-31), RIVA PLUS HE 24S ERP LPG (GC 41-583-31)
manualmanualBIASI appliance manual — RIVA PLUS HE M296.24SM/C (GC 47-583-24), RIVA PLUS HE M296.24SM/C LPG (GC 47-583-24)
manualmanualBIASI appliance manual — RIVA PLUS HE M296.24SR/C (GC 41-583-18), RIVA PLUS HE M296.24SR/C LPG (GC 41-583-18)
manualNo technical questions yet for this part.
