Biasi

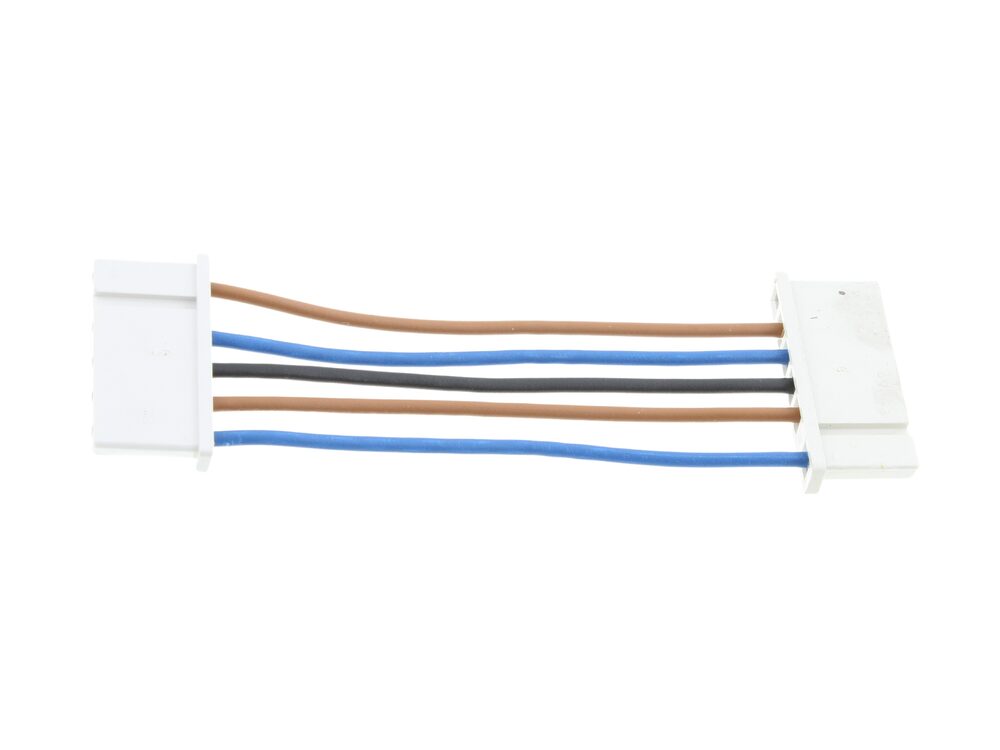

Biasi Ignition Device Connection Cable BI1485104
Biasi ignition device connection cable for the electronic control printed circuit board, part number BI1485104.
At a glance
- Also known as IGNITION-DEVICE-CONNECT-CABLE, 1650449
£9.64
£8.03 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Biasi BI1485104 is an ignition device connection cable that links the ignition device to the electronic control printed circuit board. It is a wiring component used across a number of Biasi gas boiler ranges. The cable carries the ignition signal between the board and the ignition electrode assembly.
Signs this part needs replacing
- The boiler fails to ignite, with no spark at the electrode
- Intermittent ignition or lockout that clears when the wiring loom is moved
- Visible damage to the cable insulation, such as cracking, chafing or heat marking
- Loose, corroded or discoloured terminals at either end of the cable
- Continuity faults traced to the ignition circuit during fault finding
Before you order
- Confirm the boiler model and GC number against the fit list above
- Inspect the existing cable routing and connector type before removal
- Check the ignition electrode and PCB terminals for damage that may have caused the cable fault
- Isolate the appliance from the electrical supply before fitting
Compliance
| GC number | E83-164 |
|---|---|
| Barcode / EAN | 8023585819593 |
| Alternative numbers | IGNITION-DEVICE-CONNECT-CABLE, 1650449 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BIASI GARDA HE M96.24SM/B | 47-970-25 | 47-970-25 | — | — |
| BIASI GARDA HE M96.24SM/D | 47-970-27 | 47-970-27 | — | — |
| BIASI GARDA HE M96.28SM/B | 47-970-26 | 47-970-26 | — | — |
| BIASI GARDA HE M96.28SM/D | 47-970-28 | 47-970-28 | — | — |
| BIASI GARDA M90F.24S | 47-970-19 | 47-970-19 | — | — |
| BIASI GARDA M90F.24SR | 41-970-10 | 41-970-10 | — | — |
| BIASI GARDA M90F.28S | 47-970-20 | 47-970-20 | — | — |
| BIASI GARDA M90F.28SR | 41-970-11 | 41-970-11 | — | — |
| BIASI GARDA M90F.32S | 47-970-22 | 47-970-22 | — | — |
| BIASI PARVA M90 - 24S | 47-970-13 | 47-970-13 | — | — |
Showing 10 of 23 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BIASI appliance manual — GARDA HE M96.24SM/B (GC 47-970-25), GARDA HE M96.24SM/D (GC 47-970-27), GARDA HE M96.28SM/B (GC 47-970-26), GARDA HE M96.28SM/D (GC 47-970-28)
manualmanualBIASI appliance manual — GARDA M90F.24S (GC 47-970-19), GARDA M90F.24SR (GC 41-970-10), GARDA M90F.28S (GC 47-970-20), GARDA M90F.28SR (GC 41-970-11), GARDA M90F.32S (GC 47-970-22)
manualmanualBIASI appliance manual — PARVA M90 - 24S (GC 47-970-13), PARVA M90 - 24SR (GC 41-970-06), PARVA M90 - 28S (GC 47-970-14), PARVA M90 - 28SR (GC 41-970-07)
manualmanualBIASI appliance manual — RIVA COMPACT HE M96.24SM/C (GC 47-970-23), RIVA COMPACT HE M96.28SM/C (GC 47-970-24), RIVA COMPACT HE M96.28SR/C (GC 41-970-12)
manualmanualBIASI appliance manual — RIVA COMPACT M90E.24S (GC 47-970-17), RIVA COMPACT M90E.28S (GC 47-970-18), RIVA COMPACT M90E.32S (GC 47-970-21)
manualmanualBIASI appliance manual — RIVA PLUS M90D.24S (GC 47-970-15), RIVA PLUS M90D.24SR (GC 41-970-08), RIVA PLUS M90D.28S (GC 47-970-16), RIVA PLUS M90D.28SR (GC 41-970-09)
