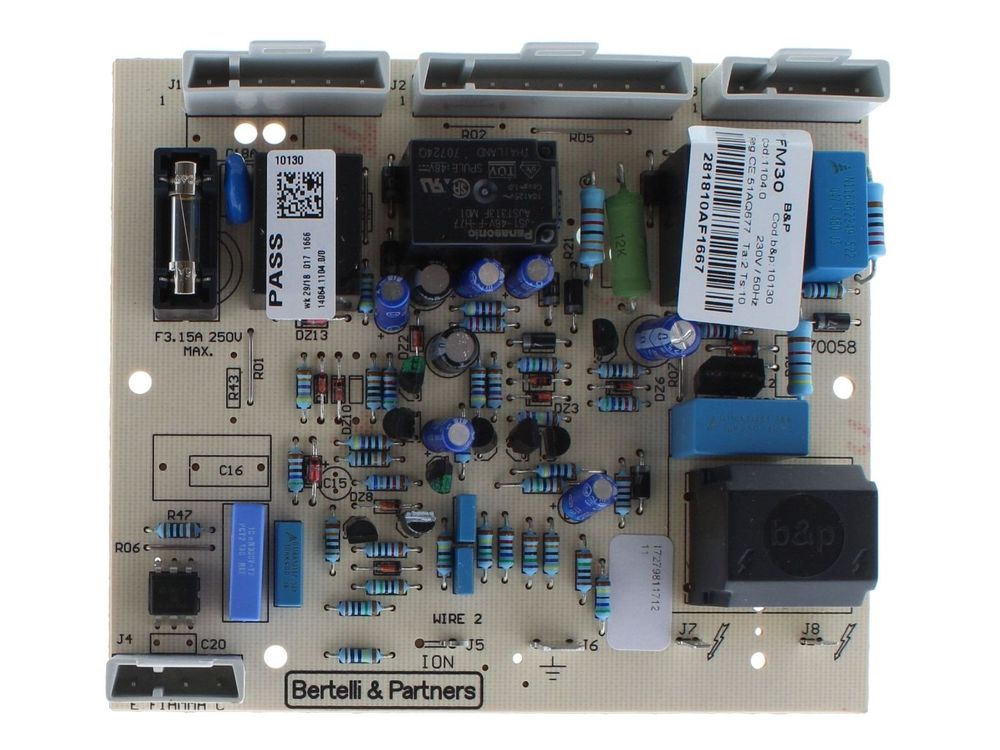

BI1305101 Biasi Printed Circuit Board Full Sequence Control
At a glance
- Part type: Spares - Printed Circuit Boards
- Also known as BIASIBI1305101
£186.00
£155.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Biasi BI1305101 is a full sequence control printed circuit board supplied as a spare for Biasi water heating appliances. It runs the appliance through its start-up sequence, taking the demand signal and stepping through ignition, flame proving and burner operation. The board also manages safety lockout when the sequence does not complete within its permitted time.
Because it controls the order in which the appliance's components are energised, a fault here typically shows as a failure to light, a lockout, or a start-up that stalls partway through. The board is a plug-in style spare and is listed under Biasi's printed circuit board range.
Signs this part needs replacing
- The appliance fails to ignite, or the start-up sequence stalls before the burner fires
- Repeated lockouts with no progression through the fault sequence
- The fan or pump runs on demand but the burner never lights
- No response at all to a call for heat
- Intermittent operation that clears briefly after a power cycle and then returns
Before you order
- Match the number printed on the existing board against BIASIBI1305101
- Note the appliance model and serial number from the data plate
- Isolate the electrical supply before removing the old board
- Photograph the wiring connections and plug positions before removal to aid refitting
Mechanical
| Part type | Spares - Printed Circuit Boards |
|---|
Compliance
| Manufacturer part number (MPN) | BIASIBI1305101 |
|---|---|
| GC number | E83-142 |
| Commodity code | 8537 10 99 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | BIASIBI1305101, 1650364, N2204 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BIASI BIASI GARDA HE M96-24SM/B | — | — | — | |
| BIASI BIASI GARDA HE M96-24SM/D | — | — | — | |
| BIASI BIASI GARDA HE M96-28SM/B | — | — | — | |
| BIASI BIASI GARDA HE M96-28SM/D | — | — | — | |
| BIASI BIASI GARDA M90E-24S | — | — | — | |
| BIASI BIASI GARDA M90E-28S | — | — | — | |
| BIASI BIASI GARDA M90E-32S | — | — | — | |
| BIASI BIASI GARDA M90F-24S | — | — | — | |
| BIASI BIASI GARDA M90F-24SR | — | — | — | |
| BIASI BIASI GARDA M90F-28S | — | — | — |
Showing 10 of 54 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BIASI appliance manual — GARDA HE M96.24SM/B (GC 47-970-25), GARDA HE M96.24SM/D (GC 47-970-27), GARDA HE M96.28SM/B (GC 47-970-26), GARDA HE M96.28SM/D (GC 47-970-28)
manualmanualBIASI appliance manual — GARDA M90F.24S (GC 47-970-19), GARDA M90F.24SR (GC 41-970-10), GARDA M90F.28S (GC 47-970-20), GARDA M90F.28SR (GC 41-970-11), GARDA M90F.32S (GC 47-970-22)
manualmanualBIASI appliance manual — PARVA M90 - 24S (GC 47-970-13), PARVA M90 - 24SR (GC 41-970-06), PARVA M90 - 28S (GC 47-970-14), PARVA M90 - 28SR (GC 41-970-07)
manualmanualBIASI appliance manual — RIVA COMPACT HE M96.24SM/C (GC 47-970-23), RIVA COMPACT HE M96.28SM/C (GC 47-970-24), RIVA COMPACT HE M96.28SR/C (GC 41-970-12)
manualmanualBIASI appliance manual — RIVA COMPACT M90E.24S (GC 47-970-17), RIVA COMPACT M90E.28S (GC 47-970-18), RIVA COMPACT M90E.32S (GC 47-970-21)
manualmanualBIASI appliance manual — RIVA PLUS M90D.24S (GC 47-970-15), RIVA PLUS M90D.24SR (GC 41-970-08), RIVA PLUS M90D.28S (GC 47-970-16), RIVA PLUS M90D.28SR (GC 41-970-09)
manualNo technical questions yet for this part.
