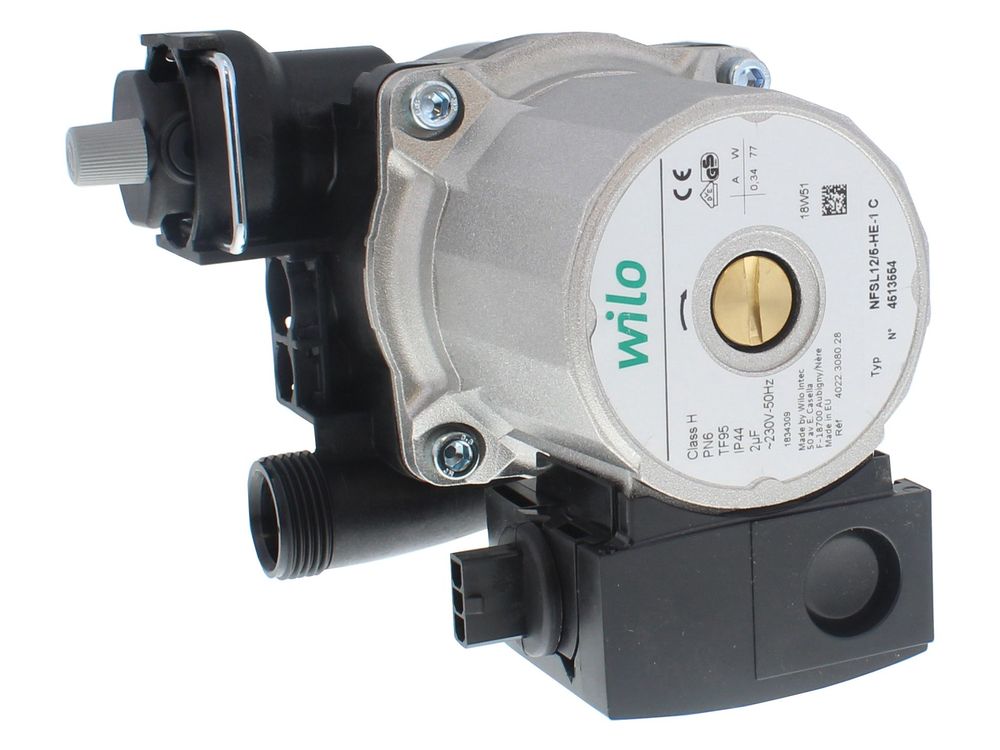

Biasi Pump Assembly M90E Series BI1272100
Biasi BI1272100 complete pump assembly for Garda and Riva Compact M90E/M90F boilers, circulating heating water around the system.
At a glance
- Part type: Pump assembly
- Appliance family: Garda and Riva Compact
- Also known as PUMP-COMP-FROM-024600604-M90E, 1650354
£292.97
£244.14 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Biasi BI1272100 is a complete pump assembly for Biasi gas boilers. It moves heating water from the boiler through the radiators and back, so it sits at the centre of the appliance's circulation circuit. The unit is listed for Garda and Riva Compact models built on the M90E and M90F platforms.
Signs this part needs replacing
- Radiators stay cold while the boiler fires, with little or no heat reaching the system
- The pump runs noisily, with grinding, humming or rumbling from the pump body
- The boiler locks out or overheats shortly after ignition
- Poor or intermittent flow through the heating circuit
- Water weeping from the pump body or its connections
Before you order
- Check the model number on the boiler data badge against the compatibility list below
- Confirm the GC number shown on the appliance matches one of the listed numbers
- Have the part number BI1272100 or the alternative 1650354 to hand when ordering
- Inspect the pump connections and seals on removal, as the mating faces are disturbed during replacement
Mechanical
| Part type | Pump assembly |
|---|
Compliance
| Manufacturer part number (MPN) | BI1272100 |
|---|---|
| GC number | H23-009 |
| Barcode / EAN | 8023585816684 |
| Alternative numbers | PUMP-COMP-FROM-024600604-M90E, 1650354 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BIASI GARDA M90F.24S | 47-970-19 | 47-970-19 | — | — |
| BIASI GARDA M90F.24SR | 41-970-10 | 41-970-10 | — | — |
| BIASI GARDA M90F.28SR | 41-970-11 | 41-970-11 | — | — |
| BIASI RIVA COMPACT M90E.24S | 47-970-17 | 47-970-17 | — | — |
| BIASI RIVA COMPACT M90E.28S | 47-970-18 | 47-970-18 | — | — |
| BIASI RIVA COMPACT M90E.32S | 47-970-21 | 47-970-21 | — | — |
| BIASI RIVA PLUS M90D.24S | 47-970-15 | 47-970-15 | — | — |
| BIASI RIVA PLUS M90D.24SR | 41-970-08 | 41-970-08 | — | — |
| BIASI RIVA PLUS M90D.28S | 47-970-16 | 47-970-16 | — | — |
| BIASI RIVA PLUS M90D.28SR | 41-970-09 | 41-970-09 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BIASI appliance manual — GARDA M90F.24S (GC 47-970-19), GARDA M90F.24SR (GC 41-970-10), GARDA M90F.28SR (GC 41-970-11)
manualmanualBIASI appliance manual — RIVA COMPACT M90E.24S (GC 47-970-17), RIVA COMPACT M90E.28S (GC 47-970-18), RIVA COMPACT M90E.32S (GC 47-970-21)
manualmanualBIASI appliance manual — RIVA PLUS M90D.24S (GC 47-970-15), RIVA PLUS M90D.24SR (GC 41-970-08), RIVA PLUS M90D.28S (GC 47-970-16), RIVA PLUS M90D.28SR (GC 41-970-09)
manualNo technical questions yet for this part.
