Biasi

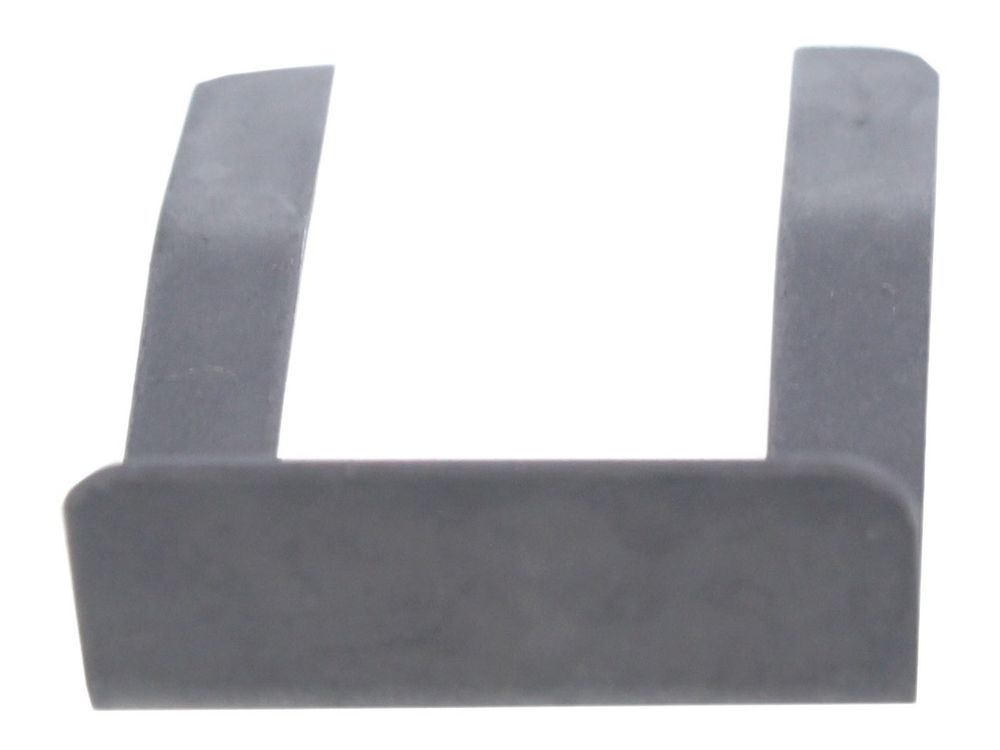

Biasi Diverter Valve Actuator Fixing Spring BI1101101
Fixing spring for the diverter valve actuator on Biasi gas boilers, part number BI1101101.
At a glance
- Part type: fixing spring for the diverter valve actuator
- Also known as 3-WAY-VALVE-CLIP, 1650215
Showing prices
£1.46
£1.22 ex. VAT · VAT at 20%
Available to order · 1 working day
Available to order · 1 working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Biasi BI1101101 is a fixing spring for the diverter valve actuator on Biasi gas boilers. It retains and tensions the actuator linkage so the diverter valve moves correctly between heating and hot water modes. The spring is a small wear item within the diverter valve assembly.
Signs this part needs replacing
- The diverter valve does not switch cleanly between heating and hot water
- The actuator arm fails to return to its rest position
- The valve sticks in one position, leaving heating or hot water permanently on
- Hot water demand is intermittent or the boiler responds slowly to a tap being opened
- The spring is visibly stretched, distorted or broken when the actuator is inspected
Before you order
- Check the boiler model against the fit list above to confirm compatibility
- Confirm the existing part number BI1101101 or the alternative code 3WAYVALVECLIP
- Inspect the actuator and valve body to establish whether the spring alone is at fault or the complete actuator is required
- Compare the old spring against the replacement before fitting
Compliance
| GC number | E83-090 |
|---|---|
| Barcode / EAN | 8023585807293 |
| Alternative numbers | 3-WAY-VALVE-CLIP, 1650215 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BIASI GARDA HE M96.24SM/B | 47-970-25 | 47-970-25 | — | — |
| BIASI GARDA HE M96.24SM/B2 | 47-583-03A | 47-583-03A | — | — |
| BIASI GARDA HE M96.24SM/D | 47-970-27 | 47-970-27 | — | — |
| BIASI GARDA HE M96.24SM/D2 | 47-583-03B | 47-583-03B | — | — |
| BIASI GARDA HE M96.28SM/B | 47-970-26 | 47-970-26 | — | — |
| BIASI GARDA HE M96.28SM/B2 | 47-583-04A | 47-583-04A | — | — |
| BIASI GARDA HE M96.28SM/D | 47-970-28 | 47-970-28 | — | — |
| BIASI GARDA HE M96.28SM/D2 | 47-583-04B | 47-583-04B | — | — |
| BIASI GARDA HE PLUS M110.24SM/E | 47-970-31 | 47-970-31 | — | — |
| BIASI GARDA HE PLUS M110.32SM/E | 47-970-32 | 47-970-32 | — | — |
Showing 10 of 35 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
BIASI appliance manual — GARDA HE M96.24SM/B (GC 47-970-25), GARDA HE M96.24SM/D (GC 47-970-27), GARDA HE M96.28SM/B (GC 47-970-26), GARDA HE M96.28SM/D (GC 47-970-28)
manualmanualBIASI appliance manual — GARDA HE M96.24SM/B2 (GC 47-583-03A), GARDA HE M96.24SM/D2 (GC 47-583-03B), GARDA HE M96.28SM/B2 (GC 47-583-04A), GARDA HE M96.28SM/D2 (GC 47-583-04B)
manualmanualBIASI appliance manual — GARDA HE PLUS M110.24SM/E (GC 47-970-31), GARDA HE PLUS M110.32SM/E (GC 47-970-32)
manualmanualBIASI appliance manual — GARDA M110B.24SM/E (GC 47-583-13), GARDA M110B.32SM/E (GC 47-583-14)
manualmanualBIASI appliance manual — GARDA M90F.24S (GC 47-970-19), GARDA M90F.28S (GC 47-970-20), GARDA M90F.32S (GC 47-970-22)
manualmanualBIASI appliance manual — PARVA HE M96.24SM/P (GC 47-583-08), PARVA HE M96.28SM/P (GC 47-583-09), PARVA HE M96.32SM/P (GC 47-583-10)
manualmanualBIASI appliance manual — PARVA M90 - 24S (GC 47-970-13), PARVA M90 - 28S (GC 47-970-14)
manualmanualBIASI appliance manual — RINNOVA ADAPTIVE M300V.2025 SM (GC 47-583-46), RINNOVA ADAPTIVE M300V.2530 SM (GC 47-583-47), RINNOVA ADAPTIVE M300V.3035 SM (GC 47-583-48)
manualmanualBIASI appliance manual — RIVA ADVANCE HE M110.24SM/C (GC 47-970-29), RIVA ADVANCE HE M110.32SM/C (GC 47-970-30)
manualmanualBIASI appliance manual — RIVA ADVANCE HE M110B.24SM/C (GC 47-583-11), RIVA ADVANCE HE M110B.32SM/C (GC 47-583-12)
manualmanualBIASI appliance manual — RIVA COMPACT HE M96.24SM/C (GC 47-970-23), RIVA COMPACT HE M96.28SM/C (GC 47-970-24)
manualmanualBIASI appliance manual — RIVA COMPACT HE M96.28SM/C2 (GC 47-583-06)
manualmanualBIASI appliance manual — RIVA COMPACT M90E.24S (GC 47-970-17), RIVA COMPACT M90E.28S (GC 47-970-18), RIVA COMPACT M90E.32S (GC 47-970-21)
manualmanualBIASI appliance manual — RIVA PLUS M90D.24S (GC 47-970-15), RIVA PLUS M90D.28S (GC 47-970-16)
manualNo technical questions yet for this part.
