Biasi

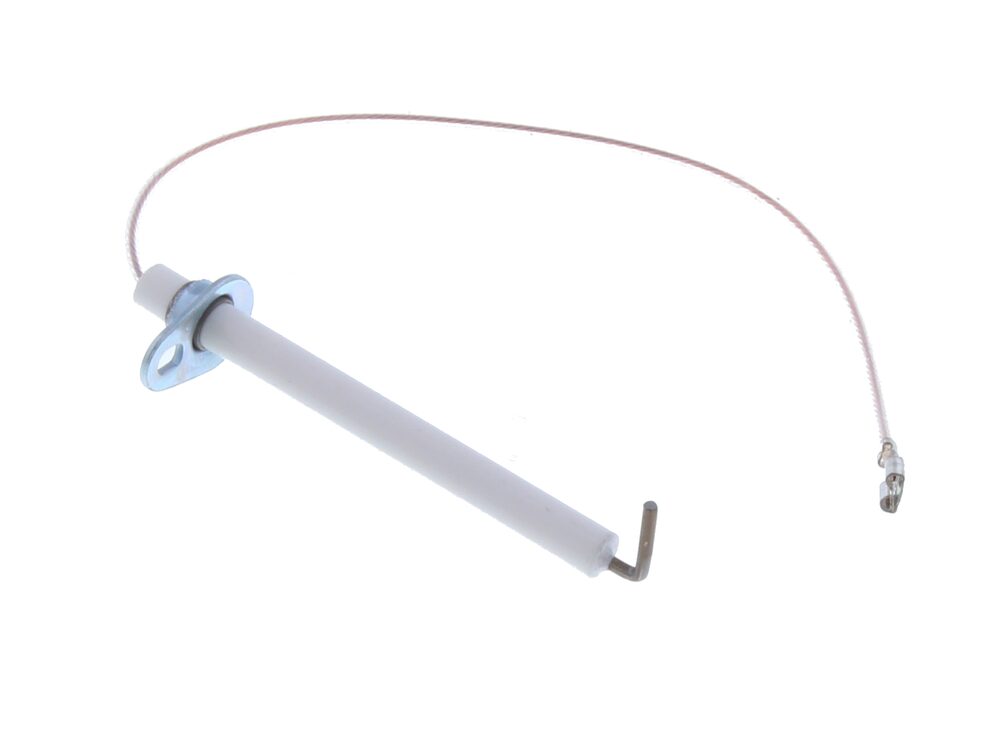

Biasi Detection Electrode BI1013102
Detection electrode for Biasi gas boilers, part number BI1013102, used to sense flame presence in the burner.
At a glance
- Part type: detection electrode
- Also known as 1650098
- If unsure, have the part checked and fitted by a Gas Safe registered engineer
£16.48
£13.73 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Biasi BI1013102 is a detection electrode for Biasi gas boilers. It is fitted in the burner area and provides the flame sensing signal used by the boiler controls to confirm that ignition has taken place and that the burner is running safely. This part is listed for the Biasi appliance families shown below.
Signs this part needs replacing
- Boiler locks out shortly after the burner lights
- Repeated ignition failure or lockout with no other fault found
- Intermittent flame detection causing the boiler to cycle or shut down
- Flame signal lost during operation, triggering a safety shutdown
- Visible damage, corrosion or contamination on the electrode tip
Before you order
- Confirm your boiler model and GC number against the fitment list above
- Check that the part number on the existing electrode matches BI1013102
- Note that BG1013102 is a superseded code for this part
- If unsure, have the part checked and fitted by a Gas Safe registered engineer
Compliance
| GC number | E01-166 |
|---|---|
| Barcode / EAN | 8023585802649 |
| Alternative numbers | 1650098 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BIASI 24S | 47-970-10 | 47-970-10 | — | — |
| BIASI 24SR | 41-970-05 | 41-970-05 | — | — |
| BIASI 28S | 47-970-11 | 47-970-11 | — | — |
| BIASI BIASI 24S | — | — | — | |
| BIASI BIASI 24SR | — | — | — | |
| BIASI BIASI 28S | — | — | — | |
| BIASI BIASI PRISMA 24 SER | — | — | — | |
| BIASI BIASI PRISMA 24SE | — | — | — | |
| BIASI BIASI PRISMA 28SE | — | — | — | |
| BIASI BIASI SAVIO GAIA 424S | — | — | — |
Showing 10 of 24 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BIASI appliance manual — 24S (GC 47-970-10), 24SR (GC 41-970-05), 28S (GC 47-970-11)
manualmanualBIASI appliance manual — GAIA 424RS (GC 41-970-04), GAIA 424S (GC 47-970-08), GAIA 428S (GC 47-970-09)
manualmanualBIASI appliance manual — PRISMA 24SE (GC 47-970-04), PRISMA 24SER (GC 41-970-02), PRISMA 28SE (GC 47-970-05)
manualNo technical questions yet for this part.
