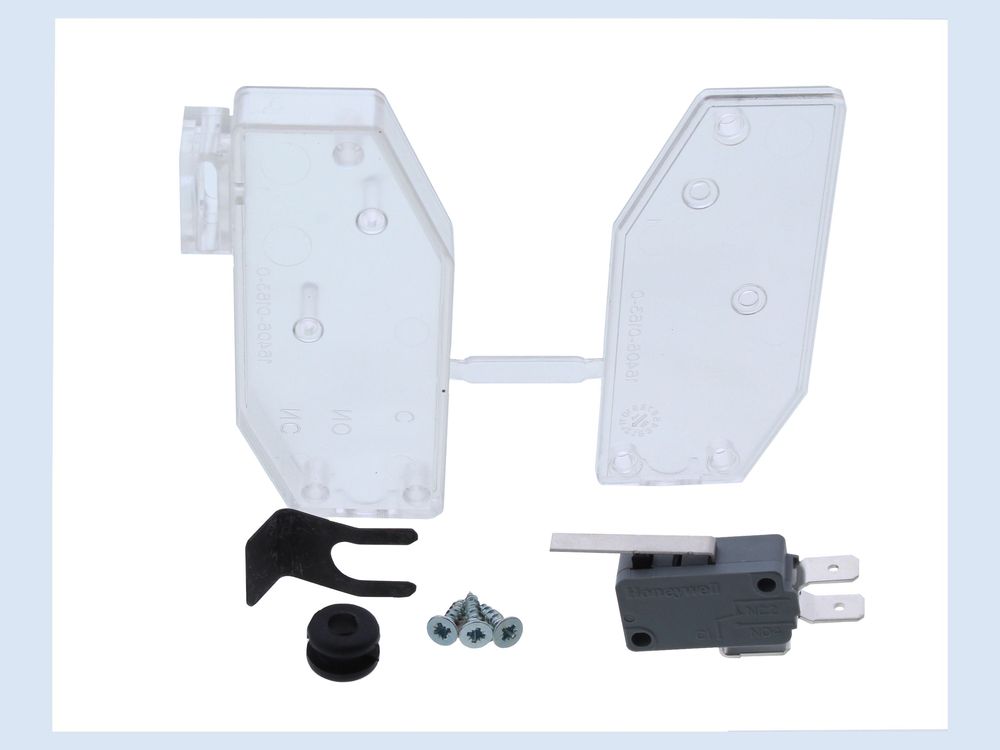

Biasi Microswitch Kit BI1011505
Microswitch kit for Biasi gas boilers, used to make and break electrical contacts in response to mechanical movement.
At a glance
- Also known as 1650094
Showing prices
£24.49
£20.41 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Biasi BI1011505 is a microswitch kit intended for use in Biasi gas boilers. It provides the switching contacts that respond to mechanical movement within the appliance, such as a lever, cam or actuator operating a fan, pump or valve circuit. The kit supersedes the earlier code BG1011505.
Signs this part needs replacing
- The boiler fails to fire or respond when there is a demand for heat or hot water.
- Operation is intermittent, with the appliance cutting in and out without a clear pattern.
- The switch contacts show burning, pitting or discolouration.
- The actuator no longer produces a clean click, or the lever feels loose or stiff.
- Fault-finding points to a switching circuit that is not making or breaking correctly.
Before you order
- Confirm your boiler model against the fitment list above, as the kit covers a large number of Biasi appliances.
- Check the existing part number on the appliance, including the earlier BG1011505 code, before ordering.
- Inspect the switch mounting and actuator arrangement so the replacement matches what is fitted.
- Isolate the electrical supply and follow the manufacturer's instructions before removing any component.
Compliance
| GC number | E00-684 |
|---|---|
| Barcode / EAN | 8023585802571 |
| Alternative numbers | 1650094 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BIASI 24S | 47-970-10 | 47-970-10 | — | — |
| BIASI 24SR | 41-970-05 | 41-970-05 | — | — |
| BIASI 28S | 47-970-11 | 47-970-11 | — | — |
| BIASI BIASI 24S | — | — | — | |
| BIASI BIASI 24SR | — | — | — | |
| BIASI BIASI 28S | — | — | — | |
| BIASI BIASI GARDA HE M96-24SM/B | — | — | — | |
| BIASI BIASI GARDA HE M96-24SM/D | — | — | — | |
| BIASI BIASI GARDA HE M96-28SM/B | — | — | — | |
| BIASI BIASI GARDA HE M96-28SM/D | — | — | — |
Showing 10 of 101 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
BIASI appliance manual — 24S (GC 47-970-10), 24SR (GC 41-970-05), 28S (GC 47-970-11)
manualmanualBIASI appliance manual — GAIA 424RS (GC 41-970-04), GAIA 424S (GC 47-970-08), GAIA 428S (GC 47-970-09)
manualmanualBIASI appliance manual — GARDA HE M96.24SM/B (GC 47-970-25), GARDA HE M96.24SM/D (GC 47-970-27), GARDA HE M96.28SM/B (GC 47-970-26), GARDA HE M96.28SM/D (GC 47-970-28)
manualmanualBIASI appliance manual — GARDA HE M96.24SM/B2 (GC 47-583-03A), GARDA HE M96.24SM/D2 (GC 47-583-03B), GARDA HE M96.28SM/B2 (GC 47-583-04A), GARDA HE M96.28SM/D2 (GC 47-583-04B)
manualmanualBIASI appliance manual — GARDA HE PLUS M110.24SM/E (GC 47-970-31), GARDA HE PLUS M110.32SM/E (GC 47-970-32)
manualmanualBIASI appliance manual — GARDA M110B.24SM/E (GC 47-583-13), GARDA M110B.32SM/E (GC 47-583-14)
manualmanualBIASI appliance manual — GARDA M90F.24S (GC 47-970-19), GARDA M90F.24SR (GC 41-970-10), GARDA M90F.28S (GC 47-970-20), GARDA M90F.28SR (GC 41-970-11), GARDA M90F.32S (GC 47-970-22)
manualmanualBIASI appliance manual — PARVA HE M96.24SM/P (GC 47-583-08), PARVA HE M96.28SM/P (GC 47-583-09), PARVA HE M96.32SM/P (GC 47-583-10)
manualmanualBIASI appliance manual — PARVA HE M96.28SR/P (GC 41-583-05), PARVA HE M96.32SR/P (GC 47-583-06)
manualmanualBIASI appliance manual — PARVA M90 - 24S (GC 47-970-13), PARVA M90 - 24SR (GC 41-970-06), PARVA M90 - 28S (GC 47-970-14), PARVA M90 - 28SR (GC 41-970-07)
manualmanualBIASI appliance manual — PRISMA 24SE (GC 47-970-04), PRISMA 24SER (GC 41-970-02), PRISMA 28SE (GC 47-970-05)
manualmanualBIASI appliance manual — RIVA ADVANCE HE M110.24SM/C (GC 47-970-29), RIVA ADVANCE HE M110.32SM/C (GC 47-970-30)
manualmanualBIASI appliance manual — RIVA ADVANCE HE M110B.24SM/C (GC 47-583-11), RIVA ADVANCE HE M110B.32SM/C (GC 47-583-12)
manualmanualBIASI appliance manual — RIVA ADVANCE HE M110B.24SR/C (GC 41-583-07)
manualmanualBIASI appliance manual — RIVA COMPACT HE M96.24SM/C (GC 47-970-23), RIVA COMPACT HE M96.28SM/C (GC 47-970-24), RIVA COMPACT HE M96.28SR/C (GC 41-970-12)
manualmanualBIASI appliance manual — RIVA COMPACT HE M96.24SR/C2 (GC 41-583-08), RIVA COMPACT HE M96.28SR/C2 (GC 41-583-02)
manualmanualBIASI appliance manual — RIVA COMPACT HE M96.28SM/C2 (GC 47-583-06)
manualmanualBIASI appliance manual — RIVA COMPACT HE M96A.24SR/C (GC 41-583-09), RIVA COMPACT HE M96A.28SR/C (GC 41-583-10)
manualmanualBIASI appliance manual — RIVA COMPACT M90E.24S (GC 47-970-17), RIVA COMPACT M90E.28S (GC 47-970-18), RIVA COMPACT M90E.32S (GC 47-970-21)
manualmanualBIASI appliance manual — RIVA PLUS M90D.24S (GC 47-970-15), RIVA PLUS M90D.24SR (GC 41-970-08), RIVA PLUS M90D.28S (GC 47-970-16), RIVA PLUS M90D.28SR (GC 41-970-09)
